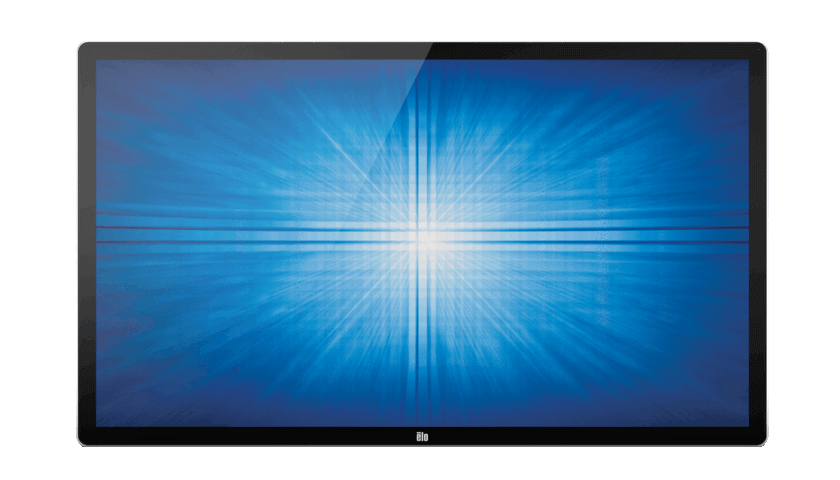

Elo 4602L 46-inch Interactive Digital Signage Display – 4602L

The Elo 4602L is a 46-inch interactive digital signage display offered with PCAP or infrared touch, on a 1920 x 1080 LCD. It suits meeting rooms, classrooms and public-facing brand experiences, with 500 nits brightness and 4,000:1 contrast. The manufacturer has replaced it with the 5053L. Procure.ae can confirm availability of this model in the UAE.

The 4602L is sold in two touch variants. The PCAP version supports 12 simultaneous touches and the infrared version supports 20. Both use a 46-inch LCD with 1920 x 1080 resolution at 60 Hz, 500 nits LCD brightness and a 4,000:1 contrast ratio. The 6.5 ms response time keeps touch and video transitions responsive. The display runs 24 hours a day with a 178-degree viewing angle, and four 5 W stereo speakers provide audio.

The panel offers VGA, two HDMI inputs and a DisplayPort input, with an RJ45 port for the optional on-screen display remote and a GPIO connector. The USB type B port carries touch data to the connected computer. The unit mounts on a 400 x 400 mm VESA pattern, and the manufacturer lists an optional extended warranty for North America and EMEA.

Screen Size

46 inch

Resolution

1920 x 1080 (Full HD)

Brightness

500 nits

Touch Technology

PCAP (12-point) or infrared (20-point), by variant

Type

Interactive Digital Signage Display

Key features

PCAP or infrared touch

PCAP with 12 touches or infrared with 20 touches, by variant.

Full HD display

1920 x 1080 resolution at 60 Hz with 500 nits LCD brightness.

High contrast

4,000:1 contrast ratio and 6.5 ms response time.

Continuous operation

rated for 24 hours a day in portrait or landscape mode.

Multiple video inputs

VGA, two HDMI and a DisplayPort input.

RFID support

ISO 14443-A, ISO 14443-B and ISO 15693 protocols.

Built-in stereo speakers

4 x 5 W stereo speakers and 3.5 mm audio in and out.

VESA mounting

400 x 400 mm VESA mount per MIS-F.

Specifications

General
Key Features	PCAP or infrared touch by variant, 1920 x 1080 display, 500 nits, 4,000:1 contrast, 6.5 ms response, 24-hour operation, RFID support, 400 x 400 mm VESA
Model	4602L
Type	Interactive Digital Signage Display
What's in the Box	HDMI cable, USB cable (type A to type B), power cable, 3.5 mm audio cable, energy label

Display
Aspect Ratio	16:9
Brightness	500 nits
Contrast Ratio	4,000:1
Panel Technology	TFT LCD (LED)
Resolution	1920 x 1080 (Full HD)
Response Time	6.5 ms
Screen Size	46 inch
Touch Technology	PCAP (12-point) or infrared (20-point), by variant
Viewing Angle	178° (horizontal and vertical)

Audio
Speaker Output	4 × 5 W stereo

Connectivity
Input Voltage	100–240 V AC, 50/60 Hz
Ports	VGA × 1, HDMI × 2, DisplayPort × 1, USB type B (touch) × 1, GPIO, audio line in, headphone out, RJ45 (optional OSD remote)
Touch USB Ports	USB type B × 1

Power
Power Consumption	95.0 W on (120 V, 60 Hz), monitor only

Physical
Color	Black
Duty Cycle	24 hours per day
Operating Humidity	20% to 80% RH
Operating Temperature	0 to 40 °C (portrait and landscape)
VESA Mount	400 x 400 mm

Compliance
Certifications	UL, FCC Class A, cUL, IC, CB, CE Class A, CCC, EAC, VCCI
Warranty	3 years
