ELO · E143391 · Interactive Flat Panel

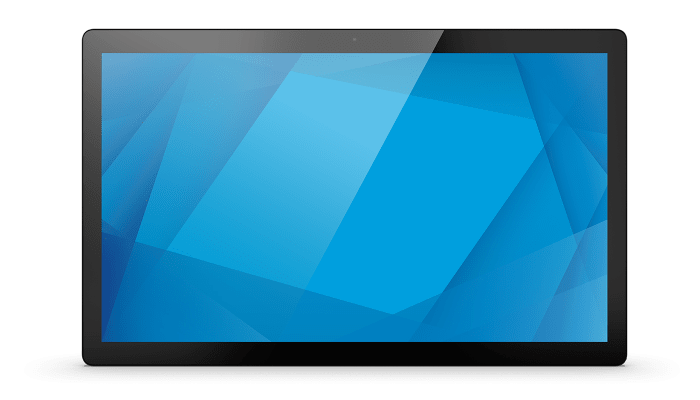

ELO 22-inch I-Series with Linux

ELO 22-inch I-Series with Linux

The ELO 22-inch I-Series with Linux is a interactive flat panel available in the UAE from Procure.ae.

The ELO 22-inch I-Series with Linux (SKU: E143391) is designed for businesses seeking a powerful all-in-one touchscreen solution. With its expansive 22-inch touchscreen display , this device offers exceptional clarity and seamless interactivity, making it perfect for retail, hospitality, healthcare, and self-service applications. The integrated Linux operating system ensures robust performance, enhanced security, and easy customization for business-specific needs. Its sleek, modern design fits effortlessly into any environment while delivering the reliability ELO is known for. The I-Series.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Screen Size
22 inch
Resolution
1920 x 1080 (Full HD)
Touch Technology
PCAP
Weight
4.3 kg

Key features

01
22-inch Full HD Touchscreen
Delivers vivid visuals and responsive touch for interactive applications.
02
Pre-installed Linux OS
Offers stability, security, and open-source flexibility for business customization.
03
Sleek All-in-One Design
Space-saving, modern look suitable for any commercial environment.
04
Multi-touch Support
Enables up to 10 simultaneous touch points for engaging user experiences.
05
Fanless Silent Operation
Ensures quiet performance, ideal for public spaces and customer areas.
06
Durable Commercial Build
Engineered for high-traffic use with robust materials and construction.
07
Flexible Mounting Options
Compatible with VESA mounts for wall, stand, or kiosk installations.
08
Comprehensive Connectivity
Includes USB, HDMI, LAN, and serial ports for device integration.

Specifications

General
What's in the BoxQuick Install Guide, Screws for cable cover door
Display
BacklightLED
Camera5 MP
Color Depth8-bit (16.7 million colours)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Screen Size22 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
Viewing Angle170° (H) / 160° (V)
Performance
Operating SystemLinux
ProcessorRockchip RK3399
RAM4 GB
Storage32 GB
Audio
Microphone1 analog mic
Speaker Output2 × 2 W
Speaker TypeBuilt-in
Connectivity
BluetoothBluetooth 5.0
EthernetRJ45 (Gigabit) × 1
SD Card SlotmicroSD card slot × 1
USB PortsUSB 3.0 × 1
USB-C PortsUSB-C Out × 1
Wi-FiWi-Fi 5 (802.11ac)
Power
Power Consumption14.49 W
Standby Power0.32 W
Physical
Dimensions524.8 x 324.8 x 29.7 mm
Operating Humidity20% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions600 x 168 x 406 mm
VESA Mount75 x 75, 100 x 100 mm
Weight4.3 kg
Compliance
Warranty2 years
