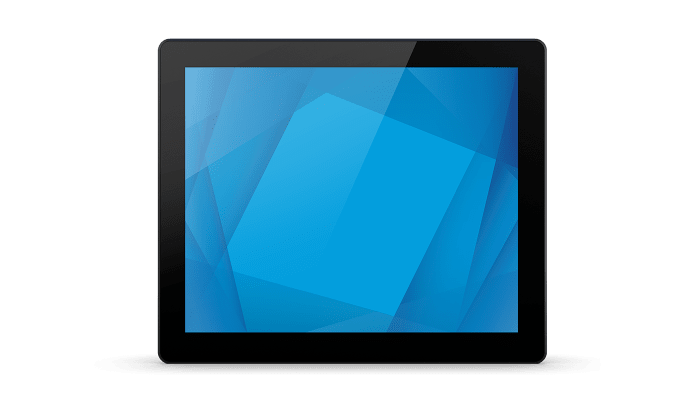

ELO 1790L 17" Open Frame Touchscreen IntelliTouch (Worldwide)

The ELO 1790L 17" Open Frame Touchscreen IntelliTouch (Worldwide) is a interactive flat panel available in the UAE from Procure.ae.

Experience seamless interaction and reliable performance with the ELO 1790L 17" Open Frame Touchscreen IntelliTouch – a leading choice for businesses seeking high-quality touchscreen monitors . Designed for global compatibility, this advanced open frame display is engineered with IntelliTouch surface acoustic wave technology , ensuring precise and responsive touch input . Its rugged construction makes it ideal for kiosk , retail , and industrial applications , offering both durability and modern aesthetics. The 17-inch screen provides bright, clear visuals with wide viewing angles, perfect.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Screen Size

17 inch

Resolution

1280 x 1024 (SXGA)

Brightness

250 nits

Touch Technology

PCAP / SAW / Resistive

Weight

3.6 kg

Key features

IntelliTouch Surface Acoustic Wave Technology

Provides superior touch accuracy and reliability for consistent user interaction.

17" Open Frame Design

Easily integrates into kiosks, gaming machines, and industrial enclosures.

Worldwide Compatibility

Built for global deployment with multi-voltage support and international certifications.

Durable Construction

Robust build ensures long-lasting performance in high-traffic environments.

Bright, Clear Display

High-resolution screen with wide viewing angles enhances visibility and user engagement.

Flexible Mounting Options

Supports various mounting configurations for easy installation.

Responsive Touch Input

Accurate single and multi-touch gestures for interactive applications.

Energy Efficient

Low power consumption for cost-effective operation.

Specifications

General
What's in the Box	HDMI Cable, VGA Cable, Touch USB Cable, OSD Remote, Quick Install Guide, EEI Label, Flush Mount Brackets w/Screws

Display
Backlight	LED
Brightness	250 nits
Color Depth	8-bit (16.7 million colours)
Refresh Rate	60 Hz
Resolution	1280 x 1024 (SXGA)
Screen Size	17 inch
Touch Points	10-point multi-touch
Touch Response Time	5 ms
Touch Technology	PCAP / SAW / Resistive
Viewing Angle	178° (H) / 178° (V)

Connectivity
HDMI Inputs	HDMI In × 1
Serial Port	RS-232 × 1
Touch USB Ports	Touch USB × 1
VGA Input	VGA × 1

Power
Power Consumption	9.9 W
Standby Power	0.5 W

Physical
Dimensions	368.4 x 306.4 x 47.5 mm
Operating Humidity	20% to 80% RH
Operating Temperature	0°C to 40°C
Shipping Dimensions	476 x 418 x 183 mm
Surface Protection	Anti-glare
VESA Mount	100 x 100 mm
Weight	3.6 kg

Compliance
Warranty	3 years
