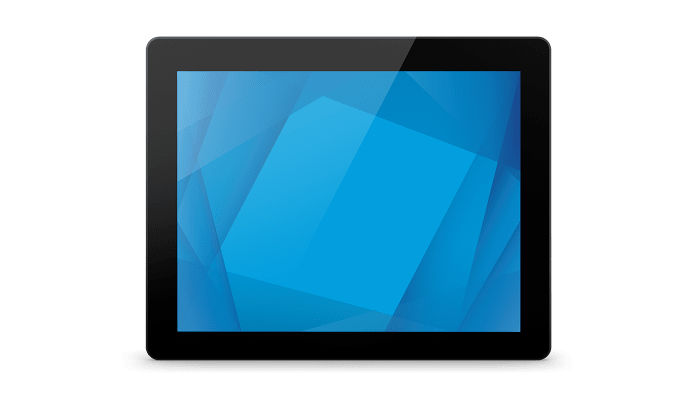

ELO 1590L 15" Open Frame Touchscreen TouchPro PCAP with Bezel (Worldwide)

The ELO 1590L 15" Open Frame Touchscreen TouchPro PCAP with Bezel (Worldwide) is a interactive flat panel available in the UAE from Procure.ae.

The ELO 1590L 15" Open Frame Touchscreen is an ideal solution for businesses seeking reliable and versatile interactive display technology. Designed with TouchPro PCAP technology and a robust bezel, this open frame touchscreen offers fast, accurate, and responsive touch performance. The 15-inch screen size makes it perfect for point-of-sale , kiosk , gaming , and industrial automation applications. Its open frame design ensures seamless integration into both new and existing enclosures, making it a favorite among system integrators and OEMs. The ELO 1590L is engineered for worldwide.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Screen Size

15 inch

Resolution

1024 x 768 (XGA)

Brightness

300 nits

Touch Technology

PCAP / SAW / Resistive

Weight

2.9 kg

Key features

15" Touch Display

Optimal size for a wide range of commercial and industrial applications.

TouchPro PCAP Technology

Delivers highly responsive and accurate 10-touch capability.

Open Frame Design

Easily integrates into kiosks, gaming machines, and information terminals.

Bezel Construction

Provides additional protection and a sleek, finished appearance.

Worldwide Compatibility

Supports global power standards and multiple input options.

Energy-Efficient LED Backlighting

Reduces power consumption while offering vibrant display quality.

Flexible Mounting Options

Includes VESA and side mounting for versatile installation.

Durable Build Quality

Built to withstand continuous public use and harsh environments.

Specifications

General
What's in the Box	HDMI Cable, VGA Cable, Touch USB Cable, OSD Remote, Quick Install Guide, EEI Label, Flush Mount Brackets w/Screws

Display
Backlight	LED
Brightness	300 nits
Color Depth	8-bit (16.7 million colours)
Refresh Rate	60 Hz
Resolution	1024 x 768 (XGA)
Screen Size	15 inch
Touch Points	10-point multi-touch
Touch Response Time	23 ms
Touch Technology	PCAP / SAW / Resistive
Viewing Angle	160° (H) / 150° (V)

Connectivity
HDMI Inputs	HDMI In × 1
Serial Port	RS-232 × 1
Touch USB Ports	Touch USB × 1
VGA Input	VGA × 1

Power
Power Consumption	12.5 W
Standby Power	≤ 0.5 W

Physical
Dimensions	358 x 284.9 x 35.6 mm
Operating Humidity	20% to 80% RH
Operating Temperature	0°C to 40°C
Shipping Dimensions	434 x 375 x 175 mm
Surface Protection	Anti-glare
VESA Mount	100 x 75 mm
Weight	2.9 kg

Compliance
Warranty	3 years
