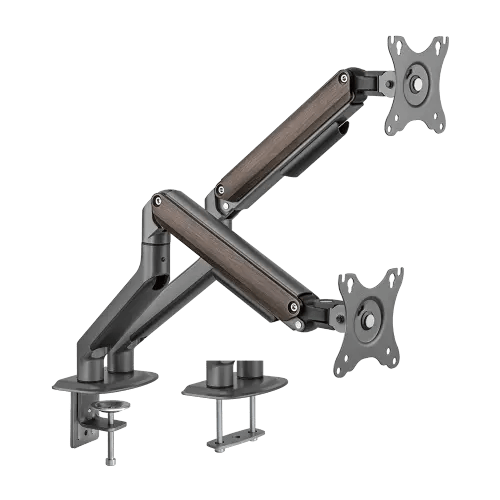

VSYS VMAE-C024 Spring-Assisted Dual Monitor Arm for 17"–32" Monitors, 9 kg per Screen

VSYS VMAE-C024 Spring-Assisted Dual Monitor Arm for 17"–32" Monitors, 9 kg per Screen

The VSYS VMAE-C024 is a spring-assisted dual monitor arm that carries two 17"–32" screens of 2 to 9 kg each on a single desk clamp, with each arm adjusting independently, available in the UAE from Procure.ae.

Two factory stands on one desk consume most of the usable depth and force the screens into whatever heights the two stands happen to give, which is rarely the same height when the monitors are different models. The VMAE-C024 replaces both stands with one clamped base carrying two arms. The desk depth comes back, the two panels can be brought to a matched top edge, and the whole pair can be pushed away or pulled forward as one working plane.

Each arm has its own spring counterbalance and its own tension screw, tuned separately across the 2 to 9 kg range, so a heavy primary display and a lighter secondary screen both hold position. Each arm reaches up to 453 mm from the base with a 133 mm to 428 mm height range, tilts plus or minus 55 degrees, swivels plus or minus 90 degrees and rotates plus or minus 180 degrees. A rotation stop on each arm keeps the two screens from swinging into each other or into a partition.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Spring-Assisted Dual Monitor Arm

Key features

01
Two arms share one desk clamp or grommet point, so a dual-screen station needs a single fixing rather than two stand footprints.
02
Each arm counterbalances and tensions separately across 2 to 9 kg, so mismatched monitor models can still be aligned to a common top edge.
03
Independent height, tilt and depth per screen supports the usual split of one primary work screen and one angled reference screen.
04
Rotation stop on each arm prevents the two panels colliding or striking a partition in a tight back-to-back desk cluster.
05
Reach of up to 453 mm per arm lets both screens be pushed back to a comfortable viewing distance, which matters more with two panels than one.
06
Rotation of plus or minus 180 degrees allows one screen to run portrait for code, documents or long dashboards while the other stays landscape.
07
Quick-release joints on both arms shorten installation across a floor of dual-screen desks and keep the carton compact for volume freight.
08
Cable routing along each arm keeps two sets of video and power leads separated and tidy as the screens move.
09
Desk clamp for 10 to 80 mm surfaces and a grommet mount for 10 to 40 mm both included; no additional parts to specify.
10
Steel and aluminium construction, powder-coated, RoHS compliant, in Space Grey, Matte Silver or Space Grey with wood.

Specifications

General
CompatibilityTwo VESA monitors 17 inch to 32 inch, 75x75 mm or 100x100 mm
Key FeaturesIntegrated cable routing along each arm
ModelVMAE-C024
TypeSpring-Assisted Dual Monitor Arm
What's in the BoxBoth arms, Two detachable VESA plates, Desk clamp, Grommet mount, Installation instructions
Display
Supported Screen Sizes17-32" (per screen)
Physical
AdjustabilityTilt, swivel, rotation, height
ExtensionUp to 453 mm from base per arm
FinishSpace Grey, Matte Silver, Space Grey and wood
Height Range133-428 mm per arm
Load Capacity2 kg to 9 kg per screen
MaterialSteel and aluminium, powder-coated
MountingSingle desk clamp 10-80 mm or grommet mount 10-40 mm, both supplied
Rotation+/-180°, per arm, with rotation stop
Swivel+/-90°, per arm
Tilt-55 to +55°, per arm
VESA Mount75 x 75, 100 x 100 mm (two detachable VESA plates)
Compliance
CertificationsRoHS
