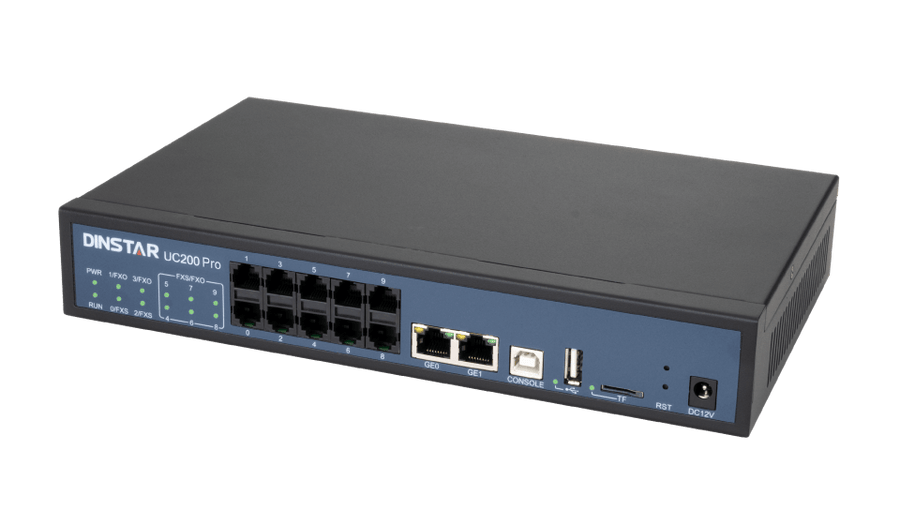

Dinstar UC200 Pro IP PBX

The Dinstar UC200 Pro IP PBX is a voip & telephony available in the UAE from Procure.ae.

The Dinstar UC200 Pro is a feature-rich, enterprise-grade IP PBX engineered for small and medium-sized businesses. Supporting up to 500 SIP extensions and 50 concurrent calls, it delivers robust unified communications in a compact, cost-effective package — with no annual licensing fees.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type

IP PBX

Weight

1.1 kg

Key features

Affordable Upfront

Cost-effective IP PBX and IP phones. No annual or recurring licensing fees.

Slashed Communication Costs

Free internal calls and low-cost external calls via SIP trunks.

Reduced Installation & Maintenance

Easy remote management and remote bulk firmware upgrades.

Retain Legacy Equipment

Keep using analog phones, fax, and legacy PBX via VoIP gateways.

Attack defense

Fail2ban, whitelist, blacklist, ACL

TLS, SRTP, and ZRTP encryption

Multi-level user permission management

Built-in IP firewall against malicious attacks

Specifications

General
Type	IP PBX

Audio
Audio Codecs	G.711 A/μ, G.723.1, G.729 A/B, G.726, Opus, G.722

Connectivity
Concurrent Calls	Up to 50 concurrent calls (25 in full recording mode)
Connectivity	Gigabit Ethernet, 2 x FXS, 2 x FXO
Ethernet	2 x Gigabit Ethernet (RJ45)
Expansion	Up to 3 modules (2S/2O/1S1O)
Input Voltage	100-240 V AC, 50/60 Hz (12 V DC, 2 A adapter output)
Protocols	SIP over UDP/TCP/TLS, RTP/SRTP/ZRTP, T.38 fax
SD Card Slot	microSD card slot × 1
SIP Accounts	500 SIP extensions
USB Ports	USB 2.0 × 1

Power
Power Consumption	10 W

Physical
Dimensions	260 x 154 x 42 mm
Operating Humidity	10% to 90% RH (non-condensing)
Operating Temperature	0°C to 45°C
Weight	1.1 kg
