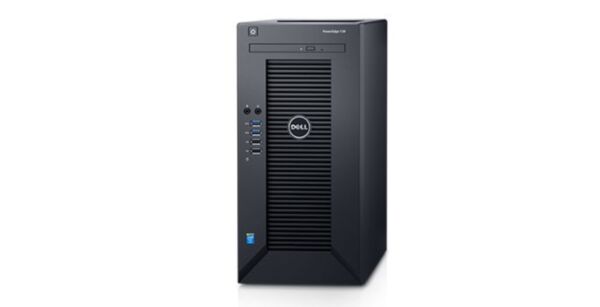

Dell T30 Mini Tower Server
- SKU: T30-Mini-Tower-Server
Actual Stock Can Be Confirmed After Placing the Order.
Specification Processor 1 processor from the following product families:Intel® Xeon® processor E3-1225 v5Intel Pentium® G4400 Operating System Microsoft® Windows Server® 2012Microsoft Windows Server 2012 R2Red Hat® Enterprise Linux®Ubuntu 14.04 / 16.04 Memory1 Architecture: 4 DIMM slotsMaximum RAM: up to 64GB DDR4 2133MT/s Dimensions Height:... See More
Specification
Processor
- 1 processor from the following product families:
Intel® Xeon® processor E3-1225 v5
Intel Pentium® G4400
Operating System
- Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2
Red Hat® Enterprise Linux®
Ubuntu 14.04 / 16.04
Dimensions
- Height: 14.17 inch / 359.9mm
Width : 6.89 inch / 175mm
Depth : 17.12 inch / 434.85mm
Ports
- 10x USB, 1 microphone, 1x headphone, PS2, Displayport, HDMI, RJ45, serial, audio in, audio out
Chassis
- Mini tower
Availability
- Error Correction Code (ECC) memory
Software RAID
Power
- 290W
RAID Controllers
- Software RAID: Intel Rapid Storage Controller 12.0 (supports SATA 6Gb/s or SATA 3Gb/s)
Chipset
- Intel C236
Storage
- Up to 6 total SATA HDDs (4 x 3.5” SATA HDD + 2 additional 2.5” SATA HDD (w/ expansion kit and optional controller card)
Optical bay: Internal DVD+/-RW (standard on Intel Xeon configuration, optional on Intel Pentium configuration)
Slots
- 4 slots:
1 PCIe x16 3.0
1 PCIe x16 3.0 (x4 speed)
1 PCIe x4 3.01 PCI
Network Controller
- Intel I219-LM Gigabit Ethernet LAN 10/100/1000 1-port
Management
- Intel AMT 11.0 (supported on Intel Xeon config)
Intel Standard Manageability (supported on Pentium config)
No datasheet available.
