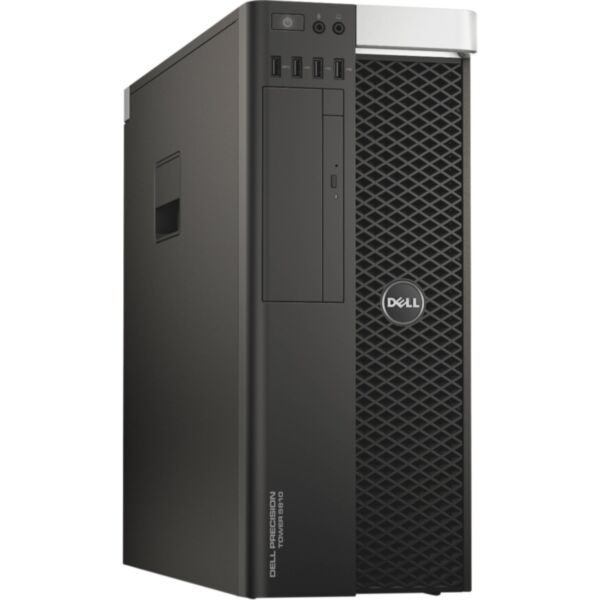

Dell Precision Tower 5000 Series (5810)
- SKU: Precision-Tower-5000-(5810)
Actual Stock Can Be Confirmed After Placing the Order.
Specification Processor Single or dual Intel® Xeon® processor E5-2600 v3 family with up to eighteen cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology Operating System (Dell recommends... See More
Specification
Processor
- Single or dual Intel® Xeon® processor E5-2600 v3 family with up to eighteen cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology
Operating System (Dell recommends Windows 10 Pro.)
- Windows 10 Pro
Windows 8.1 Pro (includes Windows 10 Pro license)
Windows 7 Professional (includes Windows 10 Pro license)
Linux® 7_0 (RHEL)
Linux® 7_2 (RHEL)
Ubuntu® 14_04
FreeDOS
Video Card
- Support for two PCI Express® x16 Gen 2 or Gen 3 graphics cards up to 300W (total graphics in two slots with 685W PSU)
High end 3D cards:
NVIDIA® Quadro® K6000
NVIDIA® Quadro® K5200
Mid-range 3D cards:
AMD FirePro™ W7100
AMD FirePro™ W5100
NVIDIA® Quadro® K4200
NVIDIA® Quadro® K2200
Entry 3D cards:
AMD FirPro™ W4100
AMD FirePro™ W2100
NVIDIA® Quadro® K620
NVIDIA® Quadro® K420(Post RTS)
Professional 2D cards:
Professional 2D (not ISV certified)
NVIDIA® Quadro® NVS 510
NVIDIA® Quadro® NVS 315
NVIDIA® Quadro® NVS 310
Dimensions
- Mid-Tower Chassis - 16.30 x 6.79 x 18.54"; 414 x 172.6 x 471mm
Optical Drive
- Slimline options: DVD-ROM; DVD+/-RW, Optional 5.25" device: DVD+/-RW; 19-in-1 media reader
Security
- Trusted Platform Module (TPM 1.2); Intrusion switch; Setup/BIOS Password; I/O Interface Security; Kensington® lock slot, Padlock ring, lockable power supply; Dell Data Protection (DDP): DDP | Security Tools for authentication; DDP | Protected Workspace for malware; DDP | Encryption for data protection8

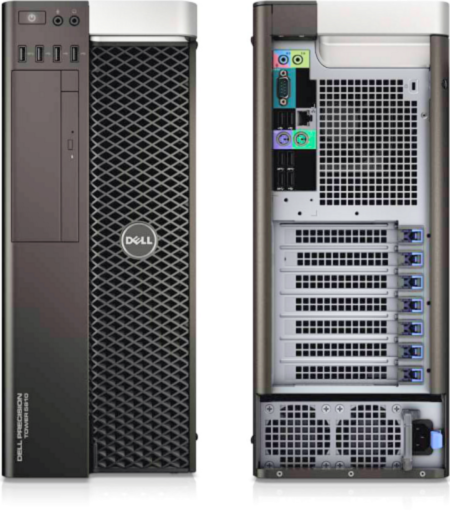

Ports
-
Front
1 USB 3.0
3 USB 2.0
2 RJ45
Internal
1 USB 2.0
1 2x5 USB 2.0 header
4 SATA/SAS 6Gb/s
2 SATA 6GB/s for optical drivesRear
3 USB 2.0
3 USB 3.0
2 PS2,
Serial
RJ45 intel® Gigabit Ethernet
Slots
- 5 Slots (5 Full length, 1 Half length)
2 PCIe x16 Gen 3
1 PCIe x 16 Gen 3 wired x8 (Half length)
1 PCIe x4 Gen 2
1 PCIe x1 Gen 2
1 PCI 32bit/33MHz
Chipset
- Intel® C612 chipset
