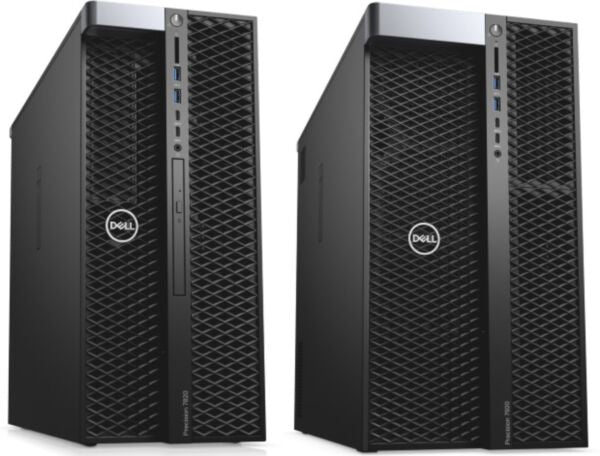

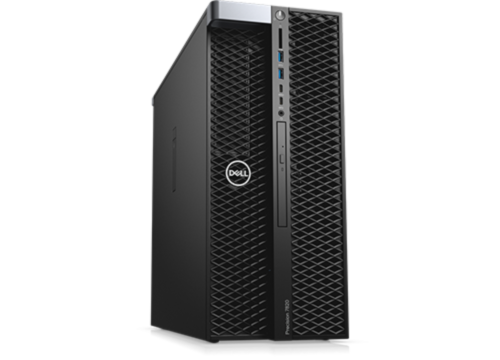

Dell Precision 7820 Tower
- SKU: Precision7820-Tower
Actual Stock Can Be Confirmed After Placing the Order.
Specification Processor One or two Intel® Xeon® processor Scalable family CPUs with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology Operating System (Dell recommends... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
Processor
- One or two Intel® Xeon® processor Scalable family CPUs with up to 28 cores per processor and Intel Advanced Vector Extensions, Intel Trusted Execution Technology, Intel AES New instructions, Optimized Intel Turbo Boost and optional Intel vPro™ technology
Operating System (Dell recommends Windows 10 Pro.)
- Windows 10 Pro (64 bit)
Red Hat® Enterprise Linux® 7.3
Ubuntu Linux 16.04
NeoKylin 6.0 SP3 (China only)
- Six channel memory up to 384GB 2667MHz DDR4 ECC memory with dual CPUs, 12 DIMM Slots
(6 DIMMs per CPU).
Note: Memory speed is dependent on specific Intel Xeon Processor Scalable Family processor installed.
Hard Drive
- Front accessible FlexBays support up to 4 x 2.5”/3.5” SATA HDD/SSDs and up to 6 x 2.5” and 5 x 3.5” drives with 5.25” bay populated.
Up to 2 front accessible (hot plug) M.2 NVMe PCIe SSDs are supported in FlexBays on enabled PCIe chassis with integrated Intel controller.
NVMe RAID 0,1 option (Intel RSTe vROC). Dell M.2 carrier with PCIe SSD for PCIe FlexBay available
as customer kit.
Up to 4 x M.2 NVMe PCIe SSDs via 1 x Dell Ultra-Speed Drive Quad x16 card. NVMe RAID 0,1,10 option (Intel RSTe vROC)
M.2 NVMe PCIe SSDs
Up to 4 x 1TB drives on 1 Dell Precision Ultra-Speed Drive Quad x16 cards.
Front FlexBay M.2 NVMe PCIe SSDs
Up to 2 x 1TB drives
2.5” SATA SSD
Up to 6 x 1TB drives
2.5” SAS SSD
Up to 6 x 800GB drives
3.5” SAS 7200 RPM 12Gb/s
Up to 5 x 4TB
2.5” SAS 10K RPM 12Gb/s
Up to 6 x 1.8TB
2.5” SAS 15K RPM 12Gb/s
Up to 6 x 900GB
2.5” Self Encrypting Drives
512GB 2.5” SED (OPAL/ FIPS (140-2) HDD
M.2 PCIe SED SSD
512GB and 1TB Intel®
Video Card
- Support for 2 PCI Express® x16 Gen 3 graphics cards1 - up to 500W with maximum of 2 x 250W double width graphics cards on single CPU configurations. Up to 2 x 150W single width graphics cards on dual CPU configurations.
High end 3D cards:
Radeon™ Pro WX 9100
Radeon™ Pro SSG (future)
NVIDIA Quadro GP100
NVIDIA Quadro P6000
NVIDIA Quadro P5000
Mid-range 3D cards:
Radeon™ Pro WX 7100
Radeon™ Pro WX 5100
Radeon™ Pro WX 4100
NVIDIA Quadro P4000
NVIDIA Quadro P2000
Entry 3D cards:
Radeon™ Pro WX 3100
Radeon™ Pro WX 2100
NVIDIA Quadro P1000
NVIDIA Quadro P600
NVIDIA Quadro P400
Professional 2D cards:
NVIDIA NVS 310
NVIDIA NVS 315
Dimensions
- Height: 417.9 mm (16.45”) X Width: 176.5 mm (6.95”) X Depth: 518.3 mm (20.41”). Optional 19” rackmount rail kit.
Starting weight: 15.9kg (35.1 lb)
Security
- Trusted Platform Module (TPM 2.0); Optional CAC/PIV card reader for slimline bay, chassis Intrusion switch; Setup/BIOS Password; I/O Interface Security; Kensington® lock slot, Padlock ring, lockable power supply; Optional hard drive locking sleds (key lock), Dell Data Guardian, Dell Endpoint Security Suite Enterprise
Ports
- Front
2 USB 3.1 Type A
2 USB 3.1 Type C
1 Universal Audio Jack
Up to 2 (future 4) PCIe slots in PCIe enabled chassis for M.2 and U.2 (future) PCIe SSDs
Internal
1 USB 2.0
1 USB 2.0 header. (requires 3rd party splitter cable to support 2 USB 2.0 Type A ports)
8 SATA @6Gb/s plus 1 SATA for optical
Rear
6 USB 3.1 Type A
1 Serial
1 RJ45 Network
2 PS2
1 Audio Line out
1 Audio Line in/Microphone
Slots
- All slots PCIe Gen 3
2 PCIe x16
1 PCIe x16 wired as x8
1 PCie x16 wired as x4
1 PCIe x16 wired as x1
1 PCI 32/33
Chipset
- Intel® C621 (Lewisburg)
Chassis
- Bays: (2) FlexBays and (1) 5.25” FlexBay (can support 1 x 3.5” or 2 x 2.5” HDD/SSD drives as factory option or customer kit)
(1) Slimline optical bay; (1) SD slot UHS ll Class 3 with read only support (SW enabled).Available PCIe chassis with PCIe FlexBays supporting M.2 NVMe PCIe SSDs and future U.2 NVMe PCIe SSDs. PCIe FlexBay customer kit available.
No datasheet available.
