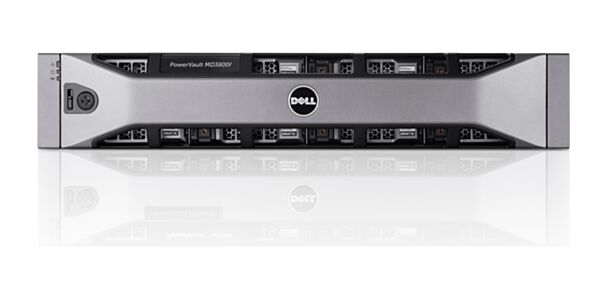

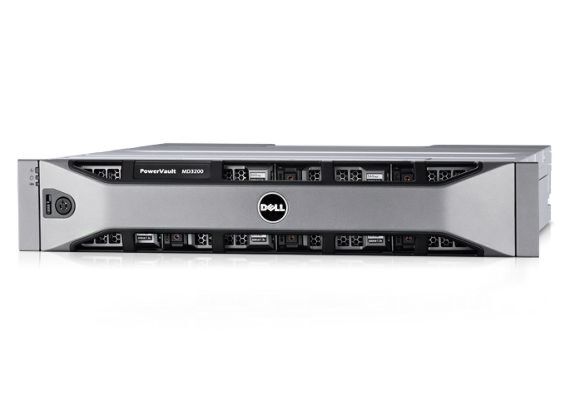

Dell PowerVault MD3 Serial Attached SCSI Storage

Dell PowerVault MD3 Serial Attached SCSI Storage

SKU: PowerVault-MD3

Actual Stock Can Be Confirmed After Placing the Order.

Specification Operating System Microsoft® Windows®, Linux, VMware®, Microsoft Hyper-V® Connectivity Hot-swappable controllersMD34x0 and MD38x0x controllers are not compatible with the older generation arrays (MD32x0x and MD36x0x).Single controller models: MD3400/MD3420: Directly connect up to two high-availability (HA)-configured servers or eight non-HA-configured servers to a single... See More

EMAIL info@procure.ae

TELEPHONE (+971) 454 65041

WHATSAPP (+971) 454 65041

FREE SHIPPING All orders over AED1999/-

Specification

Operating System

Microsoft® Windows®, Linux, VMware®, Microsoft Hyper-V®

Connectivity

Hot-swappable controllers
MD34x0 and MD38x0x controllers are not compatible with the older generation arrays (MD32x0x and MD36x0x).

Single controller models:
MD3400/MD3420: Directly connect up to two high-availability (HA)-configured servers or eight non-HA-configured servers to a single MD3400 or MD3420 storage system. Available with 4GB cache controllers.

Dual controller models:
MD3400/MD3420/MD3460: Directly connect up to four HA-configured servers or eight non-HA-configured servers to a single SAS storage system. Available with an option of 4GB or 8GB cache controllers.

MD3060e contains two hot-swappable enclosure management modules (EMMs)

Controller features
Each controller provides four 12Gbps SAS ports (MD3400/MD3420/MD3460); a total of eight for dual controller models
Each controller contains 4GB or 8GB of battery-backed cache
Dual controllers operate in an active-active environment mirroring each other’s cache
Cache protection is provided via flash memory for permanent data protection
Dynamic Disk Pools (DDP)1 eliminates the need for complex RAID management while optimizing data protection, and can be used with existing RAID configurations
Dual controllers are required for the MD3460 dense array

RAID
Support for RAID levels 0, 1, 10, 5, 6
Up to 180/1922 physical disks per group in RAID 0, 10
Up to 30 physical disks per group in RAID 5, 6
Up to 512 virtual disks
DDP1

Power

Wattage
MD3400/MD3420: AC - 600W peak output; DC – 700W (2U arrays support DC power supplies)
MD3460: AC - 1755W (dense arrays do not support DC power supplies)

Heat Dissipation (max)
MD3400/MD3420: 2047 BTU/hr
MD3460: 5988 BTU/hr

Voltage
MD3400/MD3420: 100 to 240V AC ;48V DC
MD3460: 220V AC, auto ranging, 50Hz/60Hz

Battery
MD3400/MD3420/MD3460: 6.0 DC, 100 mAh, 7.26 W Lithium Ion Battery

Frequency range
50/60Hz

Energy Efficiency

ENERGY STAR®
The Dell Storage MD3200i, MD3400, MD3800i and MD3800f arrays with the MD1200 expansion enclosure have earned the ENERGY STAR Data Center Storage designation.

The Dell Storage MD3220i, MD3420, MD3820i and MD3820f arrays with the MD1220 expansion enclosure have earned the ENERGY STAR Data Center Storage designation.

The Dell Storage MD3260i, MD3860i and MD3860f arrays have earned the ENERGY STAR Data Center Storage designation.
Click Here to learn more about the ENERGY STAR Storage 1.0 designation.

Management

2nd generation multi-protocol Modular Disk Storage Manager, Java based user interface

Multi-path graphical software provides failover management of redundant data paths between the server and storage array

MD3400/MD3420 Standard Features:
DDP1: Optional configuration to RAID disk management
VAAI support: Available for customers using VMware vStorage APIs for Array Integration,
vCenter Plug-in: Available for customers using VMware vSphere
VASA: vStorage API for Storage Awareness, available for use in conjunction with the vCenter Plug-in
SRA: Sight Recover Manager, available for use with vCenter Plugin
ALUA: Active-Active LUN Access
Supports Self-encrypting Drives (SED): Provide an additional level of data protection
Thin Provisioning: Allocate and consume physical storage capacity as needed
Try and Buy licensing: 90-day trial license of premium feature software
Microsoft Windows ODX

MD3460 Standard Features:
Same features as MD3400
High Performance Tier: Increases array I/O performance
SSD Cache: Accelerates application performance by utilizing SSD drives as extended controller read cache

Optional Premium Features:
Snapshots: Up to 128 snapshots per virtual disk and 512 per system
Snapshots Plus Virtual Disk Copy: Up to 512 simultaneous virtual disk copies
High Performance Tier (HPT)firmware upgrade increases array I/O performance3
Additional Hard Drives: capacity up to 1804 or 1925 hard drives
Remote Replication: Asynchronous and synchronous
SSD Cache: accelerates application performance by utilizing SSD drives as extended controller read cache6

Storage

Drives

MD3400: Up to twelve (12) 3.5" SAS, NL-SAS, SSD, SED
MD3420: Up to twenty-four (24) 2.5" SAS, NL-SAS, SSD, SED
MD3460: Up to sixty (60) 2.5” or 3.5”SAS, NL-SAS, SSD, SED

MD3400
3.5”--15,000 RPM SAS drives available in 300GB, 450GB7, 600GB7
3.5"--7,200 RPM Near-line SAS drives available in 500GB, 1TB7, 2TB7, 3TB7, 4TB7, 6TB, 8TB, 10TB
3.5” -- 10K RPM SAS: 600GB
Solid State Drive (SSD) available in 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available with 3.5" HDD carriers)

MD3420
2.5"--15,000 RPM SAS drives available in 300GB7
2.5"--10,000 RPM SAS drives available in 146GB, 300GB7, 600GB7, 900GB7, 1.2TB7, 1.8TB
2.5"--7,200 RPM NL-SAS drives available in 500GB7, 1TB7, 2TB
2.5"--SSD available in 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)

MD3460
3.5"--7,200 RPM NL-SAS drives available in 500GB, 1TB7, 2TB7, 3TB7, 4TB7, 6TB, 8TB, 10TB
2.5"--15,000 RPM SAS drives available in 300GB7
2.5"--10,000 RPM SAS drives available in 146GB, 300GB7, 600GB7, 900GB7, 1.2TB7, 1.8TB
2.5"--7,200 RPM NL-SAS drives available in 500GB7, 1TB7, 2TB
2.5"--SSD available in 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available with 3.5" HDD carriers)

MD3060e
3.5"--7,200 RPM NL-SAS drives available in 500GB, 1TB7, 2TB7, 3TB7, 4TB7, 6TB, 8TB, 10TB
2.5"-- 15,000 RPM SAS drives available in 146GB7, 300GB7, 600GB7
2.5"--10,000 RPM SAS drives available in 146GB, 300GB7, 600GB7, 900GB7, 1.2TB7,
1.8TB
2.5"--7,200 RPM NL-SAS drives available in 500GB7, 1TB7, 2TB
2.5"--SSD available in 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available in 3.5” HDD carriers)

Expansion Capabilities8
Up to 192 drives with MD1200/MD1220 expansion enclosures on the MD3400 and MD3420 arrays
Up to 180 drives with MD3060e expansion enclosures on the MD3460 array

Chassis

Chassis (height x width x depth)

MD3400: 8.68cm (3.42") x 44.63cm (17.57") x 60.20cm (23.70 inches)
MD3420: 8.68cm (3.42") x 44.63cm (17.57") x 54.90cm (21.61 inches)
MD3460: 17.78cm (7.0") x 48.26cm (19.0") x 82.55cm (32.5")
MD3060e: 17.78cm (7.0") x 48.26cm (19.0") x 82.55cm (32.5”)

Weight

MD3400: 29.30 kg (64.6 lbs) (maximum configuration)
MD3420: 24.22 kg (53.4 lbs) (maximum configuration)
MD3460: 105.20 kg (232.0 lbs) (maximum configuration)
MD3060e: 105.23kg (232 lbs.) (maximum configuration)

Rack Support for MD3400 and MD3420 :
Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks.

MD3060e Dense Enclosure
EBOD expansion enclosure designed for use with the MD3 dense array series only (MD3260i, MD3460, MD3860i, MD3860f)

Dimensions are identical to the dense array series (MD3260i, MD3460, MD3860i, MD3860f)

Controllers on the MD3 dense series arrays have either one 6Gbps SAS Out port (MD3260i) or one 12Gbps SAS Out port (MD3460, MD3860i, and MD3860f) for connecting to the MD3060e enclosure expansion for additional capacity (max 2 per dense array). For systems without premium feature activation, the physical disk limit is 120.

MD3060e contains two hot-swappable enclosure management modules (EMMs)
