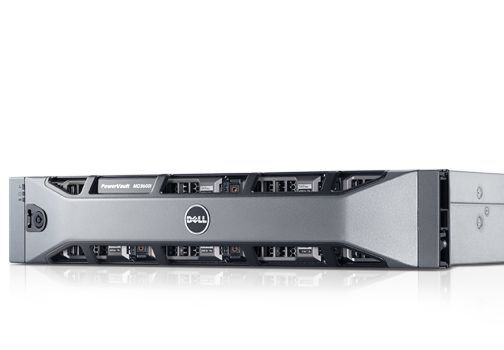

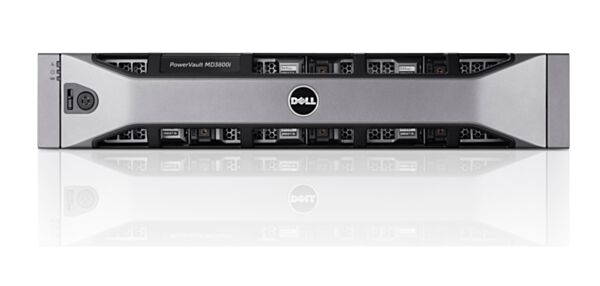

Dell PowerVault MD3 10Gb iSCSI Series

SKU: MD3-10Gb-iSCSI

Actual Stock Can Be Confirmed After Placing the Order.

Specification Operating System Microsoft® Windows®, Linux, VMware®, Microsoft Hyper-V® Connectivity Two 10GBASE-T Ethernet ports per controllerMD34x0 and MD38x0x controllers are not compatible with the older generation arrays (MD32x0x and MD36x0x).Single Controller Models MD3800i and MD3820i: Support up to 64 servers when configured with 10Gb... See More

EMAIL info@procure.ae

TELEPHONE (+971) 454 65041

WHATSAPP (+971) 454 65041

FREE SHIPPING All orders over AED1999/-

Specification

Operating System

Microsoft® Windows®, Linux, VMware®, Microsoft Hyper-V®

Connectivity

Two 10GBASE-T Ethernet ports per controller
MD34x0 and MD38x0x controllers are not compatible with the older generation arrays (MD32x0x and MD36x0x).

Single Controller Models
MD3800i and MD3820i: Support up to 64 servers when configured with 10Gb iSCSI. Available with 4GB cache controllers.

Dual Controller Models
MD3800i, MD3820i, MD3860i: Support up to 64 servers when configured with 10Gb iSCSI. Available with option of 4GB or 8GB cache controllers.

Controller features:
Each controller contains 4GB or 8GB of battery-backed cache
Dual controllers operate in an active-active environment mirroring each other’s cache
Cache protection is provided via flash memory for permanent data protection
Dynamic Disk Pools1 (DDP) eliminates the need for complex RAID management while optimizing data protection, and can be used with existing RAID configurations

Dual controllers required for the MD3860i dense arrays

Environmental Operating Conditions

Temperature
Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour
MD3800i/MD3820i: Supports Fresh Air cooling, up to 35°C

Relative Humidity
Operating: 20% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour

Altitude
MD3800i/MD3820i:
Operating: -16 to 3048 m (-50 to 10,000 ft)
Note: For altitudes above 2,950 ft, the maximum operating temperature is de-rated 1°F/550 ft.

MD3860i:
Operating: -30.5 m to 3,000 m (-100 ft to 9,840 ft)
Note: For altitudes above 2,950 ft, the maximum operating temperature is de-rated 1.8°F/1,000 ft.

Power

Wattage – MD3800i and MD3820i support DC power supply
MD3800i/MD3820i: AC - 600W peak output; DC 700W
MD3860i: AC - 1755W
Maximum Heat Dissipation
MD3800i/MD3820i: 2047 BTU/hr
MD3860i: 5988 BTU/hr
Voltage
MD3800i/MD3820i: 100V to 240V AC; 48V DC
MD3860i: 220V AC, auto ranging, 50Hz/60Hz

Frequency Range
50/60 Hz

Energy Efficiency

ENERGY STAR®
The Dell Storage MD3200i, MD3400, MD3800i and MD3800f arrays with the MD1200 expansion enclosure have earned the ENERGY STAR Data Center Storage designation.

The Dell Storage MD3220i, MD3420, MD3820i and MD3820f arrays with the MD1220 expansion enclosure have earned the ENERGY STAR Data Center Storage designation.

The Dell Storage MD3260i, MD3860i and MD3860f arrays have earned the ENERGY STAR Data Center Storage designation.
Click Here to learn more about the ENERGY STAR Storage 1.0 designation.

Management

2nd generation multi-protocol Modular Disk Storage Manager, Java based user interface
Multi-path graphical software provides failover management of redundant data paths between the server and storage array

MD3800i, MD3820i Standard Features
Dynamic Disk Pools (DDP):2 Optional configuration to RAID disk management
VAAI support: Available for customers using VMware vStorage APIs for Array Integration,
vCenter Plug-in: Available for customers using VMware vSphere
VASA: vStorage API for Storage Awareness, available for use in conjunction with the vCenter Plugin
SRA: Sight Recover Manager, available for use with vCenter Plugin
ALUA: Active-Active LUN Access
Self Encrypting Drives (SED): Provide an additional level of data protection
Thin Provisioning: Allocate and consume physical storage capacity as needed
Try and Buy licensing: 90-day trial license of premium feature software
Microsoft Windows ODX

MD3860i Standard Features
Same features as MD3800i
High Performance Tiering: Increases array I/O performance
SSD Cache: Accelerates application performance by utilizing SSD drives as extended controller read cache

Optional Premium Features
Snapshots: Up to 128 snapshots per virtual disk and 512 per system
Snapshots Plus Virtual Disk Copy: Up to 512 simultaneous virtual disk copies
HPT firmware upgrade increases array IO performance3
Additional Hard Drives: Capacity up to 1804 or 1925 hard drives
Remote Replication: Asynchronous and synchronous
SSD Cache: Accelerates application performance by utilizing SSD drives as extended controller read cache6

Storage

Drives
Hot swappable drives:
MD3800i: Up to twelve (12) 3.5" SAS, NL-SAS, SSD, SED
MD3820i: Up to twenty-four (24) 2.5" SAS, NL-SAS, SSD, SED
MD3860i: Up to sixty (60) 2.5’ or 3.5” SAS, NL-SAS, SSD, SED

MD3800i
3.5"--15,000 RPM SAS drives available in 300GB, 450GB7, 600GB7
3.5"--7,200 RPM NL-SAS drives available in 500GB, 1TB7, 2TB7, 3TB7, 4TB7, 6TB, 8TB, 10TB
3.5” -- 10K RPM SAS: 600GB
Solid-State Drive (SSD) available in 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available with 3.5" HDD carriers)

MD3820i
2.5"--15,000 RPM SAS drives available in 146GB7, 300GB7, 600GB7
2.5"--10,000 RPM SAS drives available in 146GB, 300GB7, 600GB7, 900GB7, 1.2TB7, 1.8TB
2.5"--7,200 RPM NL-SAS drives available in 500GB7, 1TB7, 2TB
2.5"--SSD available in 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI)

MD3860i
3.5"--7,200 RPM NL-SAS drives available in 500GB, 1TB7, 2TB7, 3TB7, 4TB7 , 6TB, 8TB, 10TB
2.5"--15,000 RPM SAS drives available in 146GB7, 300GB7, 600GB7
2.5"--10,000 RPM SAS drives available in 146GB, 300GB7, 600GB7, 900GB7, 1.2TB7, 1.8TB
2.5"--7,200 RPM Near-line SAS drives available in 500GB7,1TB7, 2TB
2.5"--SSD available in 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available with 3.5" HDD carriers)

MD3060e
3.5" --7,200 RPM NL-SAS drives available in 500GB, 1TB7, 2TB7, 3TB7, 4TB7, 6TB, 8TB, 10TB
2.5"--15,000 RPM SAS drives available in 146GB7, 300GB7, 600GB7
2.5"--10,000 RPM SAS drives available in 146GB, 300GB7, 600GB7, 900GB7, 1.2TB7, 1.8TB
2.5"--7,200 RPM NL-SAS drives available in 500GB7, 1TB7, 2TB
2.5"--SSD available in 200GB, 400GB, 800GB (WI); 400GB, 800GB, 1.6TB (MU); 800GB, 1.6TB (RI) (available in 3.5” HDD carriers)

Expansion Capabilities
Up to 192 drives with MD1200/MD1220 expansion enclosures (MD3800i, MD3820i)8
Up to 180 drive with the MD3060e dense enclosure (MD3860i only)8

Chassis

Height x Width x Depth
MD3800i: 8.68cm (3.42") x 44.63cm (17.57") x 60.20cm (23.7")
MD3820i: 8.68cm (3.42") x 44.63cm (17.57") x 54.90cm (21.61")
MD3860i: 17.78cm (7.0") x 48.26cm (19.0") x 82.55cm (32.5")
MD3060e: 17.78cm (7.0") x 48.26cm (19.0") x 82.55cm (32.5")

Weight
MD3800i: 29.30kg (64.6 lbs) (maximum configuration)
MD3820i: 24.22kg (53.4 lbs) (maximum configuration)
MD3860i: 105.20kg (232.0 lbs) (maximum configuration)
MD3060e: 105.23kg (232 lbs) (maximum configuration)

Rack Support for MD3800i, MD3820i
Dell ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole rack

RAID

Hot Swappable controllers

Single Controller Models (MD3800i and MD3820i)
Supports up to 64 servers when configured with a Fibre Channel switch

Dual Controller Models (MD3800i, MD3820i and MD3860i)
Supports up to 64 servers when configured with Fibre Channel switches
MD3060e Contains two hot-swappable enclosure management modules (EMMs)

RAID Levels
Support for RAID levers 0, 1, 10, 5, 6
Up to 192/1808 physical disks per group in RAID 0, 10
Up to 30 physical disks per group in RAID 5, 6
Up to 512 virtual disks
(DDP)9

Back-Panel Connectors

Host Connectivity
Two RJ-45 10Gb Ethernet

Expansion Connectivity
One x4 6Gb SAS (8088 mini connector)

Remote Management
One RJ-45 1Gb Ethernet

Service Management
One PS/2 Serial
