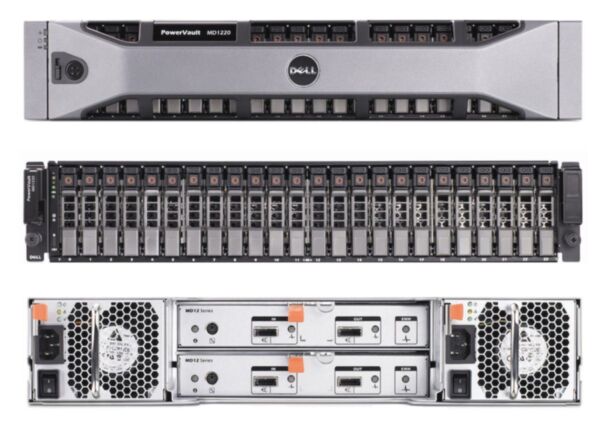

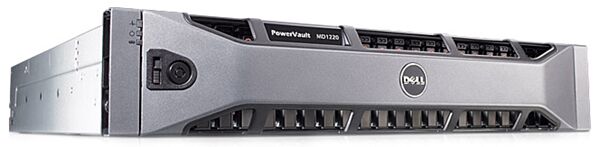

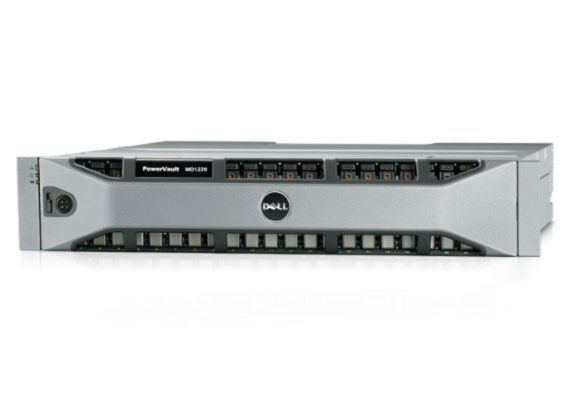

Dell PowerVault MD1220 Direct Attached Storage

Dell PowerVault MD1220 Direct Attached Storage

SKU: MD1220

Actual Stock & Price Can Be Confirmed After Placing the Order.

Specification Operating System Refer to the PERC RAID Card details for supported Operating Systems PERC H810 Connectivity Support for the following configurations:Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H810 (4 enclosures per port, single path)Unified mode (redundant... See More

EMAIL info@procure.ae

TELEPHONE (+971) 454 65041

WHATSAPP (+971) 454 65041

FREE SHIPPING All orders over AED1999/-

Specification

Operating System

Refer to the PERC RAID Card details for supported Operating Systems

PERC H810

Connectivity

Support for the following configurations:

Unified mode (single path) for daisy chaining of up to 8 enclosures per PERC H810 (4 enclosures per port, single path)

Unified mode (redundant path) for daisy chaining up to 4 enclosures per PERC H810 (4 enclosures connected to both ports via redundant path cabling)

Split mode with dual Enclosure Management Modules providing direct connectivity to drives 0 through 11 and a separate connectivity to drives 12 through 23.

Environmental Operating Conditions

Temperature

Operating: 10° to 35°C (50° to 95°F) with maximum temp gradation of 10°C per hour
Storage: -40° to 65°C (-40° to 149°F) with temp gradation of 20°C per hour
Supports Fresh Air cooling, up to 35 degrees Celsius

Relative humidity

Operating: 8% to 85% (non-condensing) with maximum humidity gradation of 10% per hour
Storage: 5% to 95% (non-condensing)

Altitude

Operating: -16 to 3048 m (-50 to 10,000 ft)
Storage: -16 to 10,600 m (-50 to 35,000 ft)

Power

Two fully redundant power supplies; supports DC power

Wattage: AC - 600 W; DC - 700 W

Heat dissipation: AC - 2047 BTU/hr; DC - 2388 BTU/hr

Voltage: 100-240VAC; 48V DC

Frequency: 50/60Hz

Amperage: 8.6 A at 100 V, 4.3 A at 240 V

Available Hard Drive Power (per slot)
Supported drive power consumption (continuous):
up to 1.2 A at +5V
up to 0.5 A +12V

Management

Enclosure Management Modules (EMM)

2 EMM modules provide redundant enclosure management capability

Storage

Drives
Up to twenty four (24) 6 cm (2.5") hot-pluggable SAS Hard Disk Drives (HDDs) at 7200, 10K, 15K rpm and SAS Solid State Drives (SSDs).

6 cm (2.5") SAS HDDs
15,000 RPM 6Gb/s SAS drives available in 73GB and 146GB
10,000 RPM 6Gb/s SAS drives available in 146GB, 300GB and 600GB
7,200 RPM (Nearline) 6Gb/s SAS drives available in 500GB

6 cm (2.5") SAS SSDs1
3Gb/s SSDs available in 150GB

Maximum Capacity (per enclosure)
14.4TB using twenty four (24) 600GB 10K RPM 6Gb/s SAS HDDs

Expansion Capabilities
PERC H800 enables expansion to 8 enclosures, 4 per port

More Details on PERC

Chassis

Height
9 cm (3.41")

Width
45 cm (17.57")

Depth
55 cm (21.6")

Weight
23.31 kg (51 lb) (maximum configuration)
8.61 kg (19 lb) (empty)

RAID

PERC H800 supports RAID levels 0, 1, 5, 6, 10, 50 and 60.

Back-Panel Connectors

SAS connectors (per EMM)
1 SAS (SFF 8088) "IN" connector for connection to the host
1 SAS (SFF 8088) "OUT" connector for expansion to an additional enclosure

Serial connector (per EMM)
1 6-pin UART mini-DIN connector (for factory use only)

LED Indicators

Front panel
1 two-color LED indicator for system status
2 single-color LED indicators for power and split mode

Hard-drive carrier
1 single-color activity LED
1 two-color LED status indicator per drive

EMM
3 two-color LED status indicators: one for each of the EMM SAS ports and one for the EMM status
1 single-color Unit Identification LED for each EMM

Power supply/cooling fan module
3 LED status indicators for Power supply/cooling fan fault, AC power, and DC power
