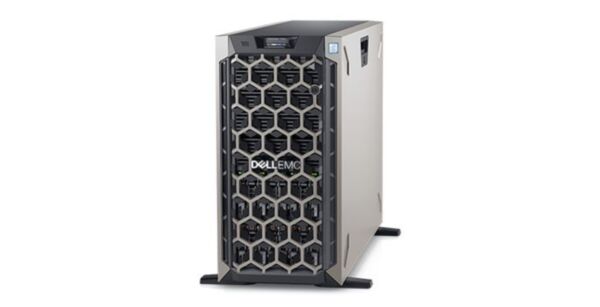

Dell PowerEdge T640 Tower Server

SKU: T640-Tower-Server

Actual Stock Can Be Confirmed After Placing the Order.

Specification Processor Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor Memory1 24 DDR4 DIMM slots, supports RDIMMS/LRDIMMS, speeds up to 2666MT/s, 3TB2 Up to 12 NVDIMM, 192GB maxSupports registered ECC DDR4 DIMMs only Storage Controllers Internal controllers: PERC H730P,... See More

EMAIL info@procure.ae

TELEPHONE (+971) 454 65041

WHATSAPP (+971) 454 65041

FREE SHIPPING All orders over AED1999/-

Specification

Processor

Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor

Memory1

24 DDR4 DIMM slots, supports RDIMMS/LRDIMMS, speeds up to 2666MT/s, 3TB2
Up to 12 NVDIMM, 192GB max
Supports registered ECC DDR4 DIMMs only

Storage Controllers

Internal controllers: PERC H730P, H740P, HBA330, H330, Software RAID (SWRAID) S140
External PERC (RAID): H840
External HBAs (non-RAID): 12 Gbps SAS HBA
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240GB

Drive Bays

Up to 8 or 18 x 3.5” SAS/SATA (HDD/SSD) max 180TB or up to 16 x 2.5” SAS/SATA (HDD/SSD) 61TB max or up to 32 x 2.5” SAS/SATA (HDD/SSD) 122TB max or up to 16 x 2.5 SAS/SATA (HDD/SSD) + 8x NVMe SSD max 112TB

GPU

GPU options: 4 x 300W (DW) or 8 x 150W (SW)
NVIDIA Tesla P100,P40, K80M, M60, M10, AMD S7150, S7150X2

Power Supplies

Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, 2000W and 2400W; 48VDC 1100W, 240HVDC 750W
Hot plug power supplies with full redundancy
Up to 6 hot plugs fans with full redundancy plus 2 external fans (optional)

Dimensions

Form factor: Tower or rack, 5U
Max depth: 708.7 mm

Bezel

Optional Security bezel

Security

TPM 1.2/2.0 optional
Cryptographically signed firmware
Hardware Root of Trust
Secure Boot
System Lockdown
System Erase

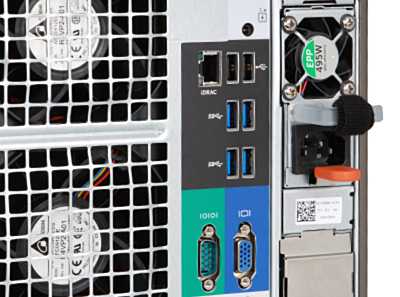

I/O and Ports

2 x 10GbE LOM
8 x USB (1 x USB 2.0. 1 x USB 3.0, 6 x USB 2.0/3.0),
Dedicated iDRAC Direct Micro-USB
Video card: VGA
Up to 8 PCIe Gen3 slots

Supported Operating Systems

Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi

Management

Embedded / At-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module

Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center

Mobility
OpenManage Mobile

Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell Repository Manager
Dell System Update
Dell Server Update Utility
Dell Update Catalogs

OpenManage Integrations
Microsoft Systems Center
VMware vCenter
BMC software (available from BMC)

OpenManage Connections
Nagios Core and Nagios XI
HPE Operations Manager i (OMi)
