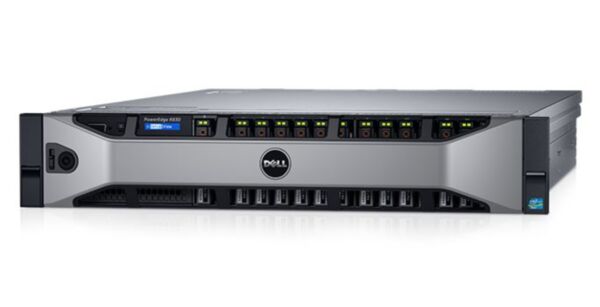

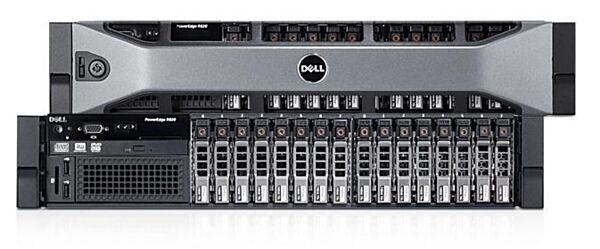

Dell PowerEdge R830 Rack Server
- SKU: R830-Rack-Server
Actual Stock Can Be Confirmed After Placing the Order.
Specification Processor Intel® Xeon® processor E5-4600 v4 product family Operating System Microsoft Windows Server® 2012 R2Microsoft Windows Server 2012Microsoft® Windows Server® 2016Novell® SUSE® Linux Enterprise ServerRed Hat® Enterprise Linux®VMware vSphere® ESXi® Memory1 (48 DIMM slots): 8GB/16GB/32GB/64GB DDR4, RDIMM, LRDIMM up 2400MT/s Drive Bays Up... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
Processor
- Intel® Xeon® processor E5-4600 v4 product family
Operating System
- Microsoft Windows Server® 2012 R2
Microsoft Windows Server 2012
Microsoft® Windows Server® 2016
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
VMware vSphere® ESXi®
Drive Bays
- Up to 16 x 2.5”
Dimensions
- H: 14.17 in (36.0 cm)
W: 6.89 in (17.5 cm)
D: 17.12 in (43.5 cm)
Chassis
- 2U rack server
Availability
- Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module
Power
- Platinum 750W AC, auto-ranging; Platinum 1600W AC, auto-ranging
RAID Controllers
-
Internal controllers: PERC H330, PERC H730, PERC H730P
External HBAs (RAID): PERC H830
External HBAs (non-RAID): 12Gbps SAS HBA
Chipset
- Intel C612
Storage
- 16 x 2.5” SATA/SAS SSD
SAS HDD (15K, 10K)
Nearline SAS HDD (7.2K)
Slots
- 7 PCIe slots:
2 x 16 half-length, full-height
1 x 8 half-length, full-height
3 x 8 half-length, half-height
1 x 8 half-length, full-height for the RAID controller
Management
-
Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Remote management:
iDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)
16GB vFlash media (upgrade)
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft® System Center
Dell OpenManage Integration for VMware® vCenter™
Dell OpenManage Connections:
HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
Dell OpenManage Plug-in for Oracle® Database Manager
Embedded Hypervisor (Optional)
- Microsoft Windows Server with Hyper-V®
Citrix® XenServer®
VMware vSphere ESXi
Communications
-
Supported Select Network Adapters (NDC):
Broadcom 5720 quad-port 1GbE Base-T (no TOE or iSCSI offload)
QLogic 57800S dual-port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
QLogic 57800S dual-port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports)
Intel I350 quad-port 1GbE Base-T (no TOE or iSCSI offload)
Intel X540 dual-port 10GbE Base-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)
Rack Support
- ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
No datasheet available.
