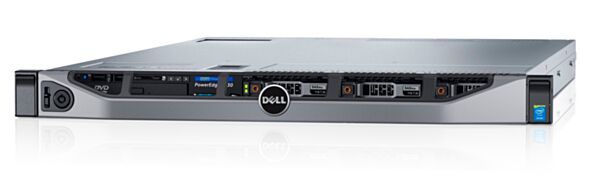

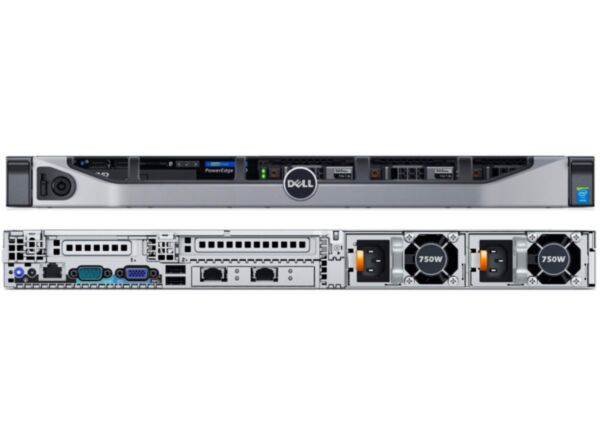

Dell PowerEdge R630 Rack Server
- SKU: R630-Rack-Server
Actual Stock & Price Can Be Confirmed After Placing the Order.
Specification Processor Intel® Xeon® processor E5 2600 v4 product family Operating System Microsoft® Windows Server® 2008 R2Microsoft Windows Server 2012Microsoft Windows Server 2012 R2Microsoft® Windows Server® 2016Novell® SUSE® Linux Enterprise ServerRed Hat® Enterprise LinuxVMware® ESX® Memory1 Up to 1.5TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB DDR4... See More
Specification
Processor
- Intel® Xeon® processor E5 2600 v4 product family
Operating System
- Microsoft® Windows Server® 2008 R2
Microsoft Windows Server 2012
Microsoft Windows Server 2012 R2
Microsoft® Windows Server® 2016
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX®
Drive Bays
- Internal hard drive bay and hot-plug backplane:
Up to 24 x 1.8” SATA SSD
Up to 10 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, Up to 4 NVMe PCIe
Up to 8 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Chassis
- The 24 x 1.8” drive and 10 x 2.5” drive configurations have the following dimensions:
Form Factor: 1U
H: 4.28 cm (1.68 in.) x W: 48.23 cm (18.98 in.) x D: 75.51 cm (29.72 in.)
The 8 x 2.5” drive configuration has the following dimensions:
Form Factor: 1U
H: 4.28 cm (1.68 in.) W: 48.23 cm (18.98 in.) D: 70.05 cm (27.57 in.)
Availability
- ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller
Power
- 1100W AC, 86 mm (Platinum)
1100W DC, 86 mm
750W AC, 86 mm (Platinum)
750W AC, 86 mm (Titanium)
495W AC, 86 mm (Platinum)
RAID Controllers
- Internal:
PERC S130 (SW RAID),
PERC H330
PERC H730
PERC H730P
External:
PERC H830
External HBAs (non-RAID):
12Gbps SAS HBA
Chipset
- Intel C610 series chipset
Storage
- HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, NVMe PCIe
24 x 1.8” SSD – up to 23TB via 0.96TB hot-plug SATA SSD
10 x 2.5” – up to 18TB via 1.8TB hot-plug SAS HDD
8 x 2.5” – up to 14TB via 1.8TB hot-plug SAS HDD
Slots
- 2 CPUs, 3 slots
Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector)
Slot 2: Half length, half height - PCIe 3.0 x8 (x16 connector)
Slot 3: Half length, half height - PCIe 3.0 x16 (x16 connector)
2CPUs, 2 slots
Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector)
Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector)
1CPU, 2 slots
Slot 1: Half length, half height - PCIe 3.0 x8 (x16 connector)
Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector
Dedicated RAID card slot
Network Controller
- 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb
Management
-
Systems management:
IPMI 2.0 compliant;
Dell OpenManage Essentials; Dell OpenManage Mobile;
Dell OpenManage Power Center
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware® vCenter
Dell OpenManage Connections:
HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
Dell OpenManage for Oracle Database Manager
Remote management
iDRAC8 with Lifecycle Controller,
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)16GB vFlash media (upgrade)
iDRAC Quick Sync
Embedded Hypervisor (Optional)
- Microsoft® Windows Server® 2012, with Hyper-V®
VMware® vSphere® ESXi™
Citrix® XenServer®
Communications
- Broadcom 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
QLogic 57810 dual-port 10Gb DA/SFP+ CNA
QLogic 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
