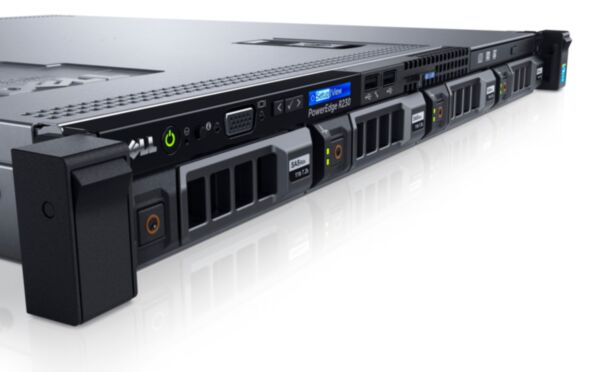

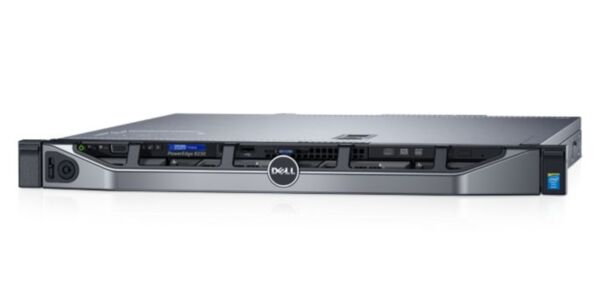

Dell PowerEdge R230 Rack Server

SKU: R230-Rack-Server

Actual Stock Can Be Confirmed After Placing the Order.

Specification Processor 1 processor from the following product families:Intel® Xeon® processor E3-1200 v6 product familyIntel Pentium®Intel Core i3®Intel Celeron® Operating System Microsoft® Windows Server® 2012Microsoft Windows Server 2012 R2, x64Microsoft® Windows Server® 2016Red Hat® Enterprise Linux®VMware Vsphere® ESXi®SUSE® Linux Enterprise Server® Memory1 Architecture: Up... See More

EMAIL info@procure.ae

TELEPHONE (+971) 454 65041

WHATSAPP (+971) 454 65041

FREE SHIPPING All orders over AED1999/-

Specification

Processor

1 processor from the following product families:
Intel® Xeon® processor E3-1200 v6 product family
Intel Pentium®
Intel Core i3®
Intel Celeron®

Operating System

Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 R2, x64
Microsoft® Windows Server® 2016
Red Hat® Enterprise Linux®
VMware Vsphere® ESXi®
SUSE® Linux Enterprise Server®

Memory1

Architecture: Up to 2400MT/s DDR4 DIMMs
Memory Type: UDIMMs
Memory Module Sockets: 4
Maximum RAM: Up to 64GB

Drive Bays

2 x 3.5" cabled HDD
4 x 3.5" cabled HDD
4 x 3.5" hot swap or 2.5" hot swap in hybrid drive carrier

Dimensions

Depth without bezel: 495.0 mm (19.5 in)
Depth with bezel: 551.3 mm (21.7 in)
Height: 42.8 mm (1.68 in)

Width without rack latches: 434.0 mm (17.08 in)
Width with rack latches: 482.4 mm (18.99 in)

Chassis

2 x 3.5" cabled HDD 19.5" 1U chassis
4 x 3.5" cabled HDD 19.5" 1U chassis
4 x 3.5" Hot-Plug HDD 19.5" 1U chassis

Power

250W cabled PSU

RAID Controllers

S130, H330, H730, H830

Chipset

Intel C236

Storage

2.5” SATA 7.2K
2.5” nearline SAS 7.2K
2.5” 10K SAS HDDs
2.5” 15K SAS HDDs
2.5” SATA HDDs
3.5” Enterprise SATA 7.2K HDDs
3.5” nearline SAS 7.2K HDDs
3.5” 7.2K SATA entry drives

Slots

2 x PCIe 3.0 slots: x16 slot, full height (1x8 PCIe 3.0)+ x8 slot, low profile (1x4 PCIe 3.0)

Network Controller

Broadcom® BCM5720

Management

Systems management:
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center

Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware vCenter™

Dell OpenManage Connections:
HP Operations Manager, IBM Tivoli® Netcool® and CA
Network and Systems Management
Dell OpenManage Plug-in for Oracle® Database Manager

Remote management:
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default),
iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade),16GB vFlash media (upgrade)

Embedded Hypervisor (Optional)

Hypervisor Support

Microsoft Windows Server with Hyper-V®
VMware® vSphere® ESXi®

Communications

2 x 1GbE LOM

Device Access

5 Total USB:
Rear: 2 x USB 3.0 ports
Front: 2 x USB 2.0 ports
Internal: 1 x USB 3.0 port

Rack Support

ReadyRails™ static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post racks.

No datasheet available.
