dbx 1231 Dual Channel 31-Band Equalizer — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
dbx · DBX1231V-EU · DJ & Mixing Equipment

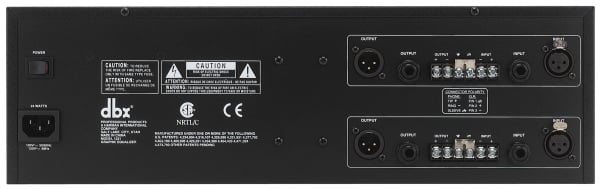

dbx 1231 Dual Channel 31-Band Equalizer

dbx 1231 Dual Channel 31-Band Equalizer

The dbx 1231 Dual Channel 31-Band Equalizer is a dj & mixing equipment available in the UAE from Procure.ae.

The dbx 1231 Dual Channel 31-Band Equalizer is a powerful tool for achieving precision control over your sound system. Whether you're a professional audio engineer or a music enthusiast, this equalizer offers exceptional sound quality and performance in a compact and user-friendly package. With 31 bands of EQ per channel, you can fine-tune the audio frequencies to perfection, ensuring that every note and sound is reproduced with clarity and accuracy.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Weight
2.5 kg

Key features

01
Dual Channel
Two independent channels for versatile control
02
31-Band EQ
Precision equalization for detailed sound shaping
03
Graphic Display
Visual feedback for easy monitoring
04
dbx Type III Noise Reduction
Enhanced audio clarity
05
Switchable Boost/Cut Range
+/-6dB or +/-12dB for flexible adjustments
06
Single 31-Band Channel
Selectable 6 or 12dB boost/cut range
07
12 Segment LED Ladder
Visual feedback for precise control
08
PeakPlus Limiter
Protection against signal overload

Specifications

Audio
Channels2
Dynamic Range>108 dB
Frequency Response20 Hz – 20 kHz
Signal-to-Noise Ratio>94 dB
Connectivity
ConnectivityAnalog XLR, TRS
Power
Power Source100-120 V or 220-240 V AC, 50/60 Hz; 15 W
Physical
Dimensions88 x 483 x 201 mm
MountingRack mount (2U)
Rack Units2U
Weight2.5 kg
Compliance
Country of OriginUnited States
QR code to dbx 1231 Dual Channel 31-Band Equalizer on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
