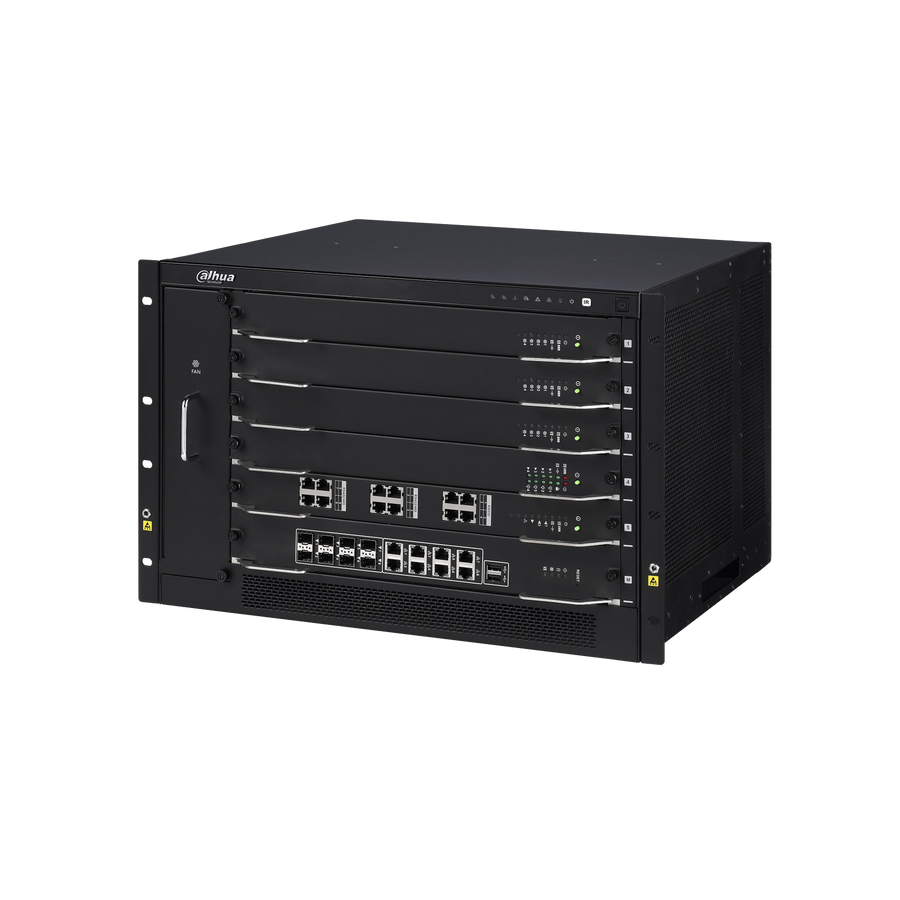

Dahua Multi-service Video Management Platform Video Wall Controller – M60-7U

The Dahua M60-7U is a discontinued 7U video wall controller that splices up to 90 screens and adds network extended alarm inputs and outputs. It suits surveillance video wall projects needing matrix switching and multi-channel decoding. Procure.ae can confirm availability and supply in the UAE, with quotes and installation support.

The M60-7U runs an embedded Linux operating system on a 64-bit quad-core processor. It accepts digital and network video, supports up to 5,000 camera access and offers 8 RJ-45 network ports with 8 Gbps network interface bandwidth. Full configuration provides 40 channels of 1080P signal encoding and 30 channels of 32MP (25fps) decoding, or 480 channels of 1080P decoding. Video wall splicing covers up to 90 screens, with zoom, merge, roam and overlay support.

The M60-7U is a standard 19-inch, 7U rack-mounted ATCA industry box with pluggable card modules and hot-swap function cards. It can be managed through a web interface, local GUI, video platform, network keyboard or iPad, and it supports network extended alarm signal input and output. Outputs are HDMI or BNC depending on the decoding card. Compared with the 12U M60-12U, this model splices up to 90 screens instead of 180.
