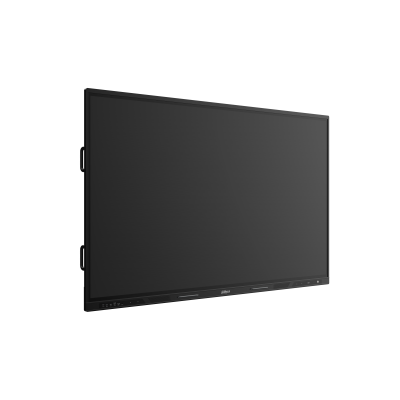

The Dahua LPH86-ST473 86-Inch Smart Interactive Whiteboard is a interactive flat panel available in the UAE from Procure.ae.
The Dahua LPH86-ST473 86-Inch Smart Interactive Whiteboard is the ideal solution for modern classrooms and dynamic conference rooms seeking advanced collaboration technology . With its expansive 86-inch 4K UHD display , this interactive whiteboard transforms presentations and brainstorming sessions, offering crystal-clear visuals and ultra-responsive touchscreen capabilities . Designed for seamless integration into any workspace, the LPH86-ST473 supports multi-user interaction, making it perfect for educational institutions , corporate boardrooms , and creative environments. The intuitive.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- 86-Inch 4K UHD Display - Offers stunning clarity for immersive presentations and detailed visuals.
- 20-Point Multi-Touch Support - Enables multiple users to interact simultaneously for dynamic collaboration.
- Anti-Glare, Anti-Fingerprint Glass - Keeps the screen clear and easy to view in any lighting condition.
- Integrated Wireless Connectivity - Effortlessly connects to devices for seamless screen sharing and collaboration.
- Smart Annotation Tools - Built-in software for easy note-taking, drawing, and document editing.
- Wide Device Compatibility - Connects with laptops, tablets, smartphones, and USB drives for flexible usage.
- Durable Construction - Designed for heavy daily use in classrooms and meeting spaces.
- Energy-Efficient Performance - Consumes less power without compromising brightness or functionality.
Ideal for: offices, schools, and government facilities across Dubai, Abu Dhabi, Sharjah and the wider GCC.
General
| Name |
Dahua LPH86-ST473 86-Inch Smart Interactive Whiteboard |
| Key Features |
Wake on lan, Nfc card reader |
| Sensors |
Light |
| What's in the Box |
Power Cord × 1, HDMI Cable × 1, Passive Writing Pen × 2, Quick Start Guide × 1, Wall-mounted bracket, Accessory Package × 1, Remote Control × 1, Legal and Regulatory Information |
Display
| Backlight |
D-LED |
| Blue Light Filter |
Yes |
| Brightness |
400 nits |
| Camera |
48 MP (Optional) |
| Color Depth |
10bit |
| Refresh Rate |
60 Hz |
| Resolution |
3840 x 2160 (4K UHD) |
| Screen Size |
86 inch |
| Touch Accuracy |
± 2 mm |
| Touch Points |
40 Points Multi Touch |
| Touch Resolution |
32767 × 32767 |
| Touch Response Time |
8 ms |
| Touch Technology |
Capacitive |
| Viewing Angle |
178° (H) / 178° (V) |
Performance
| Graphics |
ARM Mali-G52 MP8 (8EE) |
| Operating System |
Android 14 |
| Processor |
Quad-core A73 + Quad-core A53, 2.2 GHz + 2.0 GHz |
Audio
| Audio In |
Audio In × 1 |
| Audio Out |
Audio Out × 1 |
| DisplayPort |
DP In (4K@60 Hz) × 1 |
| Microphone |
8 array microphones, 6 m–10 m pickup range |
| Speaker Output |
2 × 20 W and 1 × 20 W |
| Speaker Type |
Built-in Speakers |
Connectivity
| Bluetooth |
Bluetooth 5.2 |
| Ethernet |
RJ45 (1000 Mbps Port) × 2 |
| HDMI Inputs |
HDMI In (4K@60 Hz) × 2; HDMI In (ARC) × 1 |
| HDMI Outputs |
HDMI Out × 1 |
| OPS Slot |
Optional |
| Serial Port |
RS232 × 1 |
| Touch USB Ports |
USB 3.0 Type-B (Touch) × 1 (Front); USB 3.0 Type-B (Touch) × 3 (Rear) |
| USB Ports |
USB 3.0 × 4, USB 2.0 × 1 |
| USB-C Ports |
4K@60 Hz, Touch, 65 W (Front); 4K@60 Hz, Touch, 15 W (Rear); Net |
| VGA Input |
VGA × 1 (Rear) |
| Wi-Fi |
Wi-Fi 6, 2.4G/5G |
Power
| Power Consumption |
250 W (basic); 450 W (max) |
Physical
| Dimensions |
1953.4 x 142.9 x 1176.2 mm |
| Operating Humidity |
10% to 90% RH |
| Operating Temperature |
0°C to 40°C |
| Shipping Dimensions |
2044 x 200 x 1280 mm |
| Surface Protection |
Anti-Glare Smooth Glass |
| VESA Mount |
800 × 600 mm (VESA) |
| Weight |
60 kg |
Frequently Asked Questions
Where can I buy the Dahua LPH86-ST473 86-Inch Smart Interactive Whiteboard in the UAE?
Procure.ae is an authorized UAE supplier of the Dahua LPH86-ST473 86-Inch Smart Interactive Whiteboard, with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, free demos, and procurement-ready quotations.
What is the Dahua interactive flat panel used for?
The Dahua LPH86-ST473 86-Inch Smart Interactive Whiteboard is the ideal solution for modern classrooms and dynamic conference rooms seeking advanced collaboration technology . With its expansive 86-inch 4K UHD display , this interactive whiteboard transforms presentations and brainstorming.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Capacitive touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 14, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
Yes — it includes a built-in camera (48 MP (Optional)) suitable for video meetings.
