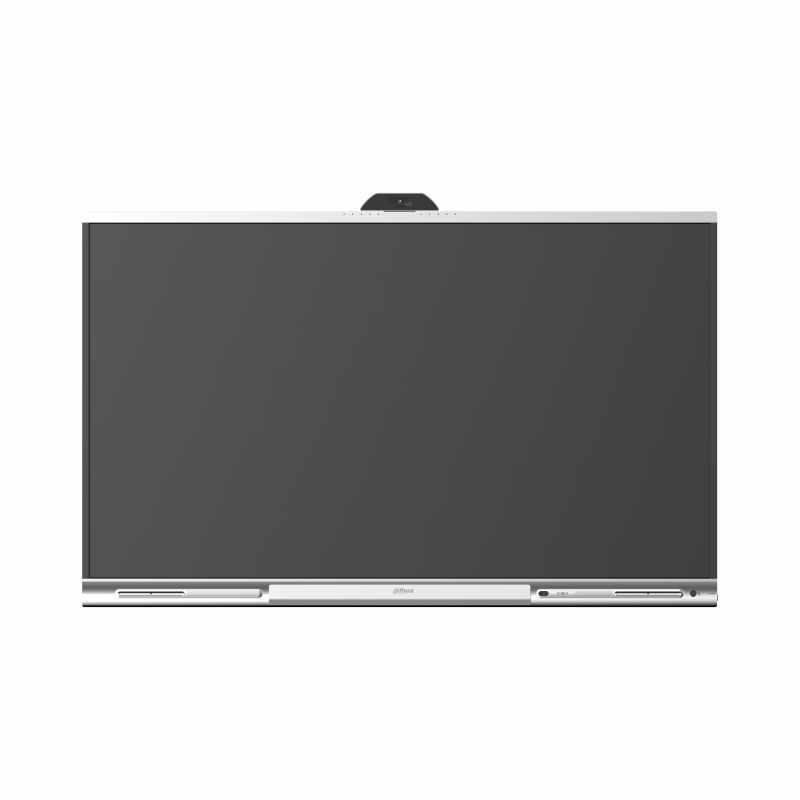

Dahua LPH86-MC470-P-S2 86-Inch Smart Interactive Whiteboard
The Dahua LPH86-MC470-P-S2 86-Inch Smart Interactive Whiteboard is a interactive flat panel available in the UAE from Procure.ae.
Upgrade your collaborative spaces with the Dahua LPH86-MC470-P-S2 86-Inch Smart Interactive Whiteboard , designed to enhance productivity in modern classrooms and corporate environments. This advanced interactive display offers a stunning 4K Ultra HD resolution for crystal-clear visuals, ensuring every lesson or presentation is vibrant and engaging. With multi-touch support, the smart board allows seamless interaction for multiple users, making group activities intuitive and dynamic. Its robust wireless connectivity enables easy device integration, supporting laptops, tablets, and smartphones.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key features
Specifications
| Key Features | Pen and touch differentiation, NFC card reader, Sensors: Ambient light |
| What's in the Box | Power cord, Remote control, Stylus pen × 2, Wall mount bracket, Quick start guide, Wall-mount screw pack, Legal and Regulatory Information |
| Backlight | Direct LED |
| Brightness | 450 nits |
| Camera | 52 MP (Android), 8 MP (Windows) |
| Color Depth | 10-bit (1.07 billion colours) |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Screen Size | 86 inch |
| Touch Points | 50-point multi-touch |
| Touch Resolution | 32767 x 32767 |
| Touch Response Time | ≤ 3.3 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° (H) / 178° (V) |
| Graphics | Arm Mali-G52 MP8 (8EE) |
| Operating System | Android 14 |
| Processor | ARM 4x Cortex-A73 + 4x Cortex-A53, 2.2 GHz + 2.0 GHz |
| RAM | 20 GB |
| Storage | 128 GB |
| Audio Out | Audio out × 1 |
| Microphone | 16-mic array, 8–12 m pickup range |
| Pickup Range | 8–12 m |
| Speaker Output | 2 × 20 W + 20 W |
| Speaker Type | Built-in |
| Bluetooth | Bluetooth 5.3 |
| Ethernet | RJ45 (Gigabit) × 1 |
| HDMI Inputs | HDMI In (HDMI 2.0) × 2 |
| HDMI Outputs | HDMI Out × 1 |
| OPS Slot | Optional |
| Serial Port | RS-232 × 1 |
| Touch USB Ports | Touch USB × 1 |
| USB Ports | USB 3.2 Gen 1 × 3, Micro USB 2.0 × 1 |
| USB-C Ports | USB-C (USB 3.2 Gen 1, DP in, touch, 65 W charging) |
| Wi-Fi | Wi-Fi 6 (802.11ax), 2.4/5 GHz |
| Power Consumption | 425 W |
| Standby Power | ≤ 0.5 W |
| Dimensions | 1955.3 x 93.3 x 1232.2 mm |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0°C to 40°C |
| Shipping Dimensions | 2090 x 227 x 1315 mm |
| Surface Protection | Anti-glare smooth glass |
| VESA Mount | 800 x 400 mm |
| Weight | 73 kg |
