DahuaInteractive Flat PanelsSKU LPH75-ST470-P

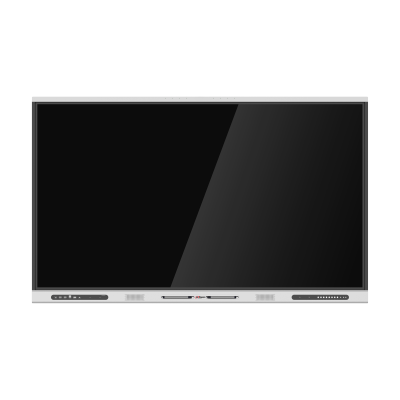

Dahua LPH75-ST470-P 75-Inch Smart Interactive Whiteboard
The Dahua LPH75-ST470-P 75-Inch Smart Interactive Whiteboard is a interactive flat panel available in the UAE from Procure.ae.
The Dahua LPH75-ST470-P 75-Inch Smart Interactive Whiteboard is a cutting-edge solution for collaborative presentations in modern classrooms and boardrooms. With its expansive 75-inch 4K UHD display, this interactive whiteboard delivers crystal-clear visuals and exceptional touch responsiveness. The multi-touch screen allows seamless interaction for multiple users, making it perfect for brainstorming, teaching, or business meetings. Integrated with advanced wireless connectivity , the Dahua LPH75-ST470-P supports easy device integration, allowing effortless sharing and annotation of.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 75-Inch 4K UHD Display
- Multi-Touch Technology
- Integrated Wireless Connectivity
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
75-Inch 4K UHD Display
Experience vivid visuals with ultra-high definition resolution for detailed presentations and lessons.
02
Multi-Touch Technology
Supports simultaneous touch points, enabling collaborative interaction for multiple users.
03
Integrated Wireless Connectivity
Effortlessly connect laptops, tablets, and smartphones for seamless content sharing.
04
Smart Annotation Tools
Write, highlight, and draw directly on the screen with intuitive digital pen support.
05
Easy Screen Mirroring
Mirror devices wirelessly for efficient meetings and dynamic teaching sessions.
06
Anti-Glare Coating
Reduces reflections and ensures clear visibility in any lighting condition.
07
Durable Construction
Built with quality materials for long-lasting use in high-traffic environments.
08
Flexible Mounting Options
Compatible with wall mounts or mobile stands for versatile installation.
Specifications
47 specificationsGeneral
Key FeaturesSensors: Ambient light
What's in the BoxPower cord × 1, HDMI cable × 1, Passive stylus pen × 2, Quick start guide × 1, Wall mount bracket × 1, Accessory package × 1, Remote control × 1, Legal and Regulatory Information × 1
Display
BacklightDirect LED
Brightness400 nits
Camera48 MP (Optional)
Color Depth10-bit (1.07 billion colours)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size75 inch
Touch Accuracy±1 mm
Touch Points40-point multi-touch
Touch Resolution32767 x 32767
Touch Response Time≤ 10 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsArm Mali-G52 MP8 (8EE)
Operating SystemAndroid 11
ProcessorARM 4x Cortex-A73 + 4x Cortex-A53, 2.2 GHz + 2.0 GHz
RAM8 GB
Storage64 GB (optional 128 GB)
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort In × 1
Microphone8-mic array, 6–10 m pickup range
Pickup Range6–10 m
Speaker Output2 × 15 W max + 20 W max
Speaker TypeBuilt-in
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 (Gigabit) × 2
HDMI InputsHDMI In × 3
HDMI OutputsHDMI Out × 1
OPS SlotOptional
Serial PortRS-232 × 1
Touch USB PortsTouch USB 3.0 × 4
USB PortsUSB-A 3.0 × 4, USB-A 2.0 × 1, Micro USB × 1
USB-C PortsUSB-C (touch, 4K @ 60 Hz, 65 W charging (Front), 15 W charging (Rear))
VGA InputVGA × 1
Wi-FiWi-Fi 6 (802.11ax), 2.4/5 GHz
Power
Power Consumption150 W (typical); 350 W (max)
Standby Power≤ 0.5 W
Physical
Dimensions1707.5 x 93 x 1050 mm
Operating Humidity10% to 90% RH
Operating Temperature0°C to 40°C
Shipping Dimensions1800 x 200 x 1165 mm
Surface ProtectionAnti-glare smooth glass
VESA Mount600 x 400 mm
Weight54 kg
Questions
Can’t find your answer? Ask on WhatsApp
What is the Dahua interactive flat panel used for?
The Dahua LPH75-ST470-P 75-Inch Smart Interactive Whiteboard is a cutting-edge solution for collaborative presentations in modern classrooms and boardrooms. With its expansive 75-inch 4K UHD display, this interactive whiteboard delivers crystal-clear visuals and exceptional touch responsiveness..
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 11, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
