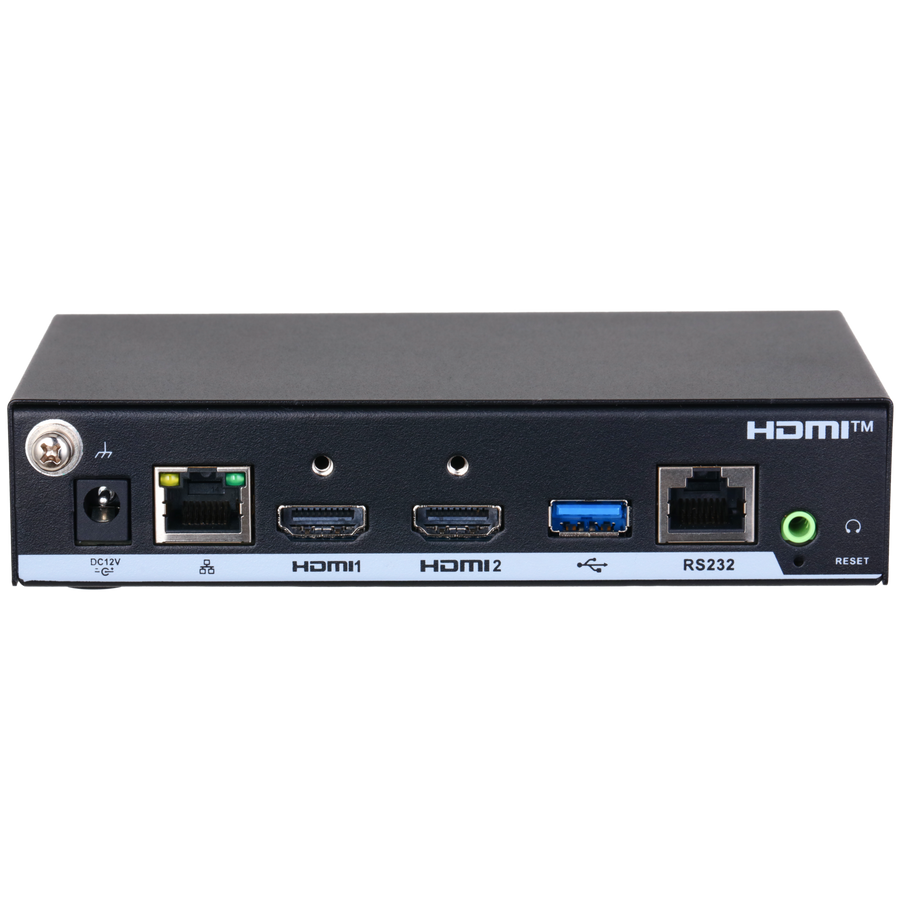

Dahua 2-Channel UHD Network Video Decoder – NVD0200FX-A01

The Dahua NVD0200FX-A01 is a 2-channel UHD network video decoder that drives two HDMI displays from ONVIF, RTSP and Dahua network streams. It decodes H.264 and H.265 video and can splice up to 20 screens into one video wall. It suits monitoring walls, control rooms and lobbies. Procure.ae supplies it in the UAE.

The NVD0200FX-A01 has two HDMI outputs and decodes up to 2 channels of 8MP@25 fps, 3 channels of 6MP@25 fps, 5 channels of 5MP@25 fps, 7 channels of 3MP@25 fps or 10 channels of 1080p@30 fps at the same time. Its HDMI outputs support 1920 x 1080 at 60 Hz by default, with 1280 x 1024, 1280 x 720 and 1024 x 768 options. The unit can split the display into 1, 4, 6, 8, 9, 16, 25 or 36 windows, and it supports custom M x N layouts up to 25 cells.

The decoder fits network video monitoring walls where cameras and recorders run on ONVIF, RTSP or Dahua private protocols. It supports screen splicing for up to 20 screens, scheme tours with scheduled schemes, and customised OSD text for location labels. It is compatible with Dahua DSS Pro and supports Hikvision private protocol access. The unit is rated for -10 to 55 °C and uses 24 W maximum power.
