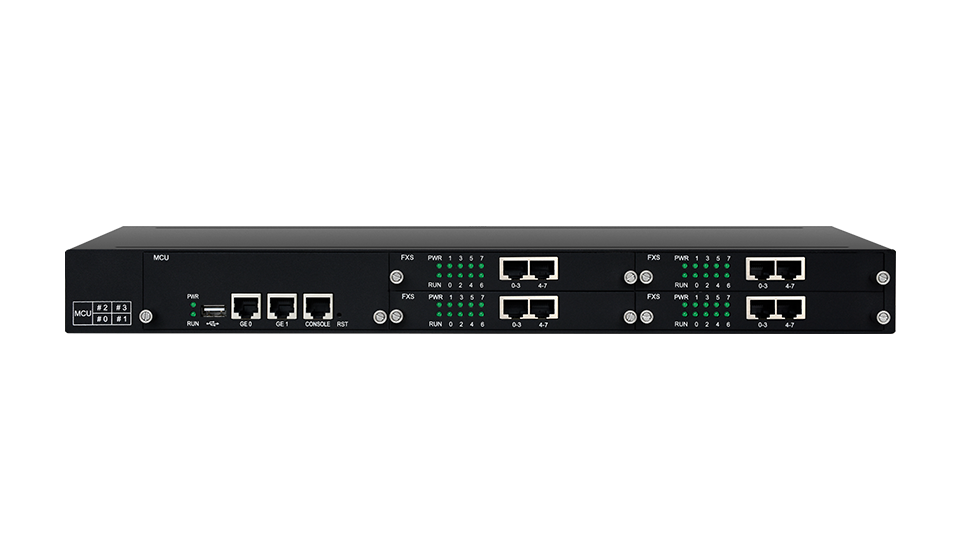

Dinstar DAG3000-32S/O Hybrid VoIP Gateway
- SKU: DAG3000-32S/O
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Dinstar DAG3000-32S/O Hybrid VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.The Dinstar DAG3000-32S/O is a high-end modular analog VoIP gateway designed for organizations that need large-scale analog-to-IP integration with room to expand. It supports up to 32 FXS/FXO... See More
The Dinstar DAG3000-32S/O Hybrid VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.
The Dinstar DAG3000-32S/O is a high-end modular analog VoIP gateway designed for organizations that need large-scale analog-to-IP integration with room to expand. It supports up to 32 FXS/FXO ports, with each board providing 8 ports, allowing the platform to be configured according to deployment needs.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Up to 32 FXS / FXO ports
- Modular hardware design with 8-port boards
- Power failover and IP/SIP failover
- SIP, IMS, and SIP v2.0 over UDP/TCP/TLS
- T.38 / T.30 fax and pass-through support
- Flexible routing and dial plan
- 3-way conference, call transfer, call forwarding, voicemail, MWI, music on hold
- QoS, VLAN tagging, TLS/SRTP, SNMP/TR-069
Ideal for: offices, schools, and government facilities across Dubai, Abu Dhabi, Sharjah and the wider GCC.
General
| Name | Dinstar DAG3000-32S/O Hybrid VoIP Gateway |
| Key Features | T.38/pass-through fax, Modem/POS support, Cloud-based management, Auto provisioning, CDR |
| Type | Hybrid Analog VoIP Gateway |
Performance
| Storage Conditions | Temperature: -20 to 80 °C |
Audio
| Audio Codecs | G.711 A/μ, G.723.1, G.729 A/B, AMR, G.726, iLBC |
| Voice Quality | G.168 echo cancellation (128 ms), VAD, CNG, silence suppression |
Connectivity
| Connectivity | Up to 32 FXS/FXO (modular), Ethernet, SIP |
| Ethernet | 2 x Gigabit Ethernet |
| Expansion | 4 user board slots, 8 FXS/FXO ports per board |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| Ports | 8 to 32 FXS/FXO (RJ45, 4 ports per connector) |
| Protocols | SIP 2.0 (UDP/TCP), RFC3261, SDP, RTP (RFC2833), STUN, IPv4/IPv6, PPPoE, DHCP, OpenVPN, SNMP, TR069/TR181 |
| Serial Port | RS-232 × 1 (console, 115200 bps) |
Power
| Power Consumption | 20 W (typical) |
Physical
| Dimensions | 437 x 330 x 44 mm |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Operating Temperature | 0°C to 45°C |
| Weight | 3.6 kg |
Compliance
| Security Features | SIP TLS, SRTP |
Frequently Asked Questions
Where can I buy the Dinstar DAG3000-32S/O Hybrid VoIP Gateway in the UAE?
Procure.ae is an authorized UAE supplier of the Dinstar DAG3000-32S/O Hybrid VoIP Gateway, with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, free demos, and procurement-ready quotations.
What is the Dinstar voip & telephony used for?
The Dinstar DAG3000-32S/O is a high-end modular analog VoIP gateway designed for organizations that need large-scale analog-to-IP integration with room to expand.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Is this certified for Microsoft Teams and Zoom?
It works with major video platforms; ask us for the exact certifications on this model.
What is this — a webcam, video bar, or full room system?
Contact us and we'll match the right device to your room size.
Request a quote: WhatsApp wa.me/97145465041 or email info@procure.ae.
