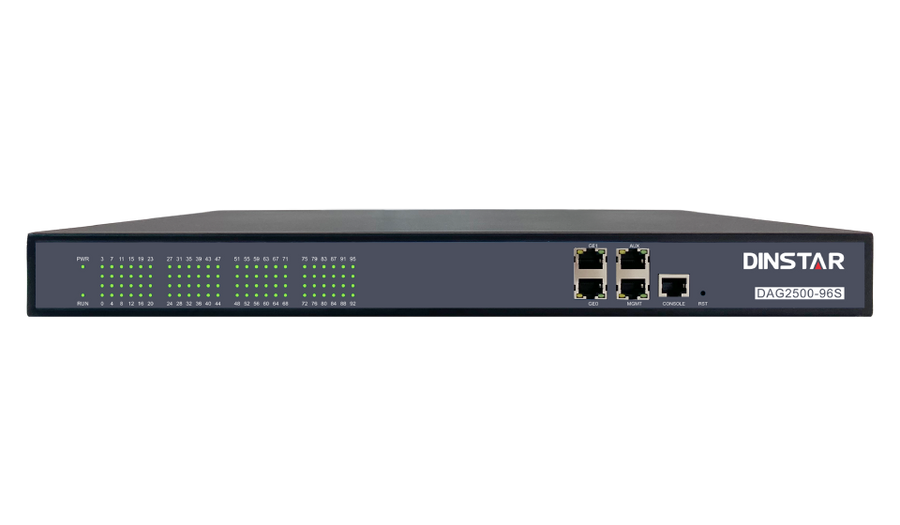

DAG2500-48/72/96S Analog VoIP Gateway

The DAG2500-48/72/96S Analog VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.

The DAG2500-48/72/96S Analog VoIP Gateway is a high-performance FXS VoIP gateway designed to connect analog telephones, fax machines, and legacy PBX systems to modern IP-based communication networks. It enables businesses to migrate to VoIP while preserving existing analog infrastructure.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type

High-Density Analog FXS VoIP Gateway

Key features

FXS ports for analog phone and fax connectivity

SIP v2.0 compatibility with major VoIP platforms

High-quality voice with echo cancellation and noise suppression

Flexible dial plans and intelligent routing

Support for T.38 and pass-through fax

Web-based management, SNMP, and remote provisioning

Secure VoIP with firewall and encryption support

Scalable architecture for growing deployments

Specifications

General
Key Features	Cloud-based NMS, CDR, Network capture, 5 km max line length
Type	High-Density Analog FXS VoIP Gateway

Performance
Storage Conditions	Temperature: -20 to 80 °C

Audio
Audio Codecs	G.711 A/μ, G.723.1, G.729 A/B, G.726, iLBC, AMR, AMR-GSM, Opus (optional)
Voice Quality	Echo cancellation (128 ms)

Connectivity
Connectivity	48/72/96 FXS (RJ45/RJ21), Ethernet, SIP
Ethernet	2 x 10/1000 Base-T, 1 x 10/100 Mbps Ethernet
Input Voltage	100-240 V AC, 50/60 Hz
Ports	48 / 72 / 96 x FXS (RJ45 or RJ21 50-pin)
Protocols	SIP 2.0 (UDP/TCP), RFC3261, RTP/RTCP, STUN, IPv4/IPv6, SNMP, TR069
Serial Port	RS-232 × 1 (console, 115200 bps)

Power
Power Consumption	95 W

Physical
Dimensions	440 x 280 x 44 mm
Operating Humidity	10% to 90% RH (non-condensing)
Operating Temperature	0°C to 45°C
Rack Units	1U

Compliance
Certifications	CE, FCC
Security Features	TLS, SRTP, Web/SSH ACL, RADIUS authentication
