DAG1000-4S(GE) Analog VoIP Gateway — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
Dinstar · DAG1000-4S-GE · VoIP & Telephony

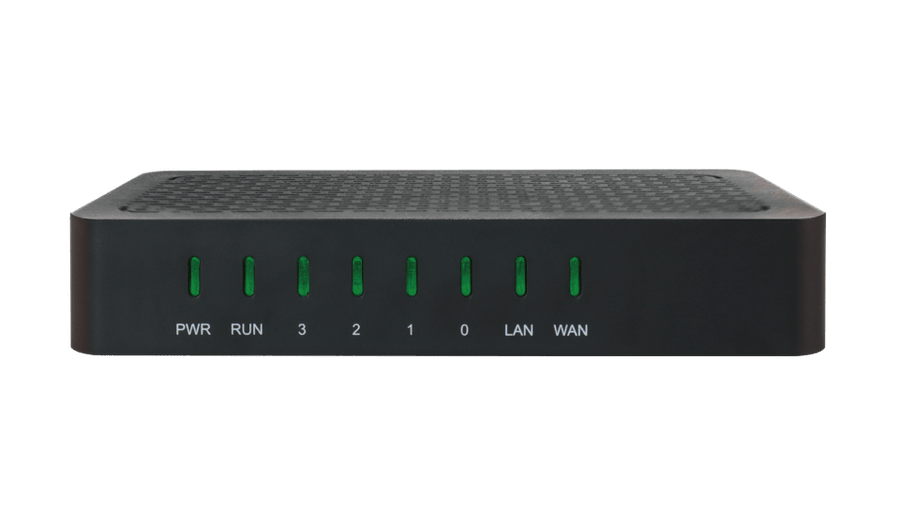

DAG1000-4S(GE) Analog VoIP Gateway

DAG1000-4S(GE) Analog VoIP Gateway

The DAG1000-4S(GE) Analog VoIP Gateway is a voip & telephony available in the UAE from Procure.ae.

The DAG1000-4S(GE) Analog VoIP Gateway is a high-performance FXS VoIP gateway designed to connect analog telephones, fax machines, and legacy PBX systems to modern IP-based communication networks. It enables businesses to migrate to VoIP while preserving existing analog infrastructure.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Analog FXS VoIP Gateway
Weight
0.3 kg

Key features

01
FXS ports for analog phone and fax connectivity
02
SIP v2.0 compatibility with major VoIP platforms
03
High-quality voice with echo cancellation and noise suppression
04
Flexible dial plans and intelligent routing
05
Support for T.38 and pass-through fax
06
Web-based management, SNMP, and remote provisioning
07
Secure VoIP with firewall and encryption support
08
Scalable architecture for growing deployments

Specifications

General
Key FeaturesFax over IP (T.38, pass-through, up to 14.4 kbps), TR069 and SNMP, Auto provisioning, Cloud-based management, OpenVPN
TypeAnalog FXS VoIP Gateway
Audio
Audio CodecsG.711 A/μ, G.723.1, G.729 A/B, iLBC, Opus
Voice QualityG.168 echo cancellation (128 ms), adaptive jitter buffer, VAD, CNG
Connectivity
Conference Calling3-party audio conference
Connectivity4 x FXS (RJ11), Gigabit Ethernet, SIP
Ethernet1 x WAN, 1 x LAN (Gigabit, RJ45)
Input Voltage100-240 V AC, 50/60 Hz (12 V DC, 1 A)
ProtocolsSIP 2.0 (UDP/TCP), RFC3261, SDP, RTP (RFC2833), SIP over TLS, RTP/SRTP/RTCP, NAT (STUN), IPv4/IPv6 dual stack
Power
Power Consumption5 W (typical)
Physical
Dimensions242 x 152 x 40 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0°C to 45°C
Weight0.3 kg
QR code to DAG1000-4S(GE) Analog VoIP Gateway on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
