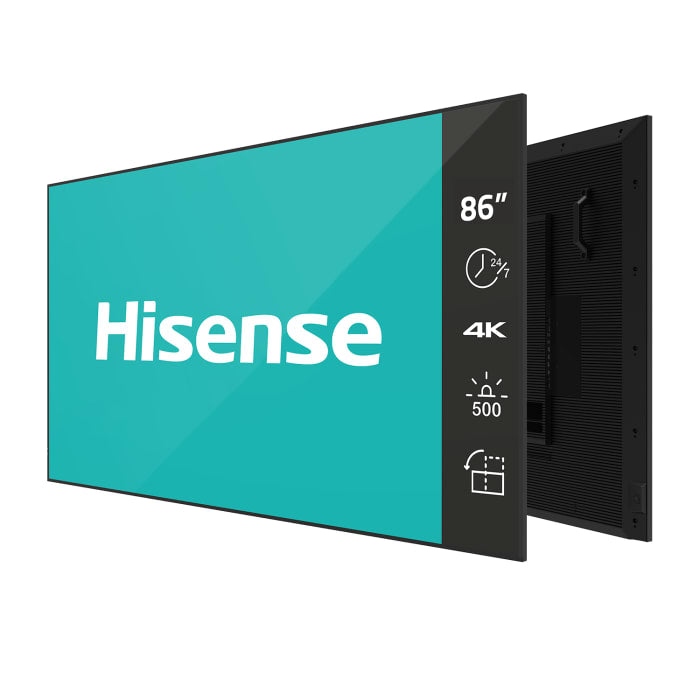

HiSense 86” 4K IPS UHD Digital Signage Display - 24/7 Operation – 86DM66D

The HiSense 86” 4K IPS UHD Digital Signage Display - 24/7 Operation – 86DM66D is a digital signage available in the UAE from Procure.ae.

Upgrade your business environment with the HiSense 86” 4K IPS UHD Digital Signage Display (SKU: 86DM66D), engineered for vibrant, professional-grade digital signage in demanding commercial settings. This advanced 86-inch display delivers ultra-crisp 4K UHD resolution and stunning color fidelity thanks to its IPS panel technology , ensuring clear, attention-grabbing visuals from any angle. Designed for 24/7 operation , it’s perfect for retail, hospitality, corporate lobbies, and educational institutions seeking a reliable large format display for continuous use. The slim, modern design.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Screen Size

86 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

500 nits

Weight

38.2 kg

Key features

86-Inch Ultra-Large Display

Command attention with a massive screen ideal for high-traffic environments.

4K UHD Resolution

Delivers crystal-clear images and sharp text for maximum content impact.

IPS Panel Technology

Ensures vibrant colors and wide viewing angles, perfect for group viewing.

24/7 Continuous Operation

Built for reliability and endurance in commercial settings.

High Brightness & Anti-Glare

Maintains vivid visuals even under bright ambient lighting.

Slim, Modern Design

Blends seamlessly into any professional interior.

Comprehensive Connectivity

Supports HDMI, USB, and LAN for versatile media integration.

Remote Management Capabilities

Control and update content from anywhere with network access.

Specifications

General
Key Features	Wireless Screen Sharing, Mobile Device Management, Conformal Coating, Clean Cable Solution, Narrow Bezel, Anti-glare Coating, Smart Power
What's in the Box	Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Battery (AAA) × 2, RS232 Converter Cable

Display
Backlight	Direct LED
Bezel Size	10.3 mm (T/L/R), 10.8 mm (B)
Brightness	500 nits
Color Depth	10-bit (1.07 billion colours)
Resolution	3840 x 2160 (4K UHD)
Screen Size	86 inch
Viewing Angle	178° (H) / 178° (V)

Performance
Operating System	Android 11
Processor	ARM 4x Cortex-A55
RAM	3 GB
Storage	32 GB

Audio
Audio Out	3.5 mm audio out × 1
DisplayPort	DisplayPort 1.2a × 1
Speaker Output	2 × 10 W

Connectivity
Bluetooth	Built-in
Ethernet	RJ45 × 1
HDMI Inputs	HDMI In × 2
HDMI Outputs	HDMI Out × 1
Serial Port	RS-232 × 1
USB Ports	USB-A 2.0 × 1, USB-A 3.0 × 1
Wi-Fi	Built-in

Power
Battery	2 x AAA
Power Consumption	200 W (typical), 325 W (max)
Standby Power	< 0.5 W

Physical
Dimensions	1926.6 x 1095.5 x 64.2 mm
Duty Cycle	24/7
Operating Humidity	10% to 80% RH
Operating Temperature	0°C to 40°C
Shipping Dimensions	2117 x 1298 x 269 mm
VESA Mount	600 x 400 mm
Weight	38.2 kg
