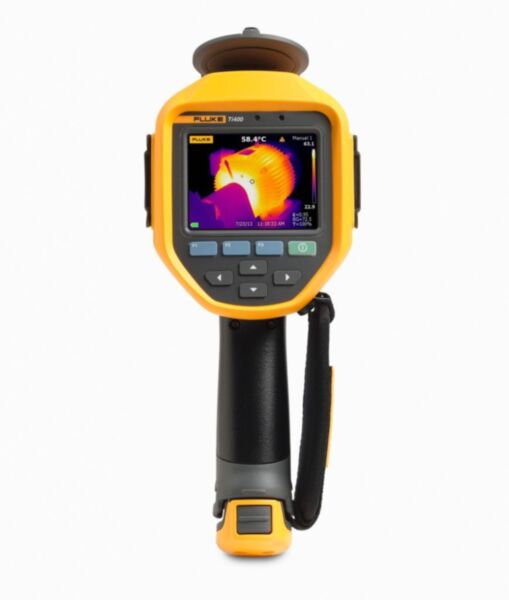

Fluke Thermal Imager, Ti400 9Hz
- SKU: Fluke Ti400-9Hz
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Fluke Ti400 9Hz Thermal Imaging Camera is a professional 320x240 IR camera with IR-OptiFlex auto focus and Fluke MSX image enhancement for sharp, detailed electrical and mechanical thermographic inspection across the UAE.The Fluke Ti400 is positioned in the professional tier of Fluke's thermal... See More
The Fluke Ti400 9Hz Thermal Imaging Camera is a professional 320x240 IR camera with IR-OptiFlex auto focus and Fluke MSX image enhancement for sharp, detailed electrical and mechanical thermographic inspection across the UAE.
The Fluke Ti400 is positioned in the professional tier of Fluke's thermal camera range with a 320x240 detector resolution, Fluke's IR-OptiFlex focus system — which maintains sharp focus from 15cm to infinity without a separate close-up lens — and MultiSharp Focus Mode that captures multiple focus-distance images and blends them into a single all-in-focus image for complex scenes with components at different distances. The MSX (Multi-Spectral Dynamic Imaging) image enhancement overlays the detail from a simultaneous visible-light camera image onto the thermal image, adding sharp structural detail (text labels, wire routes, component outlines) to the thermal image that would otherwise be invisible in the low-resolution thermal output — making it significantly easier to identify exactly which component in a panel or machine is the thermal anomaly. The Ti400 includes voice annotation for hands-free field notes recorded directly to image files, and Fluke Connect wireless for real-time image transfer and team sharing.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- 320x240 Detector Resolution – Professional-grade thermal resolution appropriate for electrical switchgear, motor, and building inspection applications.
- IR-OptiFlex Fixed Focus System – Maintains sharp focus from 15cm to infinity without manual focus adjustment — includes a close-focus zone for component-level inspection.
- MultiSharp Focus Mode – Captures images at multiple focus distances and combines them into a single all-in-focus composite for complex multi-distance scenes.
- Fluke MSX Multi-Spectral Dynamic Imaging – Overlays visible-light structural detail onto the thermal image for accurate component identification and precise defect location.
- Fluke Connect Wireless – Wi-Fi image transfer to the Fluke Connect app and SmartView reporting software for real-time team sharing and report generation.
- Voice Annotation – Records voice notes directly to image files for hands-free field documentation during inspection.
- Large Touchscreen Display – Convenient touchscreen for image management, colour palette selection, and spot temperature measurement configuration.
- 9Hz Frame Rate (Export Compliant) – 9Hz compliant version for UAE and international market deployment.
Ideal for: thermographic inspection professionals, predictive maintenance engineers, and electrical and mechanical maintenance teams conducting scheduled electrical panel surveys, bearing inspections, and building thermography across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | Fluke Thermal Imager, Ti400 9Hz |
| Country of Origin | USA |
| Dimensions | 28 x 12 x 14 mm |
| Weight | 0.6 kg |
| Battery Life | Four+ hours continuous use (assumes 50% brightness of LCD) |
| Resolution | 320 x 240 |
| Temperature Range | -20°C to 1200°C (-4°F to 2192°F) |
No datasheet available.
Frequently Asked Questions
Where can I buy the Fluke Ti400 in the UAE?
Procure.ae is an authorized UAE supplier of Fluke thermal imaging cameras, with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, free demonstrations, and procurement-ready quotations for industrial and facilities inspection buyers.
What is Fluke MSX and why is it useful for electrical inspection?
MSX (Multi-Spectral Dynamic Imaging) takes the simultaneous visible-light camera image and extracts the edges, text, and structural details, then overlays them as a translucent layer onto the thermal image. The result is a thermal image where you can read the circuit breaker labels, see the cable routes, and identify individual terminals — detail that is completely invisible in a pure thermal image. For electrical panel surveys, MSX makes it immediately obvious which specific breaker, connection, or cable shows the thermal anomaly, without having to mentally cross-reference the thermal image against a separate visible photograph of the panel.
Does it include a warranty?
Procure.ae provides manufacturer-backed warranty support for all Fluke products. Contact us for the full warranty details applicable to this model.
Is this available with delivery and support across the UAE?
Yes — Procure.ae supplies it across Dubai, Abu Dhabi, Sharjah and the wider GCC, with procurement-ready quotations and after-sales support.
Can I get a demo or bulk/tender pricing?
Yes — we offer demos and volume pricing for corporate, education, and government buyers. Contact us for a tailored quote.
Request a quote: WhatsApp wa.me/97145465041 or email info@procure.ae.
