Overview

Your view of infrared technology is about to change 180°. The answer is right before your eyes, even when your target isn't.

Navigate, capture and process images faster
	Easily navigate over, under and around objects with the 180° articulating lens and see the image before you capture it Capture images with the only 5.7 inch responsive touchscreen LCD with on-camera analytics for in-field image analysis¹ Save time with post-capture image processing - edit emissivity, background temperature, transmissivity, palettes, color alarms, IR-Fusion and enable/disable markers all on cameras
In-Focus premium image quality with the touch of a button
	Premium in-field viewing experience with the largest 5.7 inch responsive touchscreen LCD in its class¹ - 150% more viewing area³ Enhanced image quality and temperature measurement accuracy – turn your 320x240 images into 640x480 images, that's 4x's the resolution and pixels with SuperResolution (in software) LaserSharp® Auto Focus, exclusive to Fluke, uses a built-in laser distance meter that calculates and displays the distance to your designated target² with pinpoint accuracy² Find subtle temperature differences easier - instantly improve thermal sensitivity from 50mK to 40mK with Filter mode Optional field installable wide angle and telephoto lenses

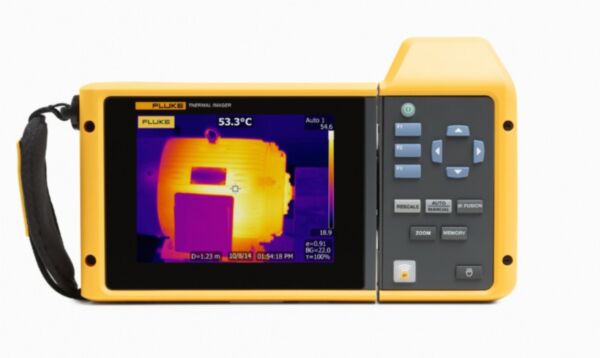

• The largest 5.7 inch responsive LCD touchscreen for a 320x240 infrared camera

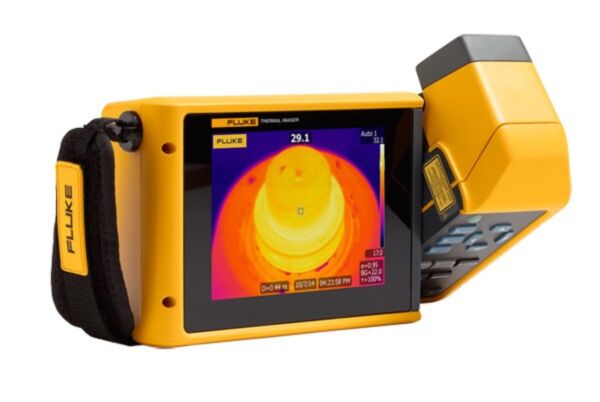

• 180° articulating lens for those tough shots
• Premium image quality with leading spatial resolution for a 320x240 infrared camera¹
• Get up to 4 times the resolution and pixels than standard mode with SuperResolution (up to 307,200 pixels)
• LaserSharp® Auto Focus - utilizing precision laser technology, focus on your target with pinpoint accuracy and get the correct image and temperature measurements you need
• Built-in laser distance meter - calculates the distance to your designated target up to 100 feet (30 meters) and displays the distance on the image
• Quick and easy in-field analysis with IR-Fusion® technology and advanced touchscreen functions:
  • Continuous level and span adjustment
  • Filter mode for improved thermal sensitivity
• Post capture image editing includes:
  • Emissivity
  • Background temperature
  • Transmissivity
  • Palettes
  • Color alarms
  • IR-Fusion
  • Enable/disable markers
• Connect to the largest network of wireless test and measurement tools with Fluke Connect® (not available in all countries)
• Temperature measurements up to 850 °C
• Light and ergonomic design with neck and hand strap for all day use
• Optional field installable wide angle and telephoto lenses
