Fluke BTL21 Interactive Battery Analyzer Test Probe with Temperature Sensor
- SKU: Fluke-BTL21
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Fluke BTL21 Interactive Battery Analyzer Test Probe with Temperature Sensor is a replacement probe accessory for the Fluke 500 Series Battery Analyser, adding integrated temperature compensation for more accurate battery resistance measurements in field environments across the UAE.The Fluke BTL21 is the interactive... See More
The Fluke BTL21 Interactive Battery Analyzer Test Probe with Temperature Sensor is a replacement probe accessory for the Fluke 500 Series Battery Analyser, adding integrated temperature compensation for more accurate battery resistance measurements in field environments across the UAE.

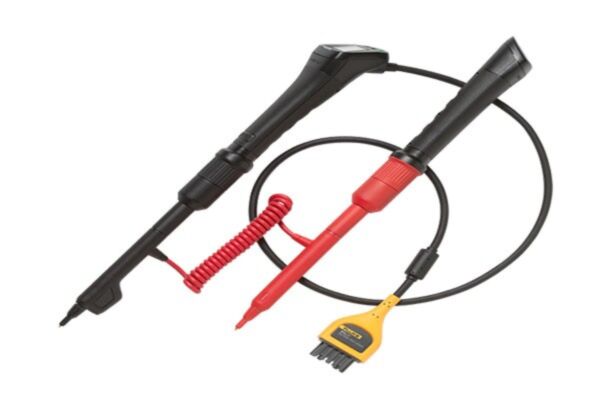

The Fluke BTL21 is the interactive test probe accessory for the Fluke 500 Series Battery Analysers (BT510, BT520, BT521). The BTL21 probe provides the physical Kelvin four-point contact tips that clamp onto individual battery cell terminals for internal resistance measurement, and includes an integrated temperature sensor that measures the battery cell surface temperature at the point of contact. Temperature correction is essential for accurate battery resistance comparison — battery internal resistance changes with temperature, and a reading taken on a cold battery will be higher than the same battery measured at normal operating temperature. The BTL21's integrated temperature sensor allows the instrument to apply temperature compensation to resistance readings automatically, producing corrected values that can be accurately compared to the battery's rated room-temperature resistance specification and to previous measurements taken under different temperature conditions.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Four-Point Kelvin Contact Tips – Dual-pair contact clips provide accurate four-wire Kelvin resistance measurement without contact resistance error.
- Integrated Temperature Sensor – Measures battery cell surface temperature at the contact point for automatic temperature compensation of resistance readings.
- Temperature-Compensated Resistance Measurement – Corrects internal resistance readings to a standard reference temperature for accurate comparison to rated values and historical measurements.
- Fluke 500 Series Compatible – Designed for use with the Fluke BT510, BT520, and BT521 battery analysers as the dedicated field test probe.
- Replacement Probe Availability – Available as a replacement probe to extend the service life of the 500 Series analyser when probe contacts wear.
- Compact Probe Geometry – Designed to access individual battery cells in multi-cell VRLA battery strings in UPS and telecoms racks.
- Durable Contact Tips – Hardened contact tips maintain reliable electrical contact through repeated test cycles on corroded and coated battery terminals.
- Cable for Remote Measurement – Adequate lead length to position the analyser away from the battery string while probing individual cells.
Ideal for: UPS maintenance engineers, telecoms power engineers, and critical power infrastructure maintenance teams using the Fluke 500 Series Battery Analyser for battery string condition monitoring across data centres, telecoms sites, and substation DC systems in Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | Fluke BTL21 Interactive Battery Analyzer Test Probe with Temperature Sensor |
| Country of Origin | USA |
| Dimensions | 165 x 30 x 30 mm |
| Power Source | Powered by Analyzer Device |
| Type | Battery Analyzer Test Probe |
| Warranty | Manufacturer's Standard Warranty Applies |
| Weight | 0.1 kg |
| Compatibility | Interactive with Temperature Sensor |
No datasheet available.
Frequently Asked Questions
Where can I buy the Fluke BTL21 probe in the UAE?
Procure.ae is an authorized UAE supplier of Fluke test instruments and accessories, with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, and procurement-ready quotations for UPS and battery maintenance buyers.
Why is temperature compensation important for battery internal resistance measurement?
Battery internal resistance has a negative temperature coefficient — it increases as temperature decreases. A VRLA battery measured at 10°C will show significantly higher resistance than the same battery at 25°C, even though its capacity is unchanged. Without temperature compensation, comparing a field reading taken in a cold outdoor cabinet to a historical reading taken in a temperature-controlled indoor UPS room would incorrectly suggest battery degradation. The BTL21's integrated temperature sensor allows the instrument to normalise all readings to a 25°C reference, eliminating temperature variation from the comparison.
Does it include a warranty?
Procure.ae provides manufacturer-backed warranty support for all Fluke products. Contact us for the full warranty details applicable to this model.
Is this available with delivery and support across the UAE?
Yes — Procure.ae supplies it across Dubai, Abu Dhabi, Sharjah and the wider GCC, with procurement-ready quotations and after-sales support.
Can I get a demo or bulk/tender pricing?
Yes — we offer demos and volume pricing for corporate, education, and government buyers. Contact us for a tailored quote.
