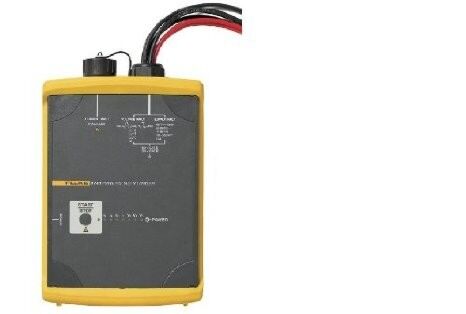

Fluke 1743-BASIC Three Phase Power Quality Logger Memobox
- SKU: Fluke 1743-BASIC
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Fluke 1743-BASIC Three-Phase Power Quality Logger is a DIN-rail-mountable three-phase power quality recording instrument for long-term continuous monitoring at switchboard level in commercial and industrial facilities across the UAE.The Fluke 1743-BASIC is a Memobox-format three-phase power quality logger designed for permanent or semi-permanent... See More
The Fluke 1743-BASIC Three-Phase Power Quality Logger is a DIN-rail-mountable three-phase power quality recording instrument for long-term continuous monitoring at switchboard level in commercial and industrial facilities across the UAE.
The Fluke 1743-BASIC is a Memobox-format three-phase power quality logger designed for permanent or semi-permanent installation in electrical switchboards and distribution panels. Unlike handheld or portable PQ analysers, the 1743-BASIC is engineered for continuous unattended monitoring — logging voltage, current, power, power factor, and power quality events (dips, swells, transients, harmonics) on all three phases simultaneously over weeks or months. The instrument interfaces to standard current transformers (CTs) already installed in the switchboard, allowing installation without disconnecting live cables. It is widely used for long-term power quality compliance monitoring to EN 50160, identifying the source and frequency of recurring PQ events that cause equipment malfunction or process interruption in UAE manufacturing, hospitality, and commercial real estate portfolios.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- DIN-Rail Memobox Format – Mounts directly inside switchboards and distribution panels for unattended long-term installation.
- Three-Phase Simultaneous Monitoring – Records all three phases and neutral simultaneously for comprehensive three-phase system analysis.
- CT Interface – Connects to existing switchboard current transformers for installation without disconnecting live conductors.
- Power Quality Event Logging – Captures and classifies voltage dips, swells, transients, and harmonic events per EN 50160 and IEC 61000-4-30.
- Harmonics Recording – Records harmonic spectrum up to the 50th harmonic for THD analysis and harmonic source identification.
- Long-Term Data Storage – Large internal memory for extended campaign logging spanning weeks or months of continuous monitoring.
- PC Software Reporting – Data download and EN 50160 compliance report generation via Fluke Power Log PC software.
- Compact Panel Footprint – Small enclosure minimises panel space consumed by the monitoring instrument.
Ideal for: power quality consultants, facilities engineers, MEP contractors, and building automation teams monitoring three-phase electrical supply quality in commercial buildings, factories, hotels, and data centres across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | Fluke 1743-BASIC Three Phase Power Quality Logger Memobox |
| Country of Origin | USA |
| Dimensions | 207 x 165 x 75 mm |
| Weight | 0.5 kg |
| Battery Life | Up to 12 hours continuous operation |
| Display | Color LCD with backlight |
| Frequency Range | 45 Hz - 65 Hz |
| IP Rating | IP65 for use in harsh environments |
No datasheet available.
Frequently Asked Questions
Where can I buy the Fluke 1743-BASIC PQ Logger in the UAE?
Procure.ae is an authorized UAE supplier of Fluke test and measurement instruments, with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, and procurement-ready quotations for power quality and facilities engineering buyers.
What is the difference between the Fluke 1743 Memobox and the Fluke 1730 series energy loggers?
The Fluke 1730 series (1732, 1734) are portable instruments designed for short to medium-term energy audit campaigns — deployed, used, and retrieved. The Fluke 1743 Memobox is designed for semi-permanent or permanent DIN-rail installation inside a switchboard for continuous long-term power quality monitoring at a fixed location. The 1743 is the right choice when you need to monitor a specific panel continuously rather than conduct a time-limited audit campaign.
Does it include a warranty?
Procure.ae provides manufacturer-backed warranty support for all Fluke products. Contact us for the full warranty details applicable to this model.
Is this available with delivery and support across the UAE?
Yes — Procure.ae supplies it across Dubai, Abu Dhabi, Sharjah and the wider GCC, with procurement-ready quotations and after-sales support.
Can I get a demo or bulk/tender pricing?
Yes — we offer demos and volume pricing for corporate, education, and government buyers. Contact us for a tailored quote.
