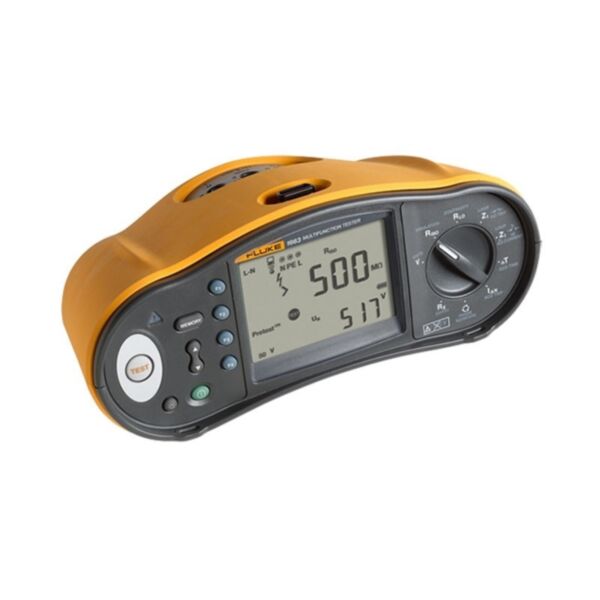

Fluke 1663 UK Multifunction Installation Tester
- SKU: Fluke-1663UK
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Fluke 1663 Multifunction Installation Tester is a comprehensive electrical installation testing instrument for verifying wiring systems to IET Wiring Regulations (BS 7671) in commercial and residential buildings across the UAE.The Fluke 1663 is Fluke's multifunction installation tester designed for electrical contractors and inspectors... See More
The Fluke 1663 Multifunction Installation Tester is a comprehensive electrical installation testing instrument for verifying wiring systems to IET Wiring Regulations (BS 7671) in commercial and residential buildings across the UAE.
The Fluke 1663 is Fluke's multifunction installation tester designed for electrical contractors and inspectors performing initial verification and periodic inspection of fixed wiring installations in compliance with BS 7671 (IET Wiring Regulations) — the UK wiring standard widely applied across the UAE and GCC for commercial building and infrastructure projects. The 1663 performs all required tests in a single instrument: insulation resistance (IR) testing at 50V, 100V, 250V, 500V, and 1000V; earth continuity and protective conductor resistance; loop impedance (Ze and Zs); prospective short-circuit current (PSCC); RCD test (type AC, A, and F); and polarity check. The UK model is configured with BS 1363 plug socket test adapter leads appropriate for UK-standard installations. Bluetooth connectivity transfers results wirelessly to the Fluke Connect app for mobile job reporting.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Full BS 7671 / IET Wiring Regulations Test Suite – Performs all required initial verification and periodic inspection tests in a single instrument.
- Insulation Resistance (IR) Testing – 50V to 1000V IR test voltage range for testing LV wiring insulation integrity.
- Loop Impedance Testing (Ze & Zs) – Measures earth fault loop impedance for prospective fault current and RCD selectivity calculations.
- RCD Testing – Tests residual current devices at rated trip current, 5x rated, and half rated for type AC, A, and F RCDs.
- Prospective Short-Circuit Current – Calculates prospective fault current at the test point for protective device adequacy checks.
- Earth Continuity – Low-resistance continuity measurement for bonding and protective conductor verification.
- Bluetooth Fluke Connect – Wireless data transfer to Fluke Connect app for mobile job card documentation and reporting.
- Memory Storage – Stores test results with circuit reference for in-field documentation and post-job reporting.
Ideal for: electrical contractors, inspection and test (I&T) engineers, and facilities engineers performing installation verification on UK-standard commercial, residential, and infrastructure wiring in the UAE and GCC.
| Name | Fluke 1663 UK Multifunction Installation Tester |
| Country of Origin | United Kingdom |
| Dimensions | 10 x 25 x 12 mm |
| Weight | 0.6 kg |
| Display Type | LCD, 320 x 240 pixels |
| Safety Rating | EN61010-1, EN61010-031, EN61557-1, EN61557-7 |
No datasheet available.
Frequently Asked Questions
Where can I buy the Fluke 1663 Multifunction Installation Tester in the UAE?
Procure.ae is an authorized UAE supplier of Fluke test and measurement instruments, with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, and procurement-ready quotations for electrical contractors and inspection teams.
Is BS 7671 / IET Wiring Regulations applicable in the UAE?
Yes — many UAE commercial building projects, particularly those managed by international contractors or developed to international standards, reference BS 7671 as the base wiring standard. DEWA and other UAE authorities have their own supplementary regulations, but the BS 7671 compliant multifunction tester (like the Fluke 1663) is widely used by UAE electrical contractors for installation verification. Confirm the applicable standard for your specific project with your authority having jurisdiction before purchasing.
Does it include a warranty?
Procure.ae provides manufacturer-backed warranty support for all Fluke products. Contact us for the full warranty details applicable to this model.
Is this available with delivery and support across the UAE?
Yes — Procure.ae supplies it across Dubai, Abu Dhabi, Sharjah and the wider GCC, with procurement-ready quotations and after-sales support.
Can I get a demo or bulk/tender pricing?
Yes — we offer demos and volume pricing for corporate, education, and government buyers. Contact us for a tailored quote.
