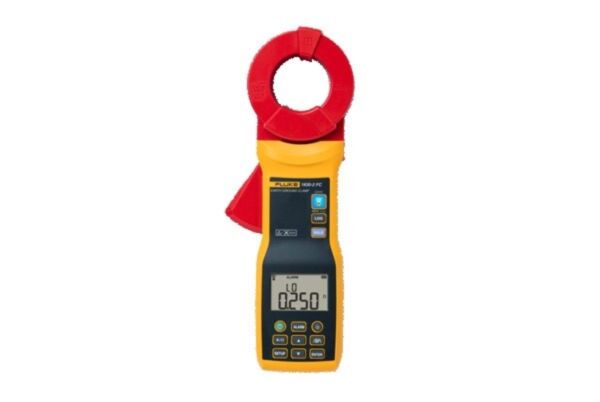

Fluke 1630-2 FC Earth Ground Clamp
- SKU: Fluke-1630-2FC
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Fluke 1630-2 FC Earth Ground Clamp is a stake-free clamp-on earth electrode resistance tester with Bluetooth and Fluke Connect wireless connectivity for fast, non-disruptive ground testing across the UAE.The Fluke 1630-2 FC is a clamp-on earth ground resistance tester that measures the resistance... See More
The Fluke 1630-2 FC Earth Ground Clamp is a stake-free clamp-on earth electrode resistance tester with Bluetooth and Fluke Connect wireless connectivity for fast, non-disruptive ground testing across the UAE.
The Fluke 1630-2 FC is a clamp-on earth ground resistance tester that measures the resistance of grounded electrodes in multi-earth neutral (MEN) and parallel-bonded earthing systems without driving stakes, disconnecting the electrode, or interrupting the electrical system. By clamping around the earth conductor or electrode lead and injecting a signal, the 1630-2 measures the loop resistance of the entire earth system path including the electrode and the return via the neutral and parallel earth path — a rapid measurement approach suited for routine inspection of earthing systems across distributed sites. The FC (Fluke Connect) variant adds Bluetooth wireless connectivity, allowing measurements to be transferred in real time to the Fluke Connect app on a smartphone or tablet for documentation, trending, and team sharing without paper records. Internal memory stores up to 32,760 measurements for long-duration data collection.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Stake-Free Clamp-On Measurement – Tests earth electrode resistance in MEN systems without driving stakes, disconnecting electrodes, or interrupting the electrical system.
- Large Jaw Opening – Clamps around earth rods, bonding conductors, and large neutral cables in panel boards and distribution systems.
- Bluetooth Fluke Connect – Wireless data transfer to the Fluke Connect app for real-time measurement logging, trending, and team documentation.
- 32,760 Measurement Internal Memory – Stores large datasets for long-duration distributed site inspection campaigns.
- Backlit Display – Clear resistance readout in low-light indoor and underground environments.
- Auto-Off Function – Extends battery life by powering down automatically when not actively used.
- Resistance Measurement Range – Suitable measurement range for typical distributed earthing system inspection.
- Rugged Construction – Built for repeated deployment in industrial, commercial, and infrastructure inspection environments.
Ideal for: electrical contractors, telecommunications engineers, facilities managers, and earthing inspection teams checking distributed earthing systems across commercial buildings, telecoms towers, and infrastructure sites in Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | Fluke 1630-2 FC Earth Ground Clamp |
| Country of Origin | USA |
| Dimensions | 234 x 75 x 53 mm |
| Power Source | 6 x AA alkaline batteries or Fluke BP500 rechargeable battery pack |
| Weight | 249.5 kg |
| Accuracy | ±2% + 2 counts (50/60 Hz, 1 A to 200 A) |
| Display Type | LCD with backlight, 2-line, 16 characters each |
| Jaw Opening Size | 35 mm (1.38 in) |
| Measurement Range | 0.025 Ω to 1500 Ω |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Resolution | 0.001 Ω (1 mA to 200 A) |
| Safety Rating | CAT IV 600 V, CAT III 1000 V, IP30 |
No datasheet available.
Frequently Asked Questions
Where can I buy the Fluke 1630-2 FC Earth Ground Clamp in the UAE?
Procure.ae is an authorized UAE supplier of Fluke test and measurement instruments, with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, and procurement-ready quotations for electrical contractors and facilities engineers.
When should I use the Fluke 1630-2 FC clamp tester instead of a 4-pole stake tester?
Use the 1630-2 FC when the earth electrodes are part of a multi-earth neutral (MEN) or parallel-bonded earthing system — such as a building with multiple earth rods, a distribution system where the neutral is earthed at multiple points, or a telecommunications site with a ring earth conductor. In these cases the clamp method is faster, requires no stakes, and causes no disruption. If you need to measure an isolated single earth rod with no parallel return path, a 4-pole stake tester like the Fluke 1621 is required instead.
Does it include a warranty?
Procure.ae provides manufacturer-backed warranty support for all Fluke products. Contact us for the full warranty details applicable to this model.
Is this available with delivery and support across the UAE?
Yes — Procure.ae supplies it across Dubai, Abu Dhabi, Sharjah and the wider GCC, with procurement-ready quotations and after-sales support.
Can I get a demo or bulk/tender pricing?
Yes — we offer demos and volume pricing for corporate, education, and government buyers. Contact us for a tailored quote.
