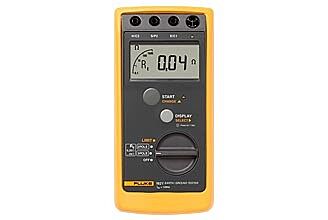

Fluke 1621 Earth Ground Tester
- SKU: Fluke 1621
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Fluke 1621 Earth Ground Tester is a 4-pole earth ground resistance measurement instrument for verifying grounding system integrity in electrical installations across the UAE.The Fluke 1621 is a dedicated earth ground resistance tester using the 4-pole (Wenner) measurement method — the internationally recognised... See More
The Fluke 1621 Earth Ground Tester is a 4-pole earth ground resistance measurement instrument for verifying grounding system integrity in electrical installations across the UAE.
The Fluke 1621 is a dedicated earth ground resistance tester using the 4-pole (Wenner) measurement method — the internationally recognised technique for accurately measuring earth electrode resistance without the interference caused by stray currents that affect simpler 2-pole methods. The 1621 drives a known test current through the earth between two outer current electrodes and measures the resulting voltage drop across two inner potential electrodes, then calculates the true resistance of the ground under test. This method is the required measurement approach for verifying earth electrode systems in compliance with IEC 60364, DEWA regulations, and BS 7671 wiring regulations. Typical applications include measuring the resistance of earth rods, earth mats, and combined earthing systems at substations, communication tower bases, and commercial building earthing installations.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- 4-Pole Earth Ground Resistance Measurement – Internationally recognised Wenner 4-pole method for accurate ground resistance without stray current interference.
- 2-Pole Measurement Mode – Quick continuity and resistance check between two points for simplified continuity verification.
- Large Backlit Display – Clear resistance readout visible in all lighting conditions including outdoor sunlight.
- Automatic Calculation – Displays calculated earth resistance directly without manual calculation steps.
- Stray Voltage Detection – Detects and warns of stray AC voltages on the ground system before testing.
- Shock-Resistant Housing – Drop and impact resistant casing for reliable field deployment on construction and electrical sites.
- Complete Test Lead Kit – Supplied with test leads, earth stakes, and reels for 4-pole measurement setup.
- Battery Powered – Field-portable with battery operation for use at remote earthing electrode locations.
Ideal for: electrical contractors, facilities engineers, substation engineers, and commissioning teams verifying earthing system compliance in UAE commercial buildings, industrial plants, and infrastructure projects across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | Fluke 1621 Earth Ground Tester |
| Country of Origin | United States |
| Dimensions | 203 x 54 x 38 mm |
| Weight | 310 kg |
| Accuracy | ±2 % ±3 digits (20 Ω range) |
| Battery Type | 9V alkaline, NEDA 1604A or IEC 6LR61 |
| Display | 3.5 digit LCD, 2000 counts, with backlight |
| IP Rating | IP40 for case, IP30 for jaw |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Safety Rating | EN61010-1 to 300V CAT III, pollution degree 2 |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
No datasheet available.
Frequently Asked Questions
Where can I buy the Fluke 1621 Earth Ground Tester in the UAE?
Procure.ae is an authorized UAE supplier of Fluke test and measurement instruments, with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, and procurement-ready quotations for electrical contractors and facilities engineers.
What is the difference between the Fluke 1621 4-pole tester and a clamp-on earth ground tester like the Fluke 1630?
The Fluke 1621 uses the 4-pole stake method — requiring installation of earth stakes around the electrode under test — and measures the absolute resistance of a single earth electrode. The Fluke 1630 clamp-on tester can measure earth electrode resistance without stakes or disconnecting the electrode, but requires that the electrode be part of a parallel multiple-earth neutral (MEN) system to function. For a standalone earth rod with no parallel path, only the stake method (4-pole tester) can measure the true resistance.
Does it include a warranty?
Procure.ae provides manufacturer-backed warranty support for all Fluke products. Contact us for the full warranty details applicable to this model.
Is this available with delivery and support across the UAE?
Yes — Procure.ae supplies it across Dubai, Abu Dhabi, Sharjah and the wider GCC, with procurement-ready quotations and after-sales support.
Can I get a demo or bulk/tender pricing?
Yes — we offer demos and volume pricing for corporate, education, and government buyers. Contact us for a tailored quote.
