Dahua · LS550KDM-UF · Video Wall

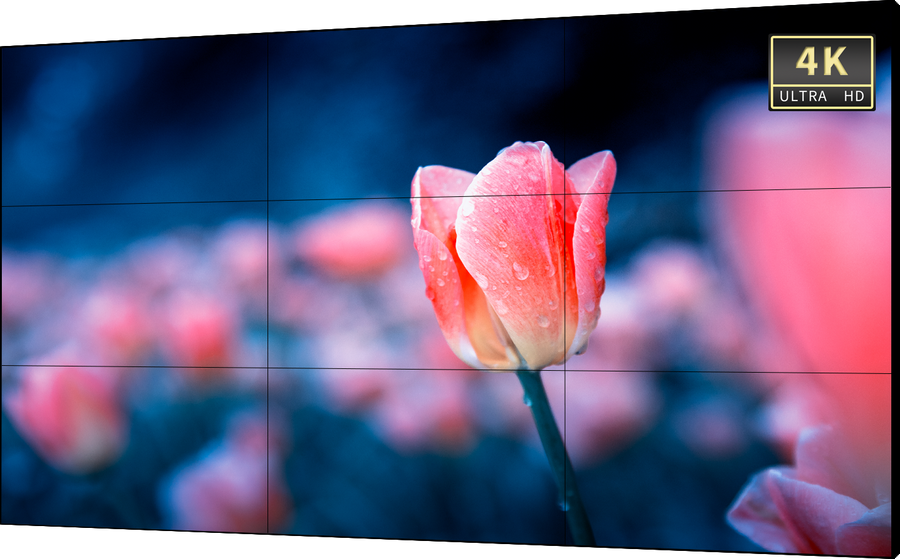

Dahua 55’’ UHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS550KDM-UF

Dahua 55’’ UHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS550KDM-UF

The Dahua 55’’ UHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS550KDM-UF is a video wall available in the UAE from Procure.ae.

The Dahua 55’’ UHD Video Wall Display Unit (Ultra Narrow Bezel 1.7mm) – LS550KDM-UF is the ultimate solution for creating immersive and seamless video wall installations in control rooms, conference centers, and commercial spaces. Featuring a 4K UHD resolution and an ultra-narrow 1.7mm bezel, this professional-grade display ensures vibrant visuals and a virtually uninterrupted viewing experience. Designed for durability and continuous operation, the Dahua 55 inch video wall panel supports advanced multi-screen configurations for dynamic digital signage and real-time data monitoring. With.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Video Wall
Weight
24.5 kg

Key features

01
Ultra Narrow Bezel (1.7mm)
Delivers a virtually seamless visual experience for expansive video walls.
02
4K UHD Resolution
Ensures crisp, detailed images for professional-grade display performance.
03
55-Inch Display Size
Offers a large, impactful viewing area ideal for video wall applications.
04
Advanced Color Calibration
Provides consistent and accurate color reproduction across multiple screens.
05
24/7 Reliable Operation
Engineered for continuous use in demanding commercial environments.
06
Flexible Input Options
Supports HDMI, DisplayPort, and DVI for versatile connectivity.
07
Energy Efficient Design
Optimized for low power consumption without compromising performance.
08
Multi-Screen Configuration Support
Easily integrates with other displays for custom video wall layouts.

Specifications

General
Key FeaturesADS panel, 24/7 operation, ultra-narrow 1.7 mm bezel-to-bezel, anti-glare surface, 3D noise reduction, picture splicing, factory color calibration, IR and RS-232 control
TypeVideo Wall
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size1.7 mm (panel-to-panel gap)
Brightness500 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio1,200:1
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort × 1
Connectivity
HDMI InputsHDMI In × 2
Serial PortRS-232 × 1
VGA InputVGA × 1 (D-sub)
Power
Power Consumption180 W (typical), 200 W (max)
Standby Power< 0.5 W
Physical
Dimensions1211.3 x 682.1 x 121.7 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0°C to 50°C
Shipping Dimensions1360 x 945 x 280 mm
Surface ProtectionAnti-glare, 3H hardness, haze 25%
VESA Mount600 x 400 mm, M6
Weight24.5 kg
