Dahua · LS550UCM-EF · Video Wall

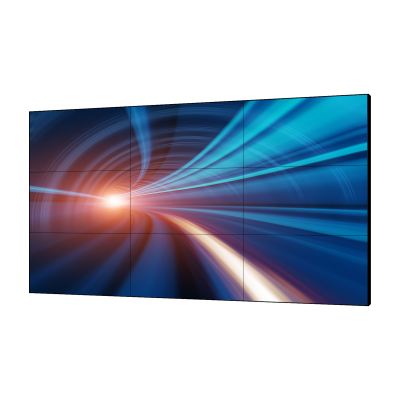

Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) – LS550UCM-EF

Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) – LS550UCM-EF

The Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) – LS550UCM-EF is a video wall available in the UAE from Procure.ae.

The Dahua 55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 3.5mm) – LS550UCM-EF is engineered for professional-grade video wall installations in control rooms, conference centers, and retail environments. This 55-inch display delivers outstanding Full HD resolution with vivid color reproduction and superior clarity, making it ideal for high-impact digital signage solutions. The ultra narrow bezel of just 3.5mm ensures an immersive, virtually seamless viewing experience when multiple panels are combined. Designed for 24/7 operation, the Dahua video wall offers exceptional reliability and.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall
Weight
21.4 kg

Key features

01
Ultra Narrow Bezel (3.5mm)
Minimizes the gap between displays for seamless multi-screen setups.
02
55-Inch Full HD Panel
Provides crisp 1920x1080 resolution visuals for detailed presentations.
03
24/7 Reliable Operation
Engineered for continuous use in demanding environments.
04
High Brightness
Ensures clear visibility even in brightly lit public spaces.
05
Advanced Connectivity
Includes HDMI, DVI, VGA, and DP inputs for versatile integration.
06
Color Calibration Technology
Delivers consistent, accurate color across all panels.
07
Energy-Efficient Design
Reduces power consumption while maintaining top performance.
08
Multiple Mounting Options
Supports landscape or portrait installation to suit your space.

Specifications

General
Key FeaturesADS panel, 24/7 operation, ultra-narrow 3.5 mm bezel-to-bezel, anti-glare surface, 3D noise reduction, picture splicing, factory color calibration, IR and RS-232 control
TypeVideo Wall
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size3.5 mm (panel-to-panel gap)
Brightness500 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,200:1
Panel TechnologyADS
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
Connectivity
HDMI InputsHDMI In × 1
HDMI OutputsHDMI Out × 2
InputsCVBS (BNC), VGA, DVI-D, HDMI, RS-232, USB, Audio, IR
Serial PortRS-232 × 1
USB PortsUSB × 2
VGA InputVGA × 1
Power
Power Consumption175 W (typical), 180 W (max)
Standby Power< 0.5 W
Physical
Dimensions1213.5 x 684.3 x 126 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0°C to 50°C
Shipping Dimensions1360 x 945 x 280 mm
Surface ProtectionAnti-glare, 3H hardness, haze 25%
VESA Mount600 x 400 mm, M6
Weight21.4 kg
