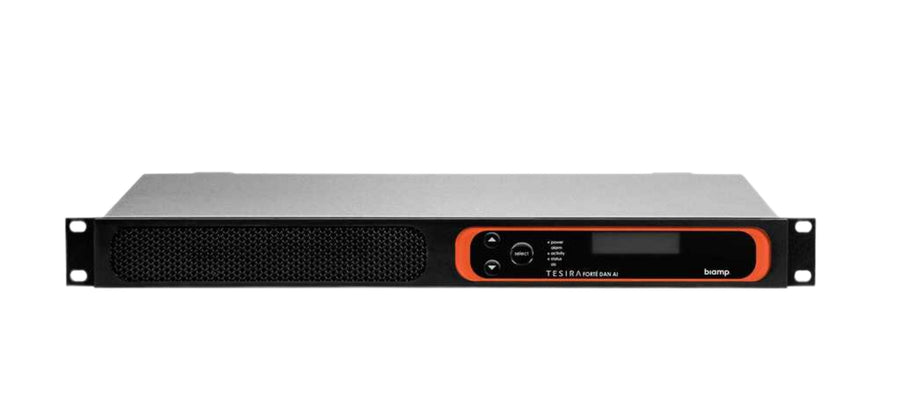

Biamp TesiraFORTÉ DAN AI Conferencing Audio DSP – 920-00448-00001

The Biamp TesiraFORTÉ DAN AI is an AES67-enabled Dante conferencing DSP for large or distributed audio systems. It provides 32×32 Dante channels, 12 mic/line inputs and 8 mic/line outputs, with Gigabit Ethernet, RS-232 and GPIO control. Procure.ae supplies the TesiraFORTÉ DAN AI across the UAE.

The TesiraFORTÉ DAN AI handles 32×32 channels of Dante and supports AES67 for interoperability with mixed networked audio environments. It has 12 mic/line inputs and 8 mic/line outputs for microphones, program sources and loudspeaker configurations. Tesira software sets routing, mixing, equalization, filtering, dynamics and delay. The unit uses 24-bit A/D and D/A converters, with a frequency response of 20 Hz to 20 kHz and a dynamic range above 108 dB.

The DAN AI suits networked audio rooms that combine microphones, loudspeakers and recording feeds on one Dante network. Gigabit Ethernet, RS-232 and GPIO connect it to control processors, automation platforms and third-party devices. A two-line OLED display with capacitive-touch navigation gives on-site access to settings and system status. The chassis weighs 3.63 kg and draws less than 35 W from 100–240 V AC.
