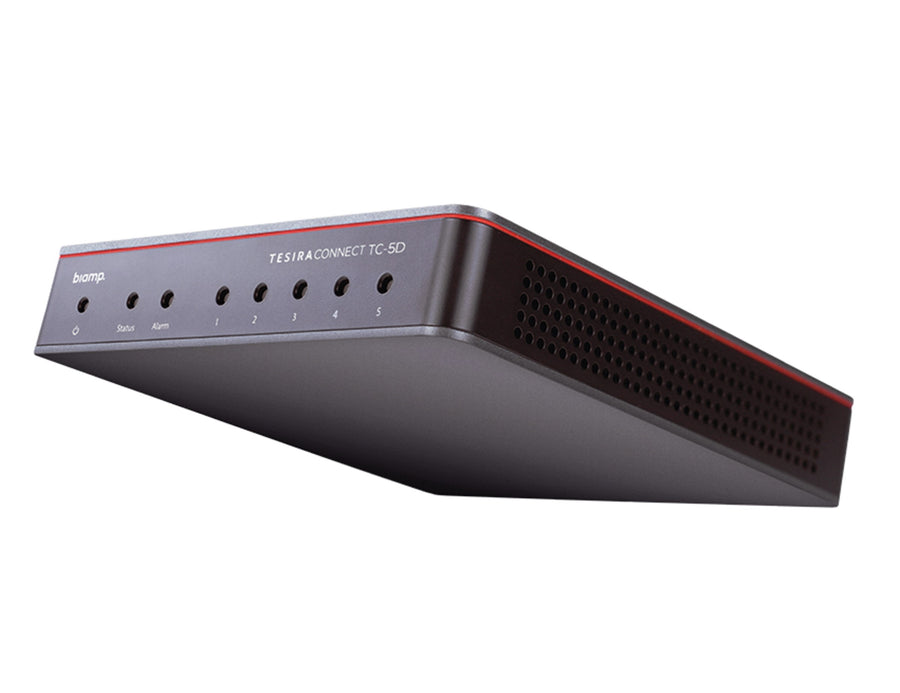

Biamp TesiraCONNECT Dante Expansion Device – TC-5D

The Biamp TesiraCONNECT TC-5D (model code 920-00087-00002) is a five-port expansion device with AVB-to-Dante bridging. It supports up to 32 x 32 channels of Dante audio and provides four PoE+ ports. Procure.ae, an authorised reseller, supplies the Biamp TesiraCONNECT TC-5D across the UAE.

The TC-5D bridges AVB and Dante media networks and supports up to 32 x 32 channels of Dante audio. It has five 1 Gbps RJ-45 ports, four of them PoE+ (IEEE 802.3at Class 4, 30 W), and it auto-detects the media network on each port. The unit supports Dante Domain Manager, and Dante routing is configured in Dante Controller. Front-panel LEDs show port connections, device status and faults.

The TC-5D is the central connection point for all Biamp and Dante devices in a conference room, so it suits rooms that combine Biamp AVB equipment with Dante audio devices. It is powered by an external universal power supply and rated for 0 to 40 °C. Compared with the TC-5, the TC-5D adds AVB-to-Dante bridging and up to 32 x 32 channels of Dante audio. Procure.ae supplies the TC-5D across the UAE, with free training and support.
