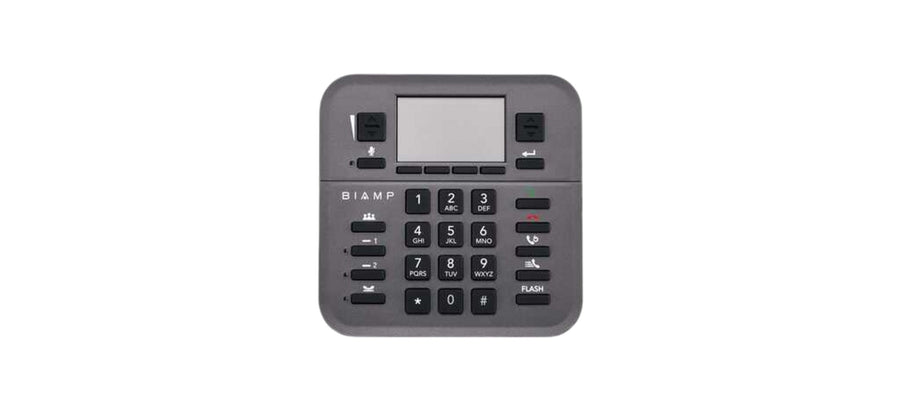

Biamp Tesira Telephony Dialer – HD-1

The Biamp Tesira HD-1 is a telephony dialer for Tesira systems, with a 12-button dial pad, a 2.7-inch LCD and PoE power over Ethernet. It supports redial, call volume adjustment, mute and hold, plus 100 speed-dial numbers. It works with Tesira SERVER and TesiraFORTÉ systems. Procure.ae supplies the Tesira HD-1 across the UAE.

The Tesira HD-1 provides telephony control over Ethernet from a 12-button dial pad. Four context buttons can be assigned to control functions, and the dialer propagates the privacy mute state to other devices. Users can redial, adjust call volume, mute, hold and use other telephony functions. The phone stores 100 programmable speed-dial numbers, which can be updated on the phone or in software. Control cable runs reach up to 330 ft (100 m) over CAT5 or better Ethernet cable.

Fit and integration: the HD-1 is programmed with Tesira Design Software and connects to Tesira SERVER and SERVER-IO (with STC-2 or SVC-2 cards), and to TesiraFORTÉ VT, VT4 and X systems. It is PoE powered (IEEE 802.3at Class 1, 4 W) and is rated 0 to 40 °C. Unlike the TEC-1i and TEC-1s control panels, it is a dedicated telephone dial pad rather than a volume and action controller.
