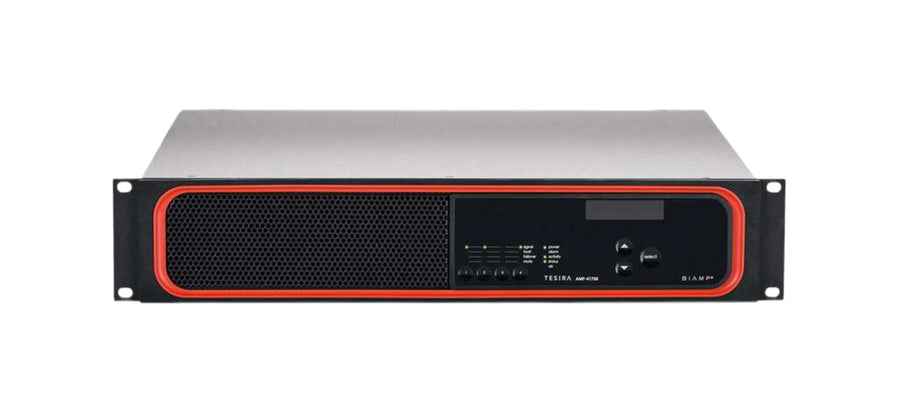

Biamp Tesira 4-Channel 175 W Conferencing Amplifier – AMP-4175R
The Biamp Tesira AMP-4175R is a 4-channel conferencing amplifier rated at 175 W per channel, now discontinued. It has dual AVB ports, bridgeable channels and impedance monitoring, and the manufacturer lists the Voltera D 1200.4 as its replacement. Procure.ae can confirm current availability in the UAE.
The AMP-4175R provides four channels rated at 175 W each into 4 Ω or 8 Ω, and up to 350 W when channels are bridged into 8 Ω. Its balanced input impedance is 8 kΩ, and the amplifier includes impedance monitoring. Total harmonic distortion is below 0.3% at rated power. Frequency response is ±1 dB from 20 Hz to 20 kHz, and dynamic range exceeds 100 dB.
Dual AVB ports, Tesira software configuration and an OLED front panel with capacitive touch navigation allow control of individual and chassis-wide mutes and levels. Optional analog cards, Tesira EX-MOD cards (EIC-4, EIOC-4 and EOC-4) and analog failover inputs extend the unit. It is rack mountable in 2RU, with an operating range of 0 to 40 °C.
Key features
Specifications
| Key Features | 4 channels, 175 W per channel, bridgeable, dual AVB, impedance monitoring, analog failover, Tesira software control |
| Model | Tesira AMP-4175R |
| Type | Conferencing Amplifier |
| Display | OLED with capacitive touch navigation |
| Channels | 4 |
| Dynamic Range | > 100 dB |
| Frequency Response | 20 Hz to 20 kHz, ±1 dB |
| Impedance | 8 kΩ balanced input (analog failover) |
| Power Output | 175 W per channel (4 Ω, 8 Ω); 350 W bridged (8 Ω) |
| THD | <0.3% |
| Ethernet | Dual AVB ports |
| Expansion | Optional analog cards; Tesira EX-MOD cards EIC-4, EIOC-4, EOC-4 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Operating Temperature | 0 to 40 °C |
| Rack Units | 2 RU |
| Weight | 9.3 kg |
| Certifications | UL, C-UL, FCC Part 15B, CE, RoHS |
| Warranty | 5 years |
