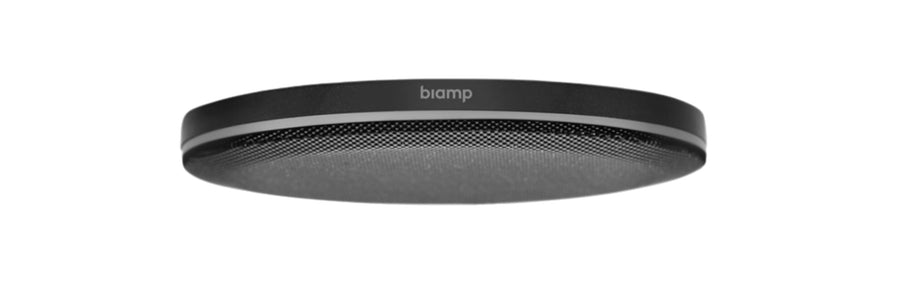

Biamp Parlé TCM-XA Black Ceiling Microphone with PoE+ Amplifier – TCM-XA

The Biamp Parlé TCM-XA is a black low-profile ceiling microphone with a built-in two-channel PoE+ amplifier. Its Beamtracking design covers 360 degrees with four 90-degree zones, and the amplifier delivers up to 40 W per channel at 4 Ω. Procure.ae supplies the Parlé TCM-XA across the UAE.

The TCM-XA combines Beamtracking microphone pickup with four 90-degree zones for seamless 360-degree voice capture. It mixes active talkers automatically, without lobe aiming or room mapping. The integrated 2-channel PoE+ amplifier delivers up to 40 W at 4 Ω or 30 W at 8 Ω per channel, with selectable power modes and built-in limiting for protection. Its 5.90-inch (150 mm) low-profile design suits modern meeting spaces. The unit is UL 2043 plenum rated and carries CE, UL and RoHS marks.

The TCM-XA suits meeting rooms that need ceiling microphone pickup and speaker reinforcement from one unit, and it is designed for Biamp Tesira systems. A single CAT5 cable connects the microphone to its network box, which includes onboard DSP and uses one AEC channel per microphone. An extra RJ-45 port supports one TCM-XEX expansion microphone, with up to two microphones per network box. The microphone is powered by PoE (IEEE 802.3at Class 3, 15.4 W). Compared with the TCM-X, the TCM-XA adds the integrated PoE+ amplifier and Cisco Verified status.

Type

Ceiling Microphone with PoE+ Amplifier

Weight

680 g

Key features

Beamtracking Pickup

Four 90-degree zones give seamless 360-degree pickup without lobe aiming or room mapping.

Built-In PoE+ Amplifier

Two channels deliver up to 40 W at 4 Ω or 30 W at 8 Ω per channel.

Selectable Power Modes

Choose power or channel count in software, with built-in limiting.

Low-Profile Design

A 5.90-inch (150 mm) ceiling design blends into modern meeting spaces.

Single-Cable Installation

One CAT5 cable connects the microphone to its network box with onboard DSP.

Expansion Port

An extra RJ-45 port supports a TCM-XEX expansion microphone.

UC Platform Certified

Certified for Microsoft Teams and Zoom, and Cisco Verified.

5-Year Warranty

Backed by a 5-year warranty and TAA compliant.

Specifications

General
Compatibility	Tesira systems; Microsoft Teams; Zoom; Cisco
Key Features	Beamtracking, 360-degree pickup, built-in PoE+ amplifier, selectable power modes, built-in limiting, TAA compliant
Model	Parlé TCM-XA
Type	Ceiling Microphone with PoE+ Amplifier

Audio
Polar Pattern	Four 90-degree zones (360-degree pickup)
Speaker Output	2 channels, up to 40 W at 4 Ω or 30 W at 8 Ω per channel

Connectivity
Connectivity	Three RJ-45 network box connections; CAT5 to network box
Expansion	Expansion microphone; up to two microphones per network box
PoE	IEEE 802.3at Class 3 (15.4 W)

Physical
Color	Black
Operating Temperature	0 to 40 °C
Weight	680 g

Compliance
Certifications	Microsoft Teams Certified, Zoom Certified, Cisco Verified, UL 2043 plenum rated, CE, UL / C-UL, RoHS, TAA
Warranty	5 years
