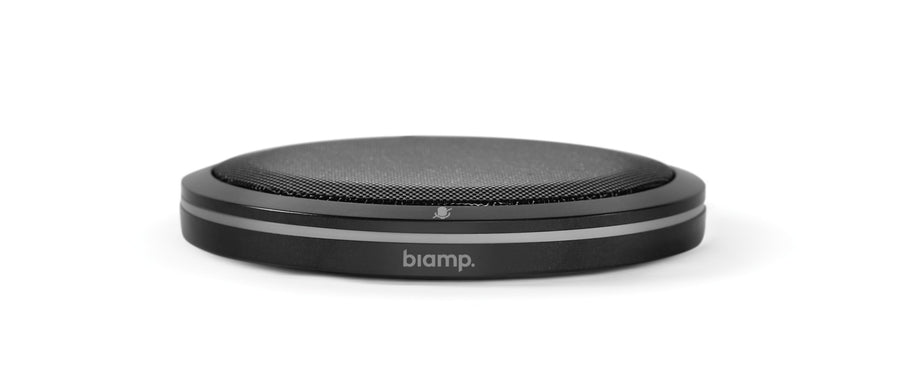

Biamp Parlé DTM-X Tabletop Conferencing Microphone – 920-00029-10000

The Biamp Parlé DTM-X is a compact tabletop Beamtracking conferencing microphone built for Devio UCX systems. It uses a 16-element digital array with four 90° zones for 360° pickup, and it is powered over PoE+ through its network box. Procure.ae supplies the Biamp Parlé DTM-X across the UAE.

The DTM-X uses Beamtracking technology to provide full 360° pickup across four independently controlled zones, and it mixes conversation automatically without lobe aiming or room mapping. Its 16-element digital array has a frequency response of 150 Hz to 16 kHz (±3 dB) and a dynamic range of 90 dB, A-weighted. The 4.7-inch (110 mm) form factor sits unobtrusively on any table surface, and an LED mute indicator shows the state of the microphone during meetings.

The DTM-X is built for Devio UCX systems. A single CAT5 cable to the network box carries audio, control and DSP processing, and an RJ-45 port supports one DTM-XEX expansion microphone for larger tables. The network box is powered by PoE (IEEE 802.3at Class 3, 15.4 W) and operates from 0 to 40 °C. The DTM-X is certified for Microsoft Teams and TAA compliant for government projects, and it carries a five-year warranty.

Type

Tabletop Conferencing Microphone

Weight

Microphone 231 g; network box 310 g

Key features

Beamtracking pickup

Four independently controlled zones provide full 360° pickup across the table.

Single CAT5 connection

One cable to the network box handles audio, control and DSP processing.

Automatic conversation tracking

Auto-mixing removes the need for lobe aiming or room mapping.

Expansion port

An RJ-45 port supports one DTM-XEX expansion microphone for larger tables.

LED mute indicator

Shows the mute status clearly during active meetings.

Compact form factor

The 4.7-inch (110 mm) design sits unobtrusively on any table surface.

Microsoft Teams certified

Certified for Microsoft Teams for consistent, reliable integration.

Five-year warranty

Backed by a five-year warranty and TAA compliant for government projects.

Specifications

General
Application	Conference tables and Devio UCX meeting rooms
Compatibility	Devio UCX
Key Features	Beamtracking, four independent zones (360° pickup), 16-element digital array, LED mute indicator, PoE+ network box, Microsoft Teams certified, TAA compliant
Model	Parlé DTM-X
Type	Tabletop Conferencing Microphone

Audio
Dynamic Range	90 dB, A-weighted (THD+N < 10%)
Frequency Response	150 Hz to 16 kHz ±3 dB
Max SPL	109 dB (at 0.5% THD)
Microphone	16-element digital array, beamformed
Polar Pattern	Beamformed, four 90° zones

Connectivity
Connectivity	Single CAT5 cable to network box
Expansion	Supports one DTM-XEX expansion microphone
PoE	IEEE 802.3at Class 3 (PoE+), 15.4 W (network box)

Physical
Form Factor	Compact tabletop, 110 mm (4.7-inch)
Operating Temperature	0 to 40 °C (network box)
Weight	Microphone 231 g; network box 310 g

Compliance
Certifications	FCC Part 15B, CE, UL and C-UL listed, RoHS, TAA compliant
Warranty	5 years
