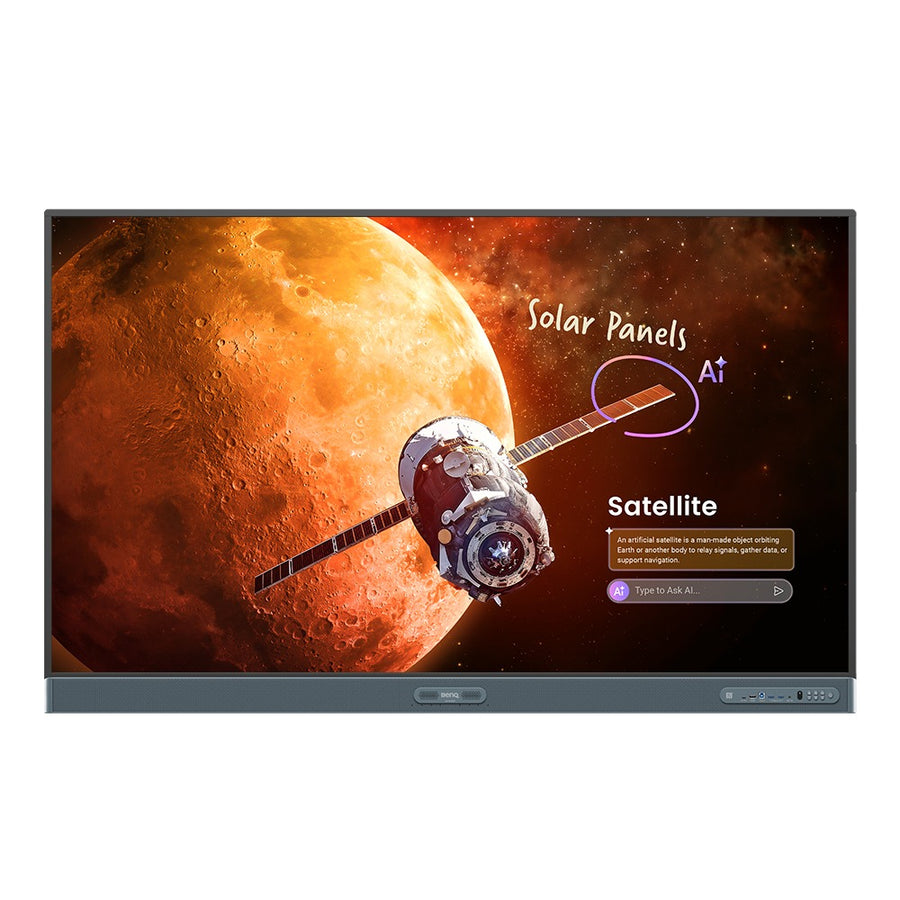

BenQ Board Pro RP05 75-inch Interactive Flat Panel – RP7505
The BenQ RP7505 is a 75-inch 4K UHD interactive flat panel for classrooms, with up to 50-point infrared touch and a 1,500:1 typical contrast ratio. It suits schools that want a touch board with built-in air quality sensing and central management. Procure.ae supplies the BenQ RP7505 across the UAE.
The RP7505 has a 75-inch IPS panel at 3840 x 2160 (4K UHD) resolution, 450 nits typical brightness and a 1,500:1 typical contrast ratio, with a dynamic contrast ratio of 50,000:1. Its ultra-precision infrared touch supports up to 50 touch points with a response time under 2.5 ms. The 10-bit panel covers a 72% NTSC colour gamut. An 8-microphone array picks up voices up to 12 m away, and a 2 x 25 W speaker set with a 20 W subwoofer provides audio.
The RP7505 runs Android 15.0 (EDLA) on an Arm Cortex-A78 and A55 processor, with one OPS slot for a slot-in PC and two gigabit Ethernet ports. It has Wi-Fi 6, Bluetooth 5.2 and a DisplayPort 1.2a input. Compared with the RP7502, it has up to 50 touch points against 20, and a 1,500:1 contrast ratio against 1,200:1.
Key features
Specifications
| Key Features | Up to 50-point touch, 8-microphone array, air quality sensors (CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O), air ionizer, NFC sensor, EZWrite 6.0 whiteboarding, InstaShare 2 wireless sharing, DMS and AMS management |
| Model | RP7505 |
| Type | Interactive Flat Panel |
| What's in the Box | Remote control, wall mount, HDMI, USB-B touch and USB-C cables |
| Aspect Ratio | 16:9 |
| Blue Light Filter | Yes |
| Brightness | 450 nits |
| Color Depth | 10-bit |
| Color Gamut | 72% NTSC |
| Contrast Ratio | 1,500:1 |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 75 inch |
| Touch Points | Up to 50-point multi-touch |
| Touch Response Time | < 2.5 ms |
| Touch Technology | Infrared |
| Operating System | Android 15.0 (EDLA) |
| Processor | Arm Cortex-A78 × 2 + A55 × 6 |
| Storage Conditions | -20 to 60 °C, 10% to 90% RH |
| Microphone | 8-microphone array |
| Pickup Range | 12 m |
| Speaker Output | 2 × 25 W speakers, 1 × 20 W subwoofer |
| Bluetooth | Bluetooth 5.2 |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| OPS Slot | 1 (slot-in PC) |
| Ports | USB 2.0 × 3, USB 3.0 × 4, USB-C × 2 (one with 100 W PD), DisplayPort 1.2a × 1, VGA × 1, micro SD × 1, Ethernet × 2 |
| Touch USB Ports | USB-B × 3 (USB 3.0) |
| Wi-Fi | Wi-Fi 6 |
| Power Consumption | 91.1 W (typical) |
| Standby Power | < 0.5 W |
| Dimensions | 1709.4 x 1060.8 x 130.0 mm |
| Duty Cycle | 18 hours / 7 days |
| Mounting | Wall mount included |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 1863 x 1170 x 205 mm |
| VESA Mount | 800 x 400 mm |
| Certifications | ENERGY STAR |
