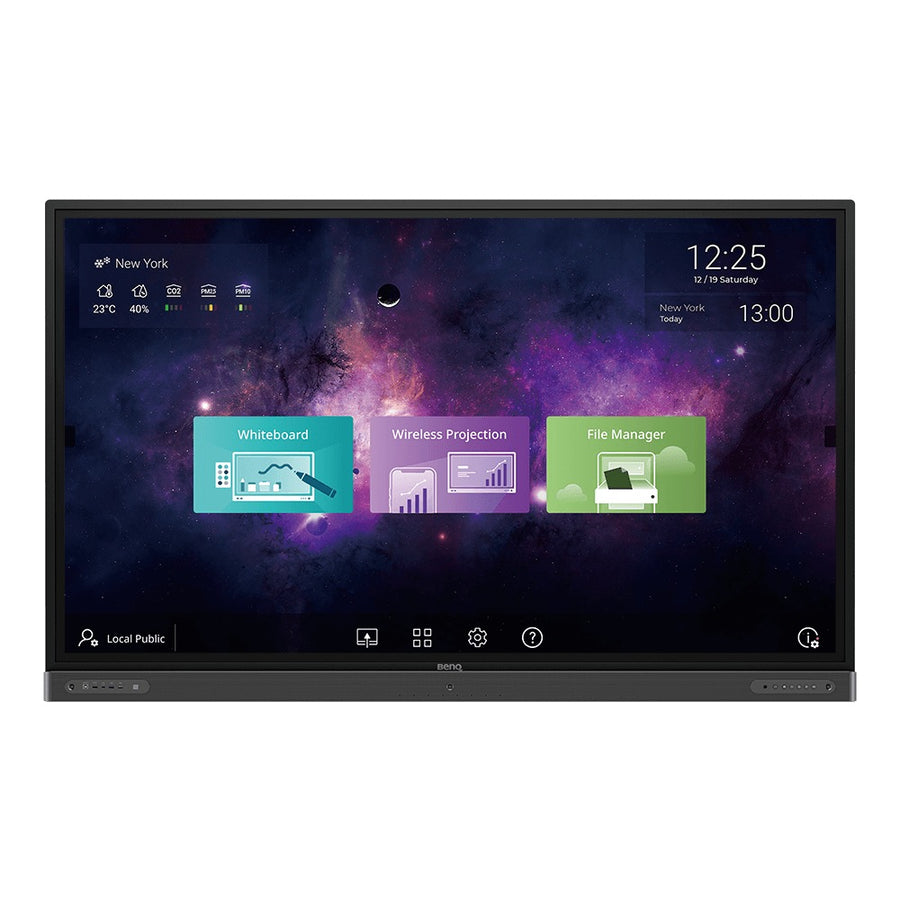

BenQ Board Pro RP02 86-inch Interactive Flat Panel – RP8602
The BenQ RP8602 is an 86-inch 4K UHD interactive flat panel for classrooms, with a germ-resistant 16:9 IPS display and 20-point infrared touch. It suits schools running blended learning, STEAM and project-based lessons. Procure.ae supplies the BenQ RP8602 across the UAE, with delivery and installation.
The RP8602 combines an 86-inch IPS panel at 3840 x 2160 (4K UHD) resolution with 400 nits typical brightness, a 1,200:1 typical contrast ratio and a 68% NTSC colour gamut. Its infrared touch supports 20 touch points with a response time under 4 ms. The screen uses nano-ionic silver germ-resistant treatment on 9H tempered glass. Eight microphones with an 8 m pickup range, two 16 W speakers and a 15 W subwoofer support classroom audio.
The RP8602 runs Android 8.0 and has one OPS slot for a slot-in PC. DMS device management, AMS account management and the X-Sign Broadcast system are included. The panel mounts on a VESA 700 x 400 mm pattern. Compared with the RP8605, it has 20 touch points against up to 50, and a 400 nits panel against 450 nits.
Key features
Specifications
| Key Features | Germ-resistant screen, Low blue light, Flicker-free, EZWrite 5.0 whiteboarding, InstaShare 1 wireless sharing, DMS and AMS management, NFC sensor, Air quality (TVOC) sensor |
| Model | RP8602 |
| Type | Interactive Flat Panel |
| What's in the Box | Remote control, wall mount, VGA, HDMI, USB-B touch and USB-C cables |
| Aspect Ratio | 16:9 |
| Blue Light Filter | Yes |
| Brightness | 400 nits |
| Color Depth | 10-bit |
| Color Gamut | 68% NTSC |
| Contrast Ratio | 1,200:1 |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Points | 20-point multi-touch |
| Touch Response Time | < 4 ms |
| Touch Technology | Infrared |
| Operating System | Android 8.0 |
| Processor | A73 × 2 + A53 × 2 |
| Storage Conditions | -10 to 60 °C, 10% to 80% RH |
| Microphone | 8 microphones |
| Pickup Range | 8 m |
| Speaker Output | 2 × 16 W speakers, 1 × 15 W subwoofer |
| Input Voltage | 100-240 V AC, 50/60 Hz |
| OPS Slot | 1 (slot-in PC) |
| Ports | USB 2.0 × 3, USB 3.0 × 2, USB-C × 1 (3.0), 3.5 mm audio in × 2, 3.5 mm audio out × 1, Ethernet × 1 |
| Touch USB Ports | USB-B × 3 (USB 2.0) |
| Power Consumption | 149.8 W (typical) |
| Standby Power | < 0.5 W |
| Dimensions | 1988.8 x 1229.8 x 141.6 mm |
| Duty Cycle | 18 hours / 7 days |
| Mounting | Wall mount included |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 2160 x 1340 x 225 mm |
| VESA Mount | 700 x 400 mm |
