BenQ · RM8602K · Interactive Flat Panel

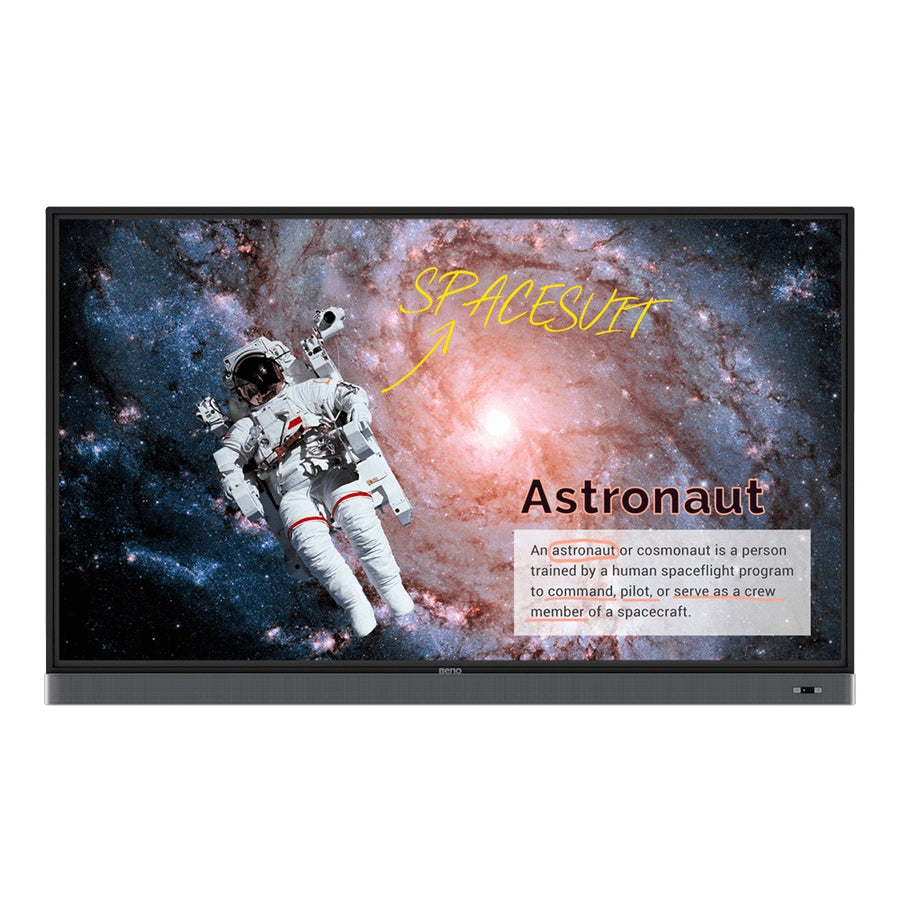

BenQ Board Master RM02K 86-inch Interactive Flat Panel – RM8602K

BenQ Board Master RM02K 86-inch Interactive Flat Panel – RM8602K

The BenQ RM8602K is an 86-inch 4K UHD interactive flat panel for classrooms, with a 16:9 IPS display and 20-point infrared touch. It suits teachers and school IT teams who need a large touch display for lessons. Procure.ae supplies the BenQ RM8602K across the UAE, with delivery and installation.

The RM8602K pairs an 86-inch IPS panel at 3840 x 2160 (4K UHD) resolution with 400 nits typical brightness and a 1,200:1 typical contrast ratio. Its infrared touch supports 20 touch points with a response time under 8 ms. The panel uses 10-bit colour depth and a 68% NTSC colour gamut. Nano-ionic silver germ-resistant treatment and a 9H tempered surface protect the screen, and two 16 W speakers provide built-in audio. The listed operation hours are 18 hours a day, seven days a week.

The RM8602K runs Android 8.0 and has one OPS slot for a slot-in PC. DMS device management and AMS account management are included for IT teams. Its ports cover USB 2.0 and 3.0, 3.5 mm audio in and out, and Ethernet, and it mounts on a VESA 800 x 600 mm pattern. Compared with the RM8603, it has lower brightness (400 nits against 450 nits).

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
Type
Interactive Flat Panel

Key features

01
4K UHD display
86-inch 16:9 IPS panel at 3840 x 2160 resolution with 10-bit colour depth.
02
20-point infrared touch
Touch response time under 8 ms across 20 touch points.
03
Eye-care display
Low blue light setting and flicker-free operation.
04
Germ-resistant surface
Nano-ionic silver germ-resistant treatment on a 9H tempered surface.
05
EZWrite 5.0 whiteboarding
Built-in whiteboarding software from BenQ.
06
InstaShare 1 wireless sharing
Wireless screen sharing through the BenQ App Store.
07
Android 8.0 with OPS slot
Runs Android 8.0 and accepts a slot-in OPS PC.

Specifications

General
Key FeaturesLow blue light, Anti-glare, Nano-ionic silver germ resistance, EZWrite 5.0 whiteboarding, InstaShare 1 wireless sharing, DMS device management, AMS account management, Flicker-free
ModelRM8602K
TypeInteractive Flat Panel
What's in the BoxRemote control, wall mount, VGA, HDMI and USB cables
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness400 nits
Color Depth10-bit
Color Gamut68% NTSC
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points20-point multi-touch
Touch Response Time< 8 ms
Touch TechnologyInfrared
Performance
Operating SystemAndroid 8.0
ProcessorA73 × 2 + A53 × 2
Storage Conditions-20 to 60 °C, 10% to 90% RH
Audio
Speaker Output2 × 16 W
Connectivity
Input Voltage100-240 V AC, 50/60 Hz
OPS Slot1 (slot-in PC)
PortsUSB 2.0 × 2, USB 3.0 × 3, 3.5 mm audio in × 1, 3.5 mm audio out × 1, Ethernet × 1
Touch USB PortsUSB-B × 2 (USB 2.0)
Power
Power Consumption181 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1957.1 x 1201.8 x 115.8 mm
Duty Cycle18 hours / 7 days
MountingWall mount included
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions2214 x 1358 x 283 mm
VESA Mount800 x 600 mm
