BenQ Board Essential RE04 86-inch 4K Interactive Flat Panel – RE8604
The BenQ Board Essential RE8604 is a 86-inch 4K UHD interactive flat panel from the RE04 series, with Precision IR touch for up to 40 points and EDLA-certified Android 14. It has a 450 nits IPS panel and includes EZWrite 6.0 whiteboarding and InstaShare 2 wireless screen sharing. Procure.ae supplies the RE8604 in the UAE.
The RE8604 uses a 86-inch IPS panel at 3840 x 2160 with 450 nits typical brightness, 1200:1 typical contrast (30,000:1 dynamic), 10-bit colour and a 68% NTSC colour gamut. The 9H tempered, anti-glare surface is flicker-free with low blue light. Precision IR touch supports up to 40 points with a response time under 5 ms. Two 20 W (max) speakers are built in, and typical power consumption is 106.8 W.
Android 14 (EDLA) runs on a CPU with four A73 and four A53 cores and a G52 MP8 GPU. Software includes EZWrite 6.0 whiteboarding, InstaShare 2 wireless sharing, DMS device management, AMS account management and X-Sign Broadcast. An OPS slot accepts a slot-in PC, and mounting uses a 800 x 600 mm VESA pattern. A wall mount, remote control and VGA, HDMI, USB-B and USB-C cables are supplied.
Key features
Specifications
| Key Features | Precision IR touch, 40 points, 4K UHD IPS, Android 14 (EDLA), EZWrite 6.0, InstaShare 2, OPS slot, USB-C 65 W PD |
| Model | RE8604 |
| Type | Interactive Flat Panel |
| What's in the Box | Wall mount, remote control, VGA cable (3 m), HDMI cable (3 m), USB-B touch cable (3 m), USB-C cable (1.5 m) |
| Aspect Ratio | 16:9 |
| Blue Light Filter | Yes (low blue light, flicker-free) |
| Brightness | 450 nits |
| Color Depth | 10-bit |
| Color Gamut | 68% NTSC |
| Contrast Ratio | 1,200:1 (typical); 30,000:1 (dynamic) |
| Orientation | Landscape |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Points | 40-point multi-touch |
| Touch Response Time | < 5 ms |
| Touch Technology | Infrared (Precision IR) |
| Functions | EZWrite 6.0 whiteboarding, InstaShare 2 wireless screen sharing, X-Sign Broadcast, Floating Tool, DMS and AMS management |
| Graphics | G52 MP8 |
| Operating System | Android 14 (EDLA) |
| Processor | Quad-core A73 + quad-core A53 |
| Storage Conditions | -10 to 60 °C; 10% to 80% RH (non-condensing) |
| Audio In | 3.5 mm PC audio × 1; 3.5 mm mic × 1 |
| Audio Out | 3.5 mm earphone × 1 |
| Speaker Output | 2 × 20 W (max) |
| Ethernet | Gigabit (10/100/1000 Mbps) for Android; Gigabit × 2 for OPS |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | OPS slot × 1 |
| SD Card Slot | Micro SD reader × 1 |
| Serial Port | RS-232 × 1 |
| Touch USB Ports | USB-B × 2 (USB 2.0, touch) |
| USB Ports | USB-A × 4 (2 × USB 2.0, 2 × USB 3.0) |
| USB-C Ports | USB-C × 2 (1 × USB 2.0, 1 × USB 3.0); 65 W power delivery |
| VGA Input | VGA × 1 |
| Power Consumption | 106.8 W (typical) |
| Standby Power | < 0.5 W |

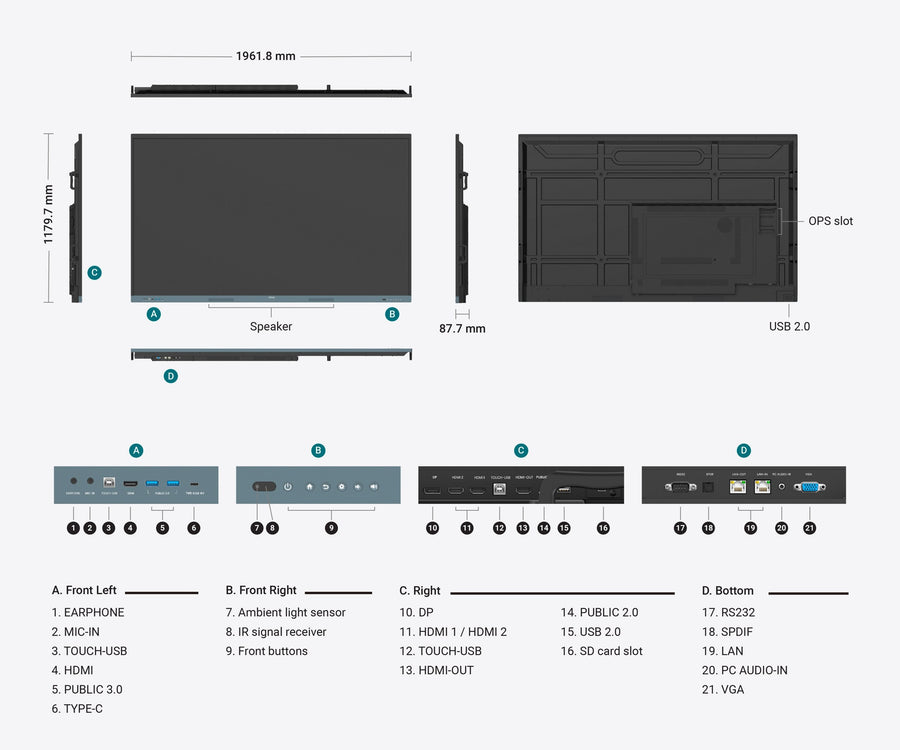

| Dimensions | 1961.8 x 1179.7 x 87.7 mm |
| Duty Cycle | 18 hours/day, 7 days/week |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 2095 x 1265 x 185 mm |
| Surface Protection | Anti-glare, 9H tempered glass |
| VESA Mount | 800 x 600 mm (4 × M8 × 25L) |
| Certifications | ENERGY STAR; EDLA certified |
