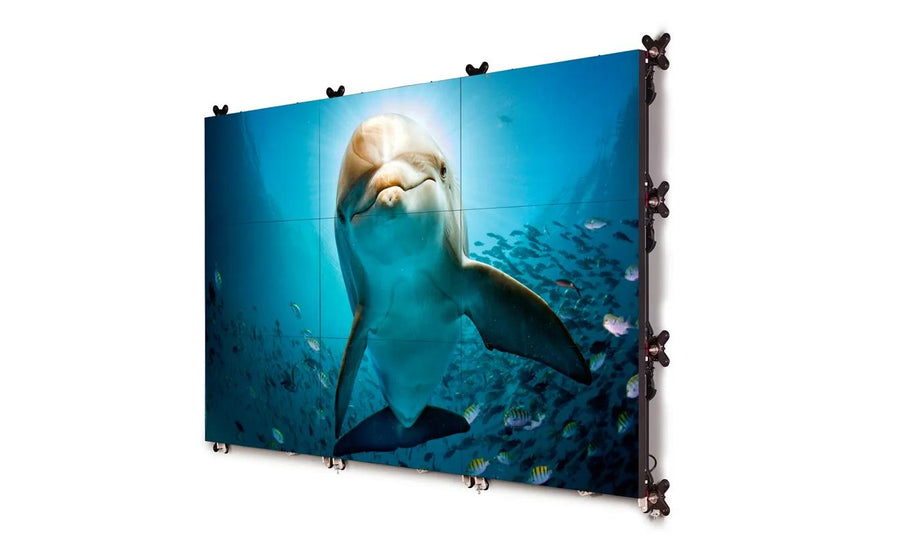

Barco UniSee 55-inch LCD Video Wall Display

Barco UniSee 55-inch LCD Video Wall Display

The Barco UniSee is a 55-inch bezel-less IPS LCD video wall display designed for seamless tiled walls. It offers 700 cd/m² typical brightness, local dimming and Sense X automatic calibration, with landscape and portrait orientation. Procure.ae supplies the Barco UniSee across the UAE.

Barco's UniSee platform is designed for bezel-less walls, so content can span several panels without a black border between tiles. Sense X continuously calibrates color and brightness across the wall. The panel has a 1,200:1 typical contrast ratio, 178-degree viewing angles and a response time under 8 ms. Local dimming adds contrast and reduces radiated heat and power draw, and the display is fanless, with a typical backlight lifetime of 60,000 hours.

UniSee suits tiled walls where installation precision and easy servicing matter. The UniSee Mount uses gravity to align panels automatically, and individual panels can be undocked for maintenance. The standard UniSee Smart mount is listed, and InvisiMount is listed as a possible option. Inputs are two DisplayPort 1.2 and two HDMI 2.0, with one DisplayPort 1.2 output, two Ethernet ports and two USB ports for power only.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits (typical)
Type
LCD Video Wall Display
Weight
17.3 kg (LCD net); 15.0 kg (LCM net)

Key features

01
Bezel-less design
The gap between tiles is barely noticeable across the wall.
02
Sense X calibration
Continuous automatic color and brightness calibration.
03
Local dimming
Higher contrast with lower radiated heat and power use.
04
Landscape and portrait
Panels can be installed in either orientation.
05
UniSee Mount
Gravity-based panel alignment, with panels that can be undocked for service.
06
Connectivity
Two DisplayPort 1.2 and two HDMI 2.0 inputs, with two Ethernet ports.
07
Brightness
700 cd/m² typical luminance with a 178-degree viewing angle.

Specifications

General
Key FeaturesBezel-less design, Sense X calibration, local dimming, fanless cooling, landscape and portrait, UniSee Mount, HDCP 2.2
ModelBarco UniSee
TypeLCD Video Wall Display
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel SizeBezel-less
Brightness700 nits (typical)
Color Gamut70% NTSC (native)
Color Temperature10,500 K (native, typical)
Contrast Ratio1,200:1 (typical)
Lamp Life60,000 hours (backlight, typical)
OrientationLandscape and portrait
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response Time< 8 ms
Screen Size55 inch
Viewing Angle178° / 178°
Performance
Storage Conditions-20 to 60 °C; 10% to 90% RH, non-condensing
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 × 2 in, × 1 out (4K at 60 Hz); HDMI 2.0 × 2 in (4K at 60 Hz); Ethernet × 2; USB × 2 (power only)
Power
Power Consumption241 W (internal PSU); 227 W (external PSU), typical
Physical
Dimensions1211.36 x 682.02 x 65 mm (LCM)
MountingUniSee Smart mount or InvisiMount (possible)
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Weight17.3 kg (LCD net); 15.0 kg (LCM net)
Compliance
CertificationsCE, SGS, UKCA, CCC, PSE, BIS, CEBEC, ICES, EAC, KC, FCC, RCM, RoHS, WEEE, REACH
