Barco TransForm N Networked Video Encoder and Decoder – NGS-D320 Pro

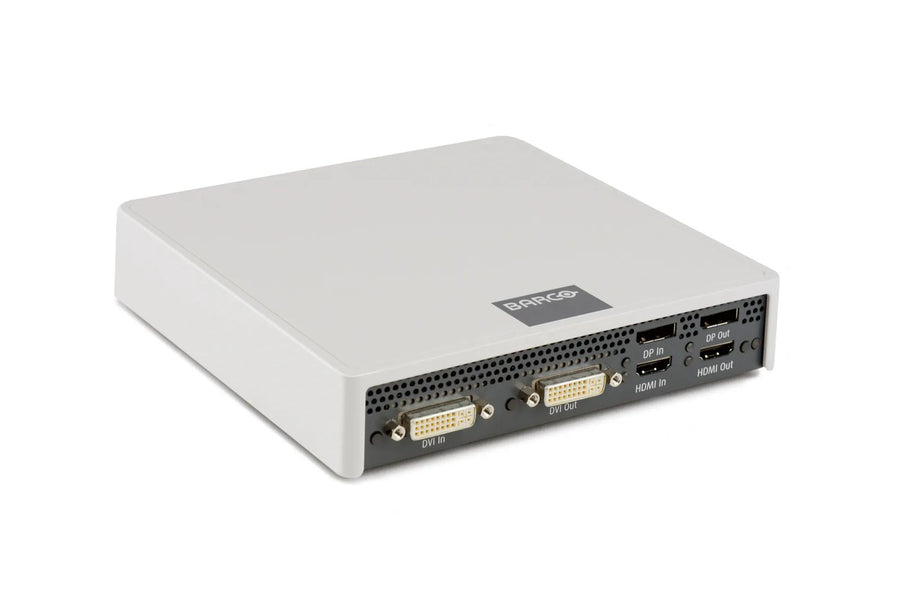

The Barco NGS-D320 Pro is a networked H.264 encoder and decoder for video wall, control room and training systems. It runs as a dual encoder, dual decoder or combined unit, with DVI, HDMI and DisplayPort video, USB HID and redundant 1Gb Ethernet. Procure.ae supplies the NGS-D320 Pro across the UAE, with delivery and installation.

The NGS-D320 Pro streams video, graphics and audio over IP using H.264 at bitrates from 384 kbps to 24 Mbps. Its dual channel image processing engine handles scaling and colour space conversion, and the encoder keeps fine detail such as spreadsheet text and single-pixel line diagrams sharp. Graphics are supported up to 4096 x 2160 at 24–30 Hz and up to 2560 x 1600 at 24–60 Hz. Automatic EDID management and scaling at the decoder are built in, and the unit starts streaming as soon as a valid input signal is connected.

The unit suits application sharing, simulation and training rooms, where one device can run as an encoder, a decoder or both. Remote keyboard and mouse control uses native keymaps. Streams use unicast or multicast (IGMP v3) with RTP and RTSP, and the web interface discovery page lists all devices on the network. It mounts on an optional VESA adapter plate or in a 1U rack for two units.
