Barco OverView RGB Laser Video Wall Upgrade — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
Barco · Upgrade to an RGB Laser video wall · Video Wall

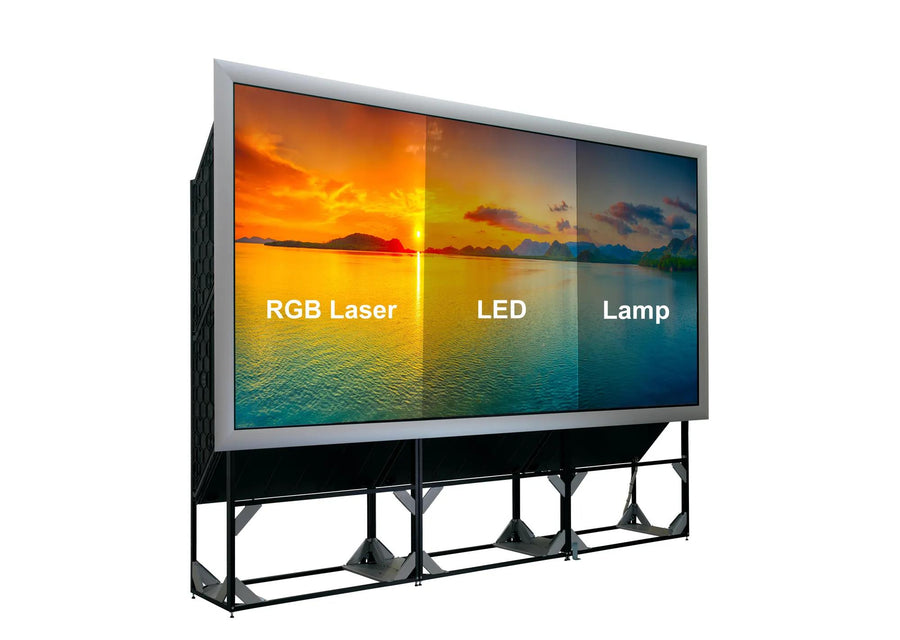

Barco OverView RGB Laser Video Wall Upgrade

Barco OverView RGB Laser Video Wall Upgrade

The Barco RGB laser upgrade moves legacy lamp- or LED-based OverView rear-projection video walls to RGB laser illumination, for 50-, 67-, 70- and 80-inch systems. It offers up to 170% REC.709 color, a light source rated above 125,000 hours and a 2-year warranty. Procure.ae supplies the upgrade across the UAE.

The upgrade gives legacy Barco video walls RGB laser illumination in place of lamp or LED light sources. The manufacturer describes RGB lasers as offering higher brightness, an extended color gamut and a longer lifetime. After the upgrade, the display offers Full HD (1920 x 1080, 16:9) or SXGA+ (1400 x 1050, 4:3) resolution, 1,800:1 on-screen contrast and Sense X automatic calibration for color stability. Redundant laser banks and power supply drivers are built in.

Upgrade paths are listed by screen size and aspect ratio. The manufacturer maps legacy OverView, cDG and cDR+ models to ODL-series RGB laser models, for example OV-7xx to ODL-715 at 70-inch 4:3 and OL-521 to ODL-521 at 50-inch 16:9. Integration with third-party equipment uses a web service API, and a built-in web server provides direct Ethernet access. Procure.ae can confirm the correct upgrade code for your installed model before you order.

Resolution
1920 x 1080 (Full HD, 16:9); 1400 x 1050 (SXGA+, 4:3)
Lamp Type
RGB laser (Class 1 RG2)
Type
RGB Laser Upgrade

Key features

01
RGB laser light source
RGB lasers illuminate the display in place of lamp or LED light sources.
02
Long light source life
Rated above 125,000 hours in both normal and eco mode.
03
Extended color
Up to 170% REC.709 color triangle coverage.
04
Redundant laser banks
Redundant laser banks and power supply drivers for input signal and external power.
05
Sense X color stability
Automatic calibration keeps color stable over time.
06
Third-party integration
Web service API and a built-in web server with direct Ethernet access.

Specifications

General
ApplicationUpgrade for legacy lamp or LED Barco OverView video walls (50, 67, 70 and 80 inch)
Key FeaturesRGB laser light source, Sense X color stability, redundant laser banks, loop-through signal processing, HDCP 2.2 compliance, graphical user interface
ModelUpgrade to an RGB Laser video wall
TypeRGB Laser Upgrade
Display
Aspect Ratio16:9 and 4:3
Color GamutUp to 170% REC.709
Color TemperatureCustomized white points
Contrast Ratio1,800:1
Display TypeRear-projection DLP
Lamp LifeMore than 125,000 hours (normal and eco mode)
Lamp TypeRGB laser (Class 1 RG2)
Resolution1920 x 1080 (Full HD, 16:9); 1400 x 1050 (SXGA+, 4:3)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 × 2 in, × 1 out; HDMI 2.0 × 2 in; Ethernet × 2; USB × 2 (power only)
ProtocolsWeb service API, built-in web server
Power
Power Consumption120 W (eco); 200 W (normal)
Compliance
Warranty2 years
