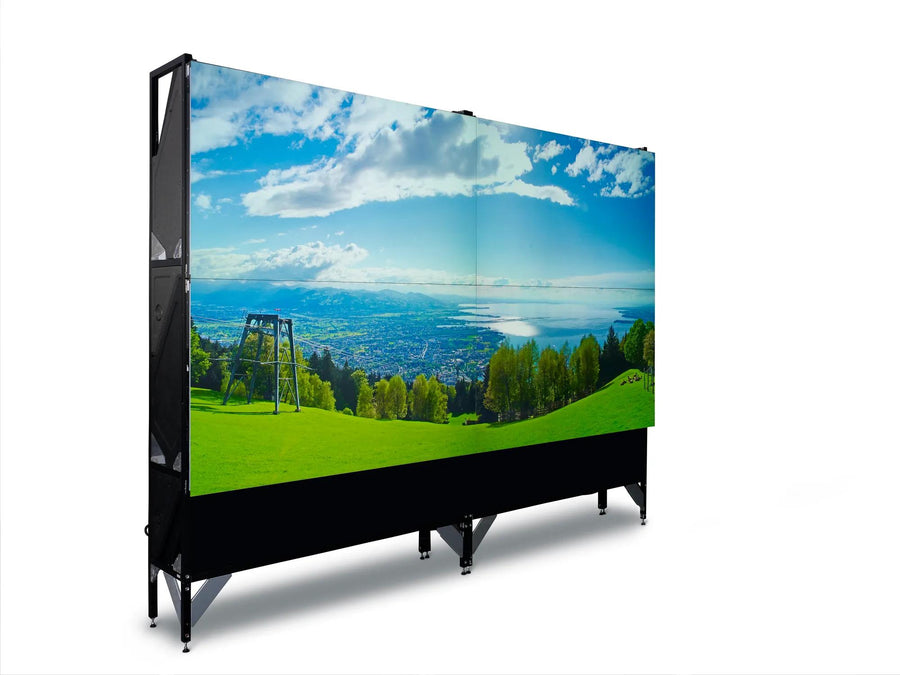

Barco OverView RGB Laser 70-inch Rear-Projection Video Wall Cube – ODL-721

The Barco OverView RGB Laser ODL-721 is a 70-inch Full HD rear-projection video wall cube for 24/7 control rooms. It uses RGB laser illumination rated for 125,000 hours, with redundant laser banks and up to 170% REC709 color. Procure.ae supplies the ODL-721 in the UAE with delivery and installation.

The ODL-721 uses RGB lasers instead of a color wheel, so each color is controlled individually, according to the manufacturer. It has a 1800:1 contrast ratio and covers up to 170% of the REC709 color triangle. The light source is rated at more than 125,000 hours in both Normal and Eco mode. Redundant laser banks, laser drivers, input signal paths and external power supply are included to support uptime. Power is 120 W in Eco mode and 200 W in Normal mode.

The ODL-721 is positioned for 24/7 control rooms and large video walls, with the manufacturer describing daylight operation as possible. It takes two DisplayPort 1.2 inputs with one output and two HDMI 2.0 inputs, all supporting 4K at 60 Hz. Two Ethernet ports serve the built-in web server and the WEB service API for third-party equipment, and HDCP 2.2 compliance is included. The projection module weighs under 63 kg and the support frame under 39 kg.
