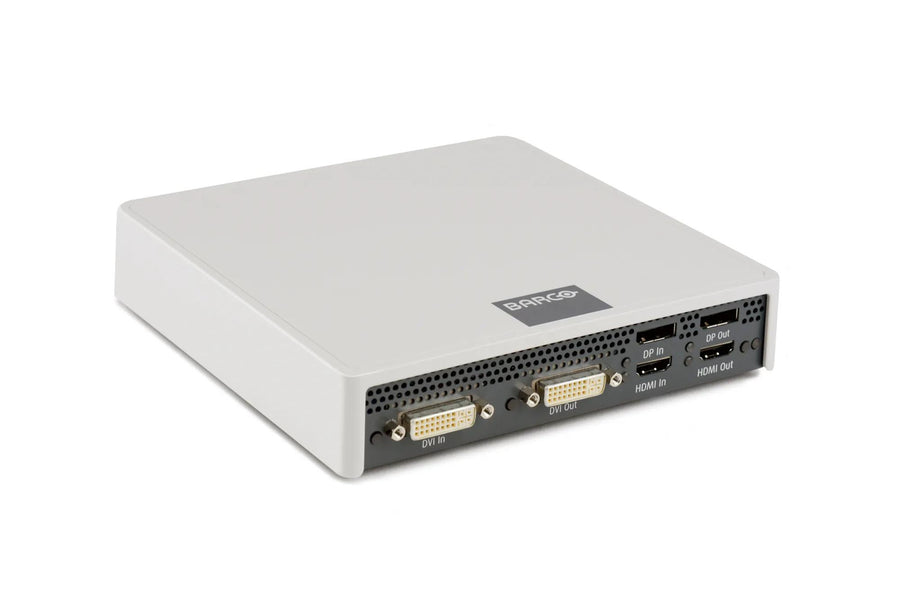

Barco NGS-D320 Lite Networked Video Encoder – NGS-D320 Lite

The Barco NGS-D320 Lite is a networked H.264 video encoder with DVI, DisplayPort and HDMI inputs, dual 1 GbE Ethernet and remote keyboard and mouse support. It handles graphics up to 4096 x 2160 and streams at 384 kbps to 12 Mbps. Procure.ae supplies the NGS-D320 Lite in the UAE.

The NGS-D320 Lite accepts Dual Link DVI, DisplayPort 1.1a and HDMI 1.4 inputs and provides matching outputs with flexible loop-through. It streams video using H.264 at 384 kbps to 12 Mbps, and handles graphics from 640 x 480 up to 2560 x 1600 at 24 to 60 Hz and 4096 x 2160 at 24 to 30 Hz. Audio is 16-bit, 48 kHz stereo, and the manufacturer supports remote keyboard and mouse with a native keymap.

The encoder suits networked TransForm N and Barco CTRL systems that distribute computer or screen content to video walls. It uses unicast or multicast (IGMP v3) with RTP and RTSP, plus DNS and NTP, and it has two 1 GbE full-duplex Ethernet connections. It mounts on an optional VESA adapter plate or a 1U rack for two devices. The FLEX model in the same range adds V2D streaming at 25 to 100 Mbps.
